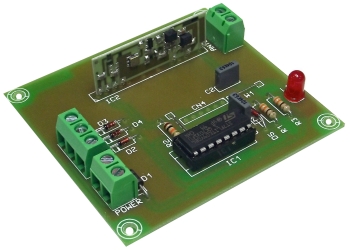

Cebek 2-Channel 100m RF Transmitter



Cebek 2-Channel 100m RF Transmitter

Specifications:
Reference TL-327
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 2
Range 100m
Consumption 20mA
Power Supply 12VDC
Dimensions 72 x 64 x 18mm
Weight 27g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-327 is a dual channel, transmitter with a range of about 100m, which incorporates receiver feedback. The Receiver and Transmitter communicate with each other every 10 seconds. Should the link be broken the receiver will automatically revert to a 'safe' setting. This combination of Receiver/Transmitter is ideal were the device under control cannot be left unattended. (i.e. The operator of a water outlet valve moves out of range the valve will automatically shut off.) It is a Group 3 transmitter and operates on a carrier frequency of 433.92MHz. This transmitter uses an exclusive single identification code. The synchronisation is done by programming the receiver to allow it to recognize identification codes for a maximum of 5 transmitters. Depending upon your application this transmitter can be paired with either a TL-615 receiver or TL-616 receiver




Related Products::
  FE-103
  FE-2

Order Code   Each
TL-327

Cebek 2-Channel 100m RF Transmitter

25.94
