Cebek 8-Message Recorder Player


Cebek TR-14 Message Recorder Player

Specifications:
Reference TR-14
Rated Power (RMS) 5W
Input Microphone Electret Microphone
Input Line Level (RCA) 30mV 56KΩ
Output Impedance 4 - 8Ω
Consumption 700mA
Power Supply 12VDC
Dimensions 124 x 72 x 30mm
Weight 92g
Technical Information > Download the Handbook for full specifications and applications

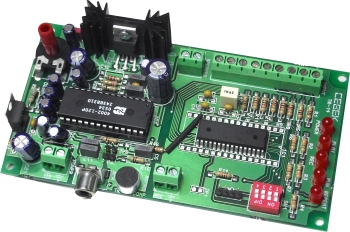

Cebek TR-14 is a professional record/playback module for up to 8 messages of 15 seconds each. (1 message of 120 seconds, 2 messages of 60 Seconds or 4 messages of 30 seconds). It has a maximum internal memory of 2 minutes, with onboard 5 watt amplifier. You have two options for recording messages, built-in microphone, or line level signal via RCA socket. The TR-14 incorporates mode "repetitive" as an option and each channel is individually activated via normally close contacts.

Related Products::
Power Supply FE-4



Order Code   Each
TR-14 Cebek 8-Message Recorder Player with 5 watt Amplifier 45.71
