| Specifications: |
|
Capacitance Range |
1.0µF to 68µF |
|
Tolerance |
±5% |
|
Working Voltage |
250V dc |
|
Operating Temperature Range |
-25ºC to 85ºC |
|
Body Colour |
Silver |
|
|
|
 |
|
|

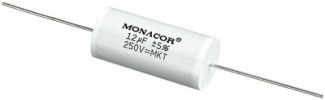

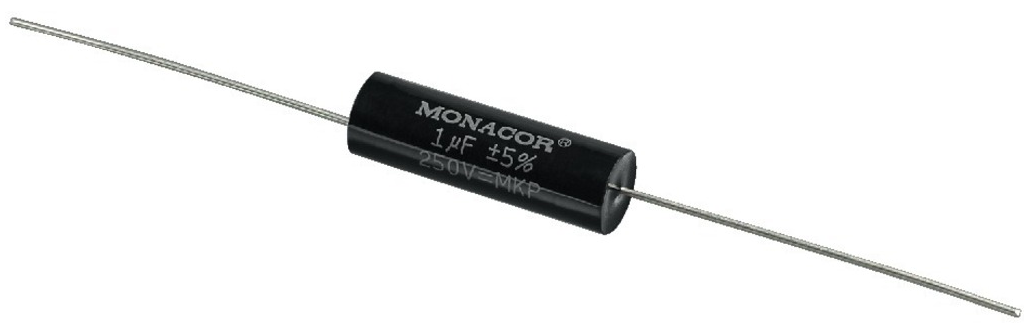

Axial lead plastic film “Audio Grade” capacitors suitable for use in
high end loudspeaker crossover networks. |
| Order Code |
|
Each |
|
| 850-105 |
1.0µF 250V (30.0mm) |
0.68 |
|
| 850-155 |
1.5µF 250V (30.0mm) |
0.84 |
|
| 850-225 |
2.2µF 250V (30.0mm) |
1.12 |
|
| 850-335 |
3.3µF 250V (30.0mm) |
1.28 |
|
| 850-475 |
4.7µF 250V (30.0mm) |
1.66 |
|
| 850-685 |
6.8µF 250V (37.5mm) |
1.92 |
|
| 850-106 |
10µF 250V (37.5mm) |
2.80 |
|
| 850-156 |
15µF 250V (37.5mm) |
4.44 |
|
| 850-226 |
22µF 250V (42.5mm) |
4.07 |
|
| 850-336 |
33µF 250V (42.5mm) |
7.31 |
|
| 850-476 |
47µF 250V (52.5mm) |
9.37 |
|
| 850-686 |
68µF 250V (52.5mm) |
13.62 |
|
|
