Opto Sensors

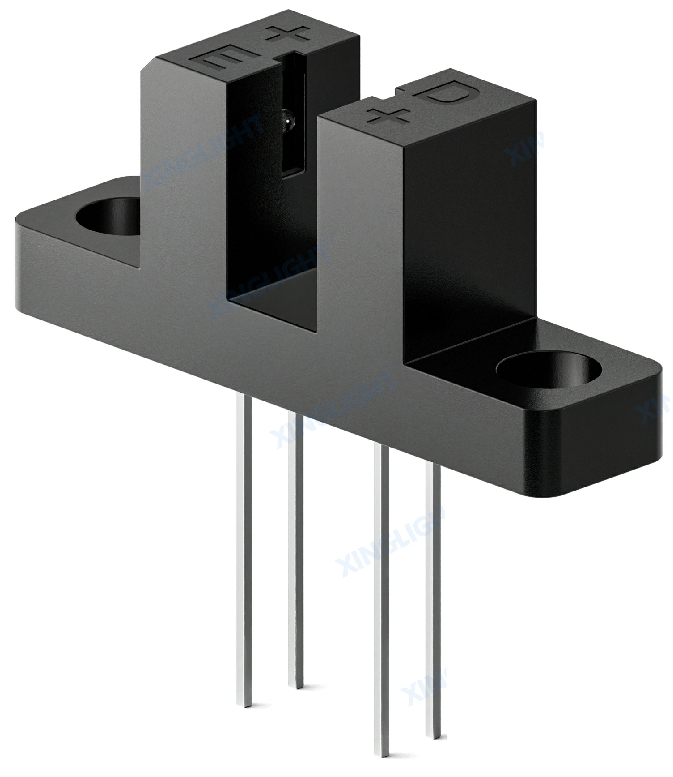

Slotted Opto Sensor

Slotted Opto Sensor, flange/PCB mounting
Specifications:
VF Max 1.2V@20mA
Radiant Power 3.6mW
Peak Wavelength nm
VCEO Max 30V
Output Current 20mA
Rise Time 8µs
Fall Time 6µs
Slot Width 3.1mm
Dimensions 6 x 10.4 x 24.4mm
The sensor integrates an infrared LED emitter and a phototransistor receiver positioned opposite each other across a narrow slot. When an object or interrupter passes through the slot, the infrared beam is blocked, causing a change in the output signal. This simple but reliable sensing method allows the device to detect movement, count rotations or determine position with high accuracy.
Order Code   Each
724-110 XL-ITR8102 Slotted Opto Sensor, flange/PCB mounting 1.30



Slotted Opto Sensor

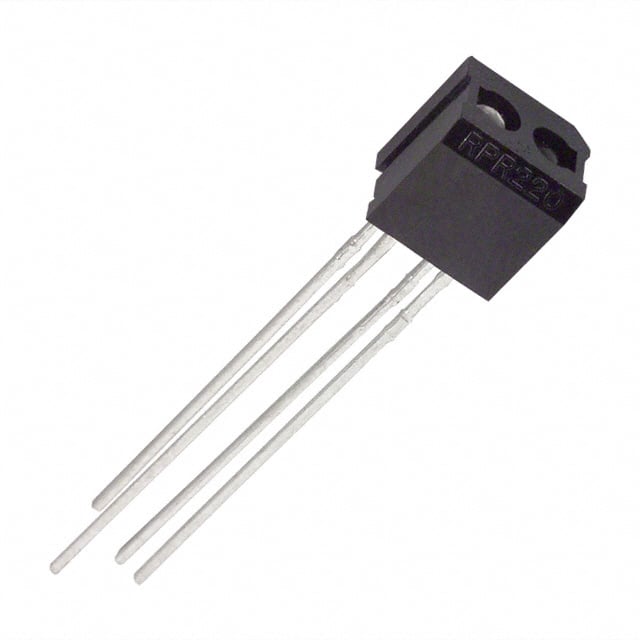

Reflective Opto Sensor, PCB Mounted
Specifications:
VF Max 1.6V@20mA
Rise Time 600ns
Peak Wavelength nm
VCEO Max 30V
Current 30mA
Response Time 10µs
Sensing Distance 6mm
Dimensions 6.4 x 4.9 x 26.5mm
This integrated reflective sensor contains both an infrared LED emitter and a phototransistor detector housed within a single package. When an object passes in front of the sensor, reflected infrared light is detected by the phototransistor, allowing the circuit to determine the presence, position, or movement of an object.
Order Code   Each
724-220 RPR-220 Reflective Opto Sensor, PCB Mounted  1.48
