3.0mm Miniature LED's

Standard Diffused

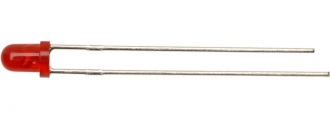

3.0mm Light Emitting Diode

3.0mm Diffused Package Standard diffused miniature light emitting diodes of 3.0mm diameter. Anode (+ve) identified by long lead.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

Red Diffused 15mA 1.7V 2.8V 5.0V 8.0@10mA 60º 660nm
Red (High Intensity) Diffused 30mA 2.0V 2.5V 5.0V 50@10mA 60º 625nm
Green Diffused 25mA 2.2V 2.5V 5.0V 32@10mA 6 565nm
Yellow Diffused 30mA 2.1V 2.5V 5.0V 32@10mA 6 590nm
Orange Diffused 30mA 2.0V 2.5V 5.0V 50@10mA 60º 625nm



Order Code   1 25+ 50+ 100+
710-310 Red LED 660nm 0.07 0.0609 0.0406 0.0365
710-330 Red LED (High Intensity) 625nm 0.12 0.0772 0.0695 0.0618
711-310 Green LED 565nm 0.09 0.058 0.0522 0.0464
712-310 Yellow LED 590nm 0.08 0.052 0.0468 0.0416
713-310 Orange LED 625nm 0.10 0.064 0.0576 0.0512



Water Clear Package

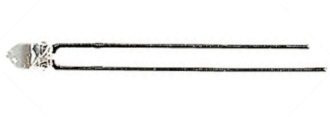

3mm Water Clear LED

Miniature high efficiency light emitting diodes of 3.0mmØ in a water clear package. This range is intensity and colour matched.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

Red Clear 25mA 2.0V 2.5V 5.0V 125@10mA 50º 625nm
Green Clear 25mA 2.2V 2.5V 5.0V 80@10mA 5 565nm
Yellow Clear 30mA 2.1V 2.5V 5.0V 50@10mA 5 590nm



Order Code   1 25+ 50+ 100+
710-340 3.0mm Red LED 625nm 0.15 0.116 0.1044 0.0928
711-340 3.0mm Green LED 565nm 0.11 0.0868 0.0781 0.0694
712-340 3.0mm Yellow LED 590nm 0.11 0.0858 0.0944 0.0886



Extra Bright

High Intensity 3mm Red LED

Water Clear High Intensity 3mm Red LED

Miniature light emitting diodes of 3.0mmØ with very high luminous intensity, employing a GaAIAs dice. Available in diffused or clear packages.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

Red Diffused 30mA 1.85V 2.5V 5.0V 100@10mA 60º 660nm
Red Diffused 30mA 1.85V 2.5V 5.0V 200@10mA 60º 660nm
Red Clear 30mA 1.85V 2.5V 5.0V 500@10mA 5 660nm
Red Clear 30mA 1.85V 2.5V 5.0V 700@10mA 5 660nm



Order Code   1 25+ 50+ 100+
710-350 Red 100mcd 0.11 0.084 0.076 0.0672
710-352 Red 200mcd 0.11 0.086 0.0774 0.0688
710-360 Red 500mcd 0.11 0.084 0.076 0.0672
710-362 Red 1000mcd 0.11 0.0925 0.074 0.0592



Low Current Diffused Package

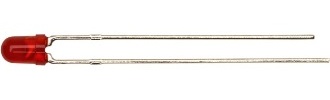

Low Current 3mm LED

Miniature high efficiency low current light emitting diodes of 3.0mmØ. Luminous intensity remains consistent down to 2mA.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

Red Diffused 25mA 1.7V 2.0V 5.0V 5@2mA 60º 625nm
Green Diffused 25mA 1.9V 2.2V 5.0V 3.2@2mA 6 565nm
Yellow Diffused 30mA 1.8V 2.1V 5.0V 3.2@2mA 6 590nm



Order Code   1 25+ 50+ 100+
710-370 Red 625nm 0.12 0.0952 0.0857 0.0762
711-370 Green 565nm 0.09 0.072 0.0648 0.0576
712-370 Yellow 590nm 0.11 0.088 0.0792 0.0704



12V Diffused Package

3mm LED

Light emitting diodes of 3.0mm diameter with inbuilt limiting resistor enabling direct connection to a 12V supply.

Colour

Style

IF Max

VF

PTOT Max

VR Max

Intensity mcd

Viewing

Angle

Wave

Length

Red Diffused 150mA 15V 310mW 5.0V 20 60º 630nm
Green Diffused 150mA 15V 310mW 5.0V 20 6 565nm
Yellow Diffused 150mA 15V 310mW 5.0V 20 6 590nm
Blue Clear 150mA 15V 310mW 5.0V 1500 6 430nm
Cold White Clear 150mA 15V 310mW 5.0V 3000 6 460nm
Warm White Clear 150mA 15V 310mW 5.0V 2000 6 460nm



Order Code   1 25+ 50+ 100+
710-385 3.0mm Standard 12V Diffused LED - Red 0.30 0.2736 0.2432 0.2128
711-385 3.0mm Standard 12V Diffused LED - Green 0.28 0.2556 0.2272 19.88
712-385 3.0mm Standard 12V Diffused LED - Yellow 0.15 0.1368 0.1216 0.1064
714-385 3.0mm Standard 12V Clear LED - Blue 0.28 0.25 0.2222 0.1945
709-386 3.0mm Standard 12V Clear LED - Cold White 0.30 0.2698 0.2398 0.2099
709-387 3.0mm Standard 12V Clear LED - Warm White 0.30 0.2698 0.2398 0.2099



White and Blue

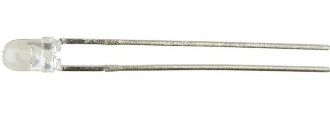

3mm White LED

Miniature high efficiency light emitting diodes of 3.0mm diameter giving a white or blue light. The blue LED’s are available in either clear or diffused bodies.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Wave

Length

White   30mA   4.3V 5.0V 750@10mA 70º 460nm
White   20mA 3.5V 3.6V 4.0V 2500@10mA 40º 460nm
Blue Diffused 30mA 4.5V 5.5V 5.0V 460@10mA 6 430nm
Blue Clear 30mA 3.7V 5.5V 5.0V 1000@10mA 3 430nm



Order Code   1 10+ 25+ 50+
709-340 White LED 7 0.16 0.1325 0.106 0.0954
709-350 White LED 4 0.19 0.1573 0.1258 0.1132
714-350 Blue LED 60º 0.20 0.1476 0.123 0.0984
714-362 Blue LED 30º 0.23 0.1935 0.1613 0.129



Bi Colour Diffused Package

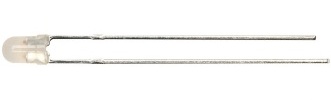

3mm Bi-Colour LED

Two Bi-Colour LED's. One housed in a 3mm milky white package containing a Red and a Green LED connected in inverse parallel. The other housed in a water clear 3.65mm body containing a White and a super bright Red LED connected in inverse parallel. The different colours are obtained by reversing the supply voltage to the LED.

Colour

Style

IF Max

VF Typ

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Red/Green Diffused 30mA 2.0 (R), 2.2 (G) 2.5V 5.0V 40(20)@20mA 60º
Red/White Water Clear 30mA 1.85 (R), 3.2 (W) 2.5 (R), 4.0 (W)   20mA 120°



Order Code   Each
715-130 3mm Red/Green Bi-Colour LED 0.32
715-134 3.65mm Red/White Bi-Colour LED 0.44



Tri Colour Diffused Package

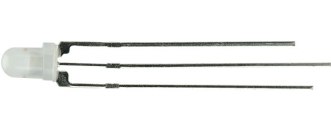

Tri-Colour 3mm LED

Miniature light emitting diodes of 3.0mm diameter in a milky white package, Tri-Colour, 3 lead, Red, Green or Yellow (both on) common cathode. And Tri-Colour, 3 lead, Red, White or Pink (both on) common cathode.

Colour

Style

IF Max

VF

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Red/Green/Yellow Diffused 30mA 2.0 (2.2)V 2.5V 5.0V 50@20mA 60º
Red/White/Pink Diffused 30mA 2.0 (2.2)V 2.5V 5.0V 50@20mA 60º



Order Code   1 25+ 50+ 100+
715-230 3.0mm Red/Green Tri-Colour LED 0.21 0.17 0.153 0.136
715-234 3.0mm Red/White Tri-Colour LED 0.39 0.3517 0.3126 0.2736
