5.0mm LED's

Standard Diffused

Standard diffused light emitting diodes of 5.0mm diameter. Anode (+ve) identified by long lead.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
Red	Diffused	15mA		2.8V		10@10mA	60º	700nm
Red (High Intensity)	Diffused	30mA		2.6V		100@10mA	60º	643nm
Green	Diffused	30mA		2.8V		30@10mA	60º	565nm
Yellow	Diffused	15mA		2.8V		50@10mA	60º	570nm
Orange	Diffused	30mA	2.0V	2.5V	5.0V	80@10mA	60º	625nm

Order Code		1	25+	50+	100+

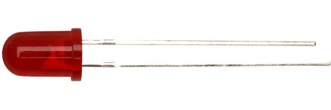

710-510	Red 700nm	0.07	0.0576	0.0384	0.0346
710-530	Red (High Intensity) 643nm	0.12	0.0998	0.0798	0.0713
711-510	Green 565nm	0.10	0.0723	0.0482	0.0432
712-510	Yellow 570nm	0.07	0.054	0.036	0.0324
713-510	Orange 625nm	0.09	0.06	0.054	0.048

Water Clear Package

High efficiency light emitting diodes of 5.0mm diameter in a water clear package. Anode (+ve) identified by long lead. This range is intensity and colour matched.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
Red	Clear	30mA	2.0V	2.5V	5.0V	200@10mA	30º	625nm
Green	Clear	30mA	2.2V	2.5V	5.0V	150@10mA	30º	565nm
Yellow	Clear	30mA	2.1V	2.5V	5.0V	80@10mA	30º	590nm
Ultra Violet	Clear	20mA	3.0V		3.8V		15º	390-400nm

Order Code		1	25+	50+	100+

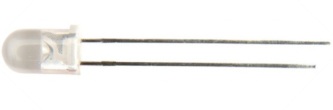

710-540	Red 625nm	0.09	0.072	0.0648	0.0576
711-540	Green 565nm	0.11	0.09	0.081	0.072
712-540	Yellow 590nm	0.11	0.089	0.0801	0.0712
715-590	Ultra Violet 390-400nm	0.43	0.3204	0.2136	0.1922

Extra Bright

Extra Bright 5mm LED

A range of light emitting diodes of 5.0mm diameter with very high luminous intensity, employing a GaAIAs dice. Anode (+ve) identified by long lead.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
Red	Clear	30mA	1.85V	2.5V	5.0V	1000@20mA	30º	660nm
Red	Clear	30mA	1.85V	2.5V	5.0V	1600@20mA	30º	660nm
Red	Clear	30mA	1.85V	2.5V	5.0V	2000@20mA	30º	660nm
Red	Clear	30mA	1.85V	2.5V	5.0V	2500@20mA	30º	660nm
Green	Clear	25mA	2.2V	2.5V	5.0V	300@20mA	30º	565nm
Yellow	Clear	30mA	2.2V	2.5V	5.0V	1200@20mA	30º	589nm

Order Code		1	25+	50+	100+
710-550	Red 1000mcd	0.11	0.084	0.0756	0.0672
710-552	Red 1600mcd	0.10	0.078	0.0702	0.0624
710-554	Red 2000mcd	0.25	0.20	0.18	0.16
710-556	Red 2500mcd	0.17	0.1368	0.1026	0.0855
711-550	Green 300mcd	0.10	0.08	0.072	0.064
712-556	Yellow 1200mcd	0.26	0.2113	0.1625	0.13

Low Current Diffused Package

High efficiency low current light emitting diodes of 5.0mm diameter. Luminous intensity remains consistent down to 2mA.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
Red	Diffused	30mA	1.7V	2.0V	5.0V	5@2mA	60º	625nm
Green	Diffused	25mA	1.9V	2.2V	5.0V	3.2@2mA	60º	565nm
Yellow	Diffused	30mA	1.8V	2.1V	5.0V	3.2@2mA	60º	590nm

Order Code		Each
710-570	5.0mm Red LED 625nm	0.09
711-570	5.0mm Green LED 565nm	0.08
712-570	5.0mm Yellow LED 590nm	0.12

12V LED's

Light emitting diodes of 5.0mm diameter with inbuilt limiting resistor enabling direct connection to a 12V supply.

Colour	Style	IF Max	VF	PTOT Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
Red	Diffused	150mA	15V	310mW	5.0V	130@10mA	60º	630nm
Green	Diffused	150mA	15V	310mW	5.0V	80@10mA	60º	565nm
Yellow	Diffused	150mA	15V	310mW	5.0V	32@10mA	60º	590nm
Orange	Clear	150mA	15V	310mW	5.0V	1200@10mA	60º
Blue	Clear	150mA	15V	310mW	5.0V	1500@10mA	60º
Cold White	Clear		15V			1200@10mA	60º
Warm White	Clear		15V			1500@10mA	60º

Order Code		Each
710-585	Red 630nm (Diffused Package)	0.21
711-585	Green 565nm (Diffused Package)	0.20
712-585	Yellow 590nm (Diffused Package)	0.24
713-586	Orange	0.30
714-586	Blue	0.30
709-586	Cold White	0.30
709-587	Warm White	0.35

White High Intensity

Miniature high efficiency light emitting diodes of 5.0mm diameter giving a white light. Anode (+ve) identified by long lead.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
White	Diffused	30mA		4.0V	5.0V	100@20mA	30º	460nm
White	Clear	30mA		4.0V	5.0V	1500@30mA	30º	460nm
White	Clear			4.2V	5.0V	3000@20mA	15º	460nm
White	Clear			4.2V	5.0V	1500@20mA
White	Clear			2.8V	3.4V	6300@20mA	35º	460nm

Order Code		Each

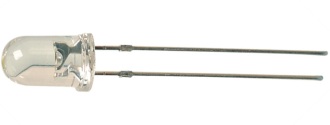

709-550	White 30º	0.27
709-552	White 30º	0.33
709-553	Warm White	0.38
709-554	White 15º	0.43
709-556	White 35º	0.50

Blue High Intensity

Miniature high efficiency light emitting diodes of 5.0mm diameter giving a blue light, available in either clear or diffused bodies. Anode (+ve) identified by long lead.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle	Wave Length
Blue	Clear	30mA		5.5V	5.0V	100@20mA	16º	430nm
Blue	Diffused	30mA		4.0V	5.0V	100@20mA	20º	465nm
Blue	Diffused	30mA		4.0V	5.0V	450@20mA	20º	468nm
Blue	Clear	30mA		4.0V	5.0V	1000@20mA	16º	465nm
Blue	Clear	50mA	3.6V	4.2V	5.0V	12000@30mA	15º	470nm
Blue	Clear	30mA		4.0V		2200@20mA	15º	470nm

Order Code		1	10+	25+	50+
714-552	Blue LED 16º	0.75	0.6732	0.5984	0.5236
714-554	Blue LED 20º	0.44	0.3915	0.348	0.261

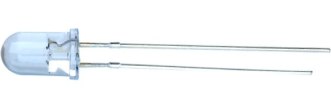

714-560	Blue LED 20º (Diffused)	0.76	0.6804	0.6048	0.5292
714-562	Blue LED 16º	0.61	0.484	0.4356	0.3872
714-569	Blue LED 15º	0.43	0.3834	0.3485	0.2788
714-568	Blue LED 15º	0.90	0.81	0.72	0.63

Bi Colour Diffused Package

Light emitting diodes of 5.0mm diameter in a milky white package. Bi-Colour, 2 lead, Red or Green by reversing connections.

Colour

Style

IF Max

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Red/Green

Diffused

30mA

2.0 (2.2)V

2.5V

5.0V

40(20)@20mA

60º

Order Code				Each
715-150	Bi-Colour LED			0.28

Tri Colour Diffused Package

5mm Tri-Colour 3-lead light emitting diodes. Red/Green, Yellow (both on) common anode. Red/Warm White common anode.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @IF mcd	Viewing Angle
Red/Green/Yellow	Diffused	30mA	2.0 (2.2)V	2.5V	5.0V	90(70)@20mA	60º
Red/Green	Clear	30mA	2.0 (2.2)V	2.5V	5.0V
Red/White	Clear	30mA	1.8/2.6V	2.6/3.6V	-	4200@20mA	30°

Order Code		Each
715-250	Tri-Colour LED (Red/Green/Yellow)	0.17
715-252	Tri-Colour LED (Red/Green)	0.93
715-254	Tri-Colour LED (Red/Warm-White)	0.65

Rainbow Colour Cycling Clear Package

Innovative, eye catching colour change LED. The 5mm LED contains an inbuilt IC that causes the LED to cycle through the red, green and blue elements individually and then in combination. Colour cycles at a frequency of 1.5Hz. Clear lens.

Colour

Style

IF Max

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Red/Green/Blue

Clear

30mA

4.5V

6.0V

5.0V

1200@30mA (Red)

3000@30mA (Green)

1500@30mA (Blue)

30º

Order Code		1	25+	50+	100+

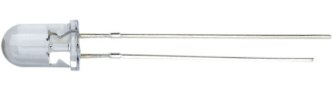

715-580	Rainbow LED	0.56	0.4944	0.445	0.3955

Yellow Candle Flickering Clear Package

The 5mm LED contains an inbuilt IC that gives the appearance of a candle flame flickering. Clear lens.

Colour

Style

IF Max

VF Max

VR Max

Intensity

@IF mcd

Viewing

Angle

Yellow

Clear

30mA

2.5V

3.3V

5.0V

4500-5800mcd@20mA

30º

Order Code		1	25+	50+	100+
715-584	Yellow Candle Effect LED	0.40	0.3338	0.267	0.2403

Flashing Diffused Package

Light emitting diodes of 5.0mm diameter with an inbuilt circuit to flash continuously at 3Hz. Supply voltage 9 to 12Vdc.

Colour	Style	IF Max	VF	VF Max	VR Max	Intensity @VF mcd	Viewing Angle	Wave Length
Red	Diffused	56mA	9-12V	13.5V	0.5V	8@9V	60º	700nm
Red (High Intensity)	Diffused	56mA	9-12V	13.5V	0.5V	80@9V	60º	625nm
Green	Diffused	56mA	9-12V	13.5V	0.5V	32@9V	60º	565nm
Yellow	Diffused	56mA	9-12V	13.5V	0.5V	32@9V	60º	590nm

Order Code		1	25+	50+	100+
715-550	Red 700nm	0.65	0.5884	0.523	0.4577
715-551	Red (High Intensity) 625nm	0.53	0.4739	0.4213	0.3686
715-552	Green 565nm	0.64	0.568	0.5112	0.4544
715-554	Yellow 590nm	0.60	0.5298	0.4768	0.4238

Flashing Clear Package

High brightness 5mm LED's in a water clear package. Contains an IC that produces a continuous blink at a frequency of 1.5Hz. Suitable for a range of lighting and indication applications.

Colour	Style	IOP Max	VF	VF Max	IOL Max	Intensity @20mA mcd	Viewing Angle	Wave Length
Red	Clear	40mA	5V	6V	10mA	1560	30º	625nm
Yellow	Clear	40mA	5V	6V	10mA	1560	30º	590nm
Green	Clear	40mA	5V	6V	10mA	4200	30º	525nm
Blue	Clear	40mA	5V	6V	10mA	3000	30º	470nm
White	Clear	40mA	5V	6V	10mA	3000	30º	460nm

Order Code		1	25+	50+	100+
715-562	Flashing Red 625nm	0.28	0.22	0.198	0.176
715-564	Flashing Yellow 590nm	0.28	0.22	0.198	0.176
715-565	Flashing Green 525nm	0.28	0.22	0.198	0.176
715-566	Blue Flashing 470nm	0.28	0.22	0.198	0.176
715-569	White Flashing 460nm	0.50	0.40	0.36	0.32
