¼" Stereo Jack Plugs

6.35 Stereo Plastic Jack plug 6.35 Stereo Plastic Jack Line Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Black Plastic
Maximum Cable 6mmØ

High quality stereo 6.35mm jack plug and line socket with a soft black plastic cover and integral cable strain relief.
Order Code   Each
075-010 6.35 Stereo Plastic Jack plug 0.36
075-210 6.35 Stereo Plastic Jack Line Socket 0.40



6.35 Stereo Metal Jack Line Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 6mmØ

High quality stereo 6.35mm jack plug and line socket with metal cover and protective cable spring.
Order Code   Each
075-040 6.35 Stereo Metal Jack Plug 1.13
075-240 6.35 Stereo Metal Jack Line Socket 1.05



6.35mm Stereo Metal Locking Line Socket
Specifications:
Contacts Gold Plated
Connection Solder
Body Metal
Maximum Cable 6mmØ

High quality stereo 6.35mm jack socket with locking mechanism, metal cover, collet type cable clamp and protective boot.
Order Code   Each
075-250 6.35 Stereo Metal Locking Line Socket 4.54



6.35 Stereo Metal Jack Plug Strain Relief - Black
Specifications:
Contacts Gold Plated
Connection Solder
Body Metal
Maximum Cable 6mmØ

High quality stereo 6.35mm jack plug with metal cover, collet type cable clamp and protective boot.
Order Code   1 10+ 25+
075-050 6.35 Stereo Metal Jack Plug Strain Relief - Black 1.58 1.422 1.264

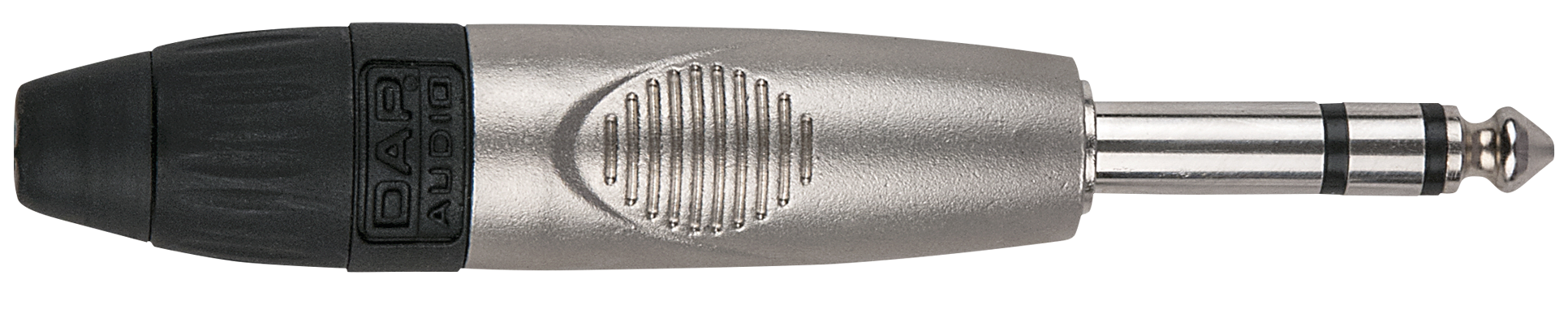

DAP X-Type 6.35 Stereo Metal Jack plug Silver Housing
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal (Black)
Maximum Cable 6mmØ

High quality DAP Audio metal body Stereo 6.35mm jack plug. With integral collet type cable clamp and protective boot. Incorporating a black identification marker.
Order Code   1 10+ 25+
075-060 DAP X-Type 6.35 Stereo Metal Jack plug Silver Housing 1.62 1.458 1.296

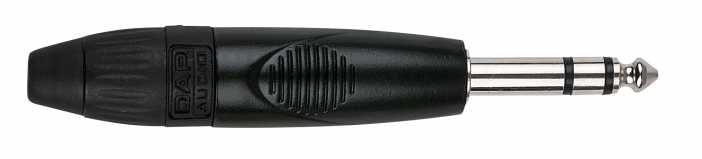

DAP X-Type 6.35 Stereo Metal Jack plug Black Housing
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal (Black)
Maximum Cable 6mmØ

High quality DAP Audio black metal body Stereo 6.35mm jack plug. With integral collet type cable clamp and protective boot. Incorporating a black identification marker.
Order Code   1 10+ 25+
075-061 DAP X-Type 6.35 Stereo Metal Jack plug Black Housing  1.62 1.458 1.296



DAP X-Type ID Ring for Stereo Jack plugs
Specifications:
Colour Various
Width 8.0mm
Diameter 20.3mm

Coloured rings for cable identification, fit DAP mono 075-060 and 075-061 metal body Stereo 6.35mm jack plugs.
Order Code   Each
075-062 DAP X-Type ID Ring for Stereo plug - Red    0.11
075-063 DAP X-Type ID Ring for Stereo plug - Orange    0.11
075-064 DAP X-Type ID Ring for Stereo plug - Yellow   0.11
075-065 DAP X-Type ID Ring for Stereo plug - Green   0.11
075-066 DAP X-Type ID Ring for Stereo plug - Blue  0.11



Dap Audio Black Bodied Stereo Jack Plug (Black)
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal (Black)
Maximum Cable 6mmØ

High quality DAP Audio black metal body Stereo 6.35mm jack plug. With integral collet type cable clamp and protective boot. Incorporating a black identification marker.
Order Code   Each
075-070 Black 6.35 Stereo Metal Jack Plug Strain Relief - Black 1.35



Dap Audio Black Bodied Stereo Jack Plug (Green)
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal (Black)
Maximum Cable 6mmØ

High quality DAP Audio black metal body Stereo 6.35mm jack plug. With integral collet type cable clamp and protective boot. Incorporating a green identification marker.
Order Code   Each
075-075 Black 6.35 Stereo Metal Jack Plug Strain Relief - Green 0.88



Dap Audio Black Bodied Stereo Jack Plug (Blue)
Specifications:
Contacts Nickel Plated
Connection Solder
Body Metal (Black)
Maximum Cable 6mmØ

High quality DAP Audio black metal body Stereo 6.35mm jack plug. With integral collet type cable clamp and protective boot. Incorporating a blue identification marker.
Order Code   Each
075-076 Black 6.35 Stereo Metal Jack Plug Strain Relief - Blue 0.88



Neutrik NP3X 6.35 Stereo Metal Jack Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Maximum Cable 7mmØ


Neutrik Connecting the World
Neutrik High quality stereo 6.35mm jack plug with metal cover and protective cable boot.
Order Code   1 10+
075-088 Neutrik NP3X 6.35 Stereo Metal Jack Plug 4.00 3.67



Stereo Jack Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Maximum Cable 6mmØ

Stereo 6.35mm 90º jack plug with integral cable clamp.
Order Code   1 10+
075-140 Stereo 6.35 Metal Jack Plug - 90° 1.13 1.0184

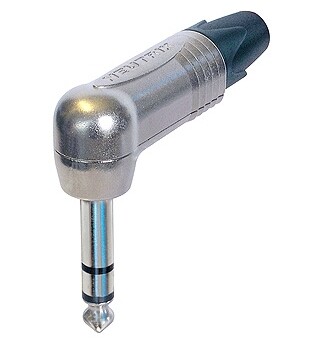

Neutrik NP3RX 6.35 Stereo Metal Jack Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Maximum Cable 7mmØ


Neutrik Connecting the World
Neutrik High quality stereo 90° 6.35mm jack plug with metal cover and protective cable boot.
Order Code   1 10+
075-188 Neutrik NP3RX 6.35 Stereo Metal Jack Plug - 90°  5.98 5.34



Stereo Chassis Socket
Specifications:
Model CL1220A
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out mmØ
Dimensions mm
Black 6.35mm high quality switched stereo chassis socket with self wiping contacts and solder terminals.
Order Code   Each
075-520 6.35 Stereo Switched Chassis Socket 1.41



Stereo Chassis mounting 6.35mm Jack Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out 9.5mmØ
Dimensions 35 x 16mm
Stereo enclosed switched 6.35mm chassis socket.
Order Code   1 10+ 25+
075-522 6.35 Stereo Switched Chassis Socket 0.62 0.51 0.41

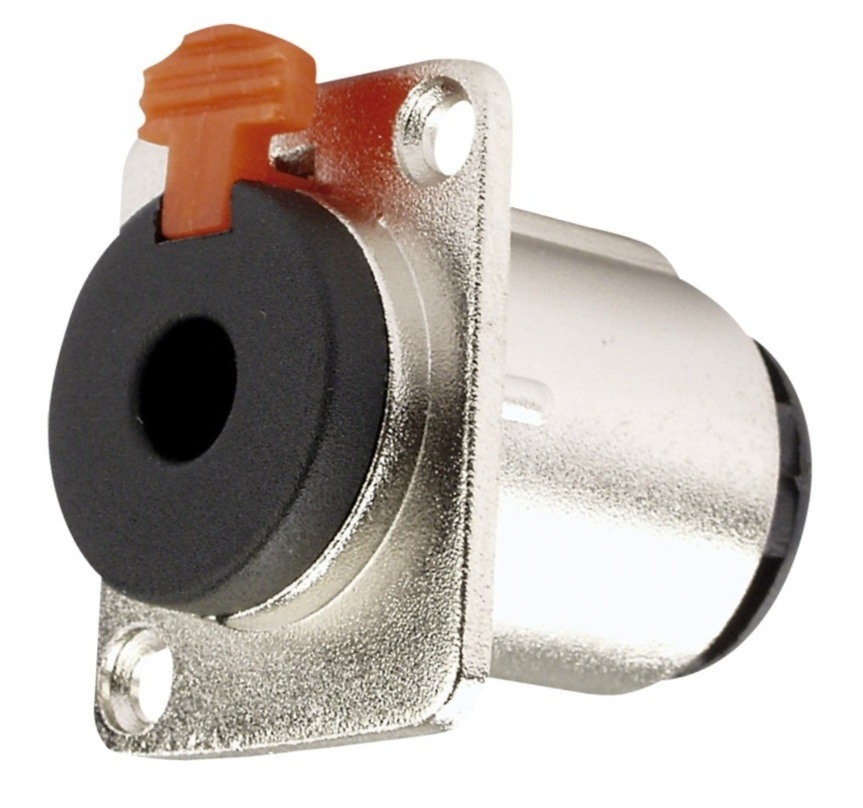

DAP Stereo 6.35mm locking chassis socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out mmØ


Professional stereo 6.35mm locking 6.35mm chassis socket. (31 x 26mm)
Order Code   Each
075-589 DAP Stereo 6.35mm locking chassis socket 3.75



Neutrik NJ3FP6C 6.35 Chassis socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out mmØ

Neutrik Connecting the World
Neutrik professional stereo 6.35mm locking 6.35mm chassis socket. (31 x 26mm)
Order Code   Each
075-588 Neutrik NJ3FP6C 6.35 Chassis socket 5.31



6.35 Stereo Switched Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out mmØ
Dimensions mm
Stereo 6.35mm chassis socket with integral switch and PCB mounting.
Order Code   1 10+ 25+
075-510 6.35 Stereo Switched Chassis Socket 0.44 0.36 0.29

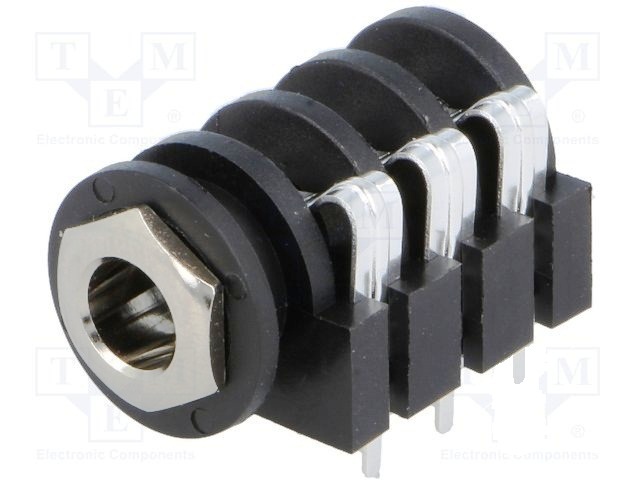

Stereo Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Panel Cut-out 10mmØ
Dimensions mm
High quality stereo 6.35mm jack socket. Plastic body with self wiping contacts. chrome nut. Solder terminals. PCB or chassis mount.
Order Code   Each
075-515 6.35 Stereo Switched Chassis Socket (Chrome Nut) 0.91

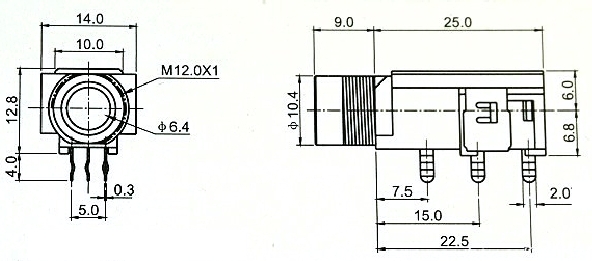

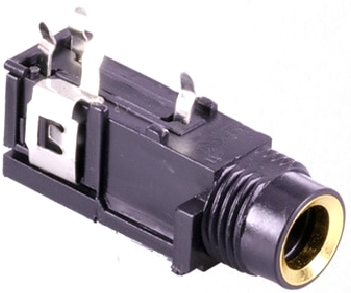

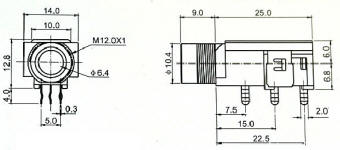

Stereo PCB Socket PCB stereo socket
Specifications:
Contacts Nickel-plated
Connection PCB
Body Plastic
Panel Cut-out 11mmØ
Dimensions mm
Stereo 6.35mm jack socket, plastic body with self wiping gold plated contacts and PCB  mounting contacts. Ideal replacement for most makes of active speaker amplifier boards. (Supplied with lock nut)
Order Code   Each
075-518 6.35 Stereo Slimline Chassis Socket - PCB 4 pin 1.73
