6 Way Dual In Line Socket 8 Way Dual In Line Socket 14 Way Dual In Line Socket 16 Way Dual In Line Socket 20 Way Dual In Line Socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Pitch 2.54mm

IC Extraction Tool > IC Extraction Tool
Standard open frame, dual wipe stamped and formed contact IC Sockets.
Order Code   Each

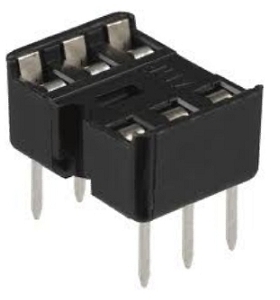

110-060 6 0.3" Way Dual In Line Socket - Stamped Pin 0.07

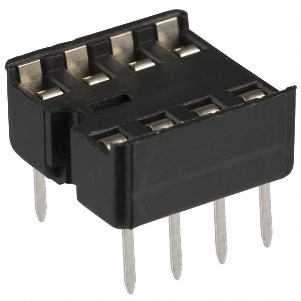

110-080 8 0.3" Way Dual In Line Socket - Stamped Pin 0.05

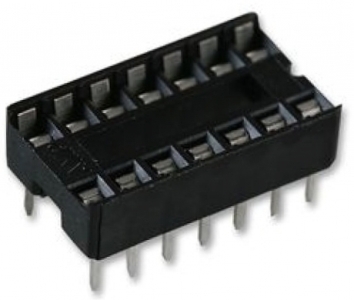

110-140 14 0.3" Way Dual In Line Socket - Stamped Pin 0.14

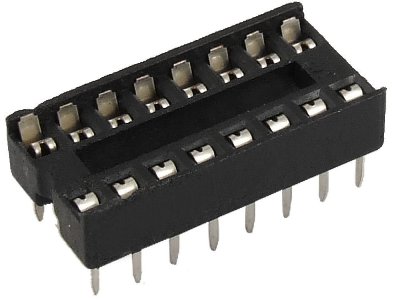

110-160 16 0.3" Way Dual In Line Socket - Stamped Pin 0.19
110-180 18 0.3" Way Dual In Line Socket - Stamped Pin 0.12

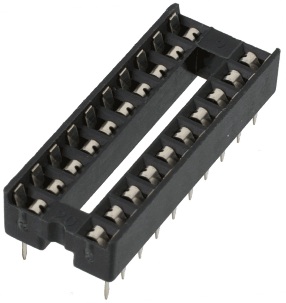

110-200 20 0.3" Way Dual in Line Socket Stamped Pin 0.18
110-241 24 0.3" Way Dual in Line Socket Stamped Pin 0.12
110-240 24 0.6" Way Dual in Line Socket Stamped Pin 0.12
110-281 28 0.3" Way Dual in Line Socket - Stamped Pin 0.23
110-280 28 0.6" Way Dual in Line Socket - Stamped Pin 0.13
110-320 32 0.6" Way Dual in Line Socket - Stamped Pin 0.29
110-400 40 0.6" Way Dual In Line Socket - Stamped Pin 0.39



Turned Pin IC Sockets
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Pitch 2.54mm

IC Extraction Tool > IC Extraction Tool
High quality open frame, turned pin with 4 finger contact IC sockets.
Order Code   Each
110-082 8 0.3" Way Dual In Line Socket - Turned Pin 0.19
110-142 14 0.3" Way Dual In Line Socket - Turned Pin 0.34
110-162 16 0.3" Way Dual In Line Socket - Turned Pin 0.55
110-182 18 0.3" Way Dual In Line Socket - Turned Pin 0.41
110-202 20 0.3" Way Dual In Line Socket - Turned Pin 0.49
110-243 24 0.3" Way Dual In Line Socket - Turned Pin 0.32
110-242 24 0.6" Way Dual In Line Socket - Turned Pin 0.35
110-283 28 0.3" Way Dual In Line Socket - Turned Pin 0.67
110-282 28 0.6" Way Dual In Line Socket - Turned Pin 0.72
110-322 32 0.6" Way Dual in Line Socket - Turned Pin 0.43
110-402 40 0.6" Way Dual In Line Socket - Turned Pin 0.83

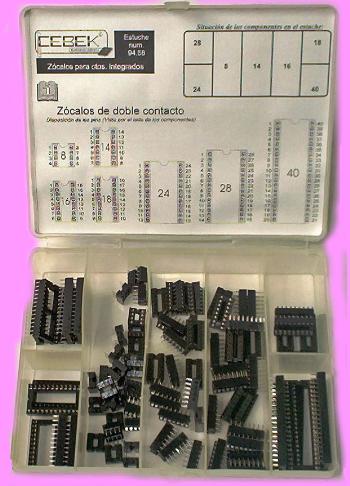

Box of IC Sockets
Contents:
8-Pin 30 Pieces
14-Pin 18 Pieces
16-Pin 20 Pieces
18-Pin 6 Pieces
24-Pin 5 Pieces
28-Pin 4 Pieces
40-Pin 4 Pieces
A set of 89 stamped pin IC bases. Supplied in a 7 compartment storage box with hinged lid.
Order Code   Each
C-9458 89 Assorted IC Bases 8.72



Specifications:
Contacts Nickel Plated
Connection Solder
Body Plastic
Pitch 2.54mm

Turned pin strip. High quality contacts in a single row of 20 double ended pins. Pins have round cross section.
Order Code   1 25+ 50+
111-140 20 Way Double Ended Strip - Turned Pin 0.99 0.891 0.792



20 Way SIL Socket Strip - Turned Pin
Specifications:
Contacts Nickel Plated
Connection Solder
Body Plastic
Pitch 2.54mm

Turned pin socket strip. High quality 4 finger contacts in a single row of 20 sockets.
Order Code   Each
111-540 20 Way SIL Socket Strip - Turned Pin 0.52

Zif Sockets

Zero insertion Force Socket (ZIF)
Specifications:
Contacts Nickel-plated
Connection Solder
Body Plastic
Pitch 2.54mm

Zero Insertion Force (ZIF) Sockets which will accept IC's with pin spacing between 0.3 to 0.6"
Order Code   Each
110-245 24 Way Universal Ziff Socket (0.6")  1.98
110-285 28 Way Universal Zif Socket (0.3 - 0.6") 1.88
110-325 32 Way Universal Zif Socket (0.3 - 0.6") 2.25
110-405 40 Way Universal Zif Socket (0.3 - 0.6") 2.58
