PCB Pin Headers

10 Way Single Row Header - Straight
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A simple low cost single row PCB inter-board connection system for making multi-way and board to board connections. All connectors are end to end and side to side stackable, with a square cross sectional profile.
Order Code   1 25 50+
111-103 3 Way Single Row Header - Straight 0.05 0.029 0.0232
111-104 4 Way Single Row Header - Straight 0.04 0.025 0.02
111-105 5 Way Single Row Header - Straight 0.05 0.031 0.025
111-106 6 Way Single Row Header - Straight 0.07 0.0418 0.0334
111-108 8 Way Single Row Header - Straight 0.09 0.0555 0.0444
111-110 10 Way Single Row Header - Straight 0.11 0.0783 0.0626
111-136 36 Way Single Row Header - Straight 0.31 0.25 0.225



4 Way Single Row Header - R/Angled
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A simple low cost single row, right angled PCB inter-board connection system for making multi-way and board to board connections. All connectors are end to end and side to side stackable.
Order Code   1 25+ 50+
111-303 3 Way Single Row Header - R/Angled 0.07 0.041 0.0328
111-304 4 Way Single Row Header - R/Angled 0.083 0.069 0.55
111-305 5 Way Single Row Header - R/Angled 0.08 0.05 0.04
111-310 10 Way Single Row Header - R/Angled 0.21 0.13 0.11
111-336 36 Way Single Row Header - R/Angled 0.46 0.37 0.333



5 Way Double Row Header - Straight
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A simple low cost double row PCB inter-board connection system for making multi-way and board to board connections. All connectors are end to end and side to side stackable, with a square cross sectional profile.
Order Code   1 25+ 50+
111-203 3 Way Double Row Header - Straight 0.07 0.044 0.035
111-204 4 Way Double Row Header - Straight 0.06 0.042 0.035
111-205 5 Way Double Row Header - Straight 0.08 0.055 0.047
111-210 10 Way Double Row Header - Straight 0.10 0.062 0.05
111-236 36 Way Double Row Header - Straight 0.58 0.36 0.29



4 Way Double Row Header - R/Angled
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A simple low cost double row, right angled PCB inter-board connection system for making multi-way and board to board connections. All connectors are end to end and side to side stackable.
Order Code   1 25+ 50+
111-404 4 Way Double Row Header - R/Angled 0.12 0.075 0.06
111-405 5 Way Double Row Header - R/Angled 0.12 0.09 0.06
111-410 10 Way Double Row Header - R/Angled 0.28 0.18 0.14
111-436 36 Way Double Row Header - R/Angled 0.98 0.7876 0.7088



Closed Jumper Link - Black
Specifications:
Contacts Gold-plated
Connection None
Body Plastic
Pitch 2.54mm

Miniature jumper link for use with single or double row pin headers. This jumper link is sealed, available in four colours.
Order Code   Each
111-920 Closed Jumper Link - Black 0.04
111-922 Closed Jumper Link - Red 0.08
111-926 Closed Jumper Link - Blue 0.04
111-929 Closed Jumper Link - White 0.04



Open Jumper Link - Black
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

Miniature jumper link for use with single or double row pin headers. This jumper is open at the top for test point access, available in four colours.
Order Code   1 25+ 50+
111-910 Open Jumper Link - Black 0.04 0.032 0.024
111-912 Open Jumper Link - Red 0.04 0.032 0.024
111-916 Open Jumper Link - Blue 0.04 0.032 0.024
111-919 Open Jumper Link - White 0.04 0.032 0.024



Pull Tab Jumper Link - Black
Specifications:
Contacts Gold-plated
Connection None
Body Plastic
Pitch 2.54mm

Miniature jumper link for use with single or double row pin headers. This jumper link is sealed and has a pull tab for easy use, available in four colours.
Order Code   1 25+ 50+
111-930 Pull Tab Jumper Link - Black 0.08 0.062 0.046
111-932 Pull Tab Jumper Link - Red 0.08 0.062 0.046
111-936 Pull Tab Jumper Link - Blue 0.09 0.0711 0.0474
111-939 Pull Tab Jumper Link - White 0.08 0.062 0.046



10 Way Single Row Socket - Straight
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A single row straight connection socket for connecting to Pin Headers.
Order Code   Each
111-503 3 Way Single Row Socket - Straight 0.18
111-504 4 Way Single Row Socket - Straight 0.23
111-505 5 Way Single Row Socket - Straight 0.25
111-510 10 Way Single Row Socket - Straight 0.31
111-520 20 Way Single Row Socket - Straight 0.53



Arduino Header
Specifications:
Contacts Gold-plated
Connection Solder
Body 8.5mm
Pins 15mm
Pitch 2.54mm

A single row straight connection socket for connecting to Arduino Shield PCB's. Available in 8 and 10 ways
Order Code   1 25+ 50+
111-008 8 Way Single Row Socket 0.41 - -
111-010 10 Way Single Row Socket 0.41 - -



10 Way Double Row Socket - Straight
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A double row straight connection socket for connecting to Pin Headers.
Order Code   1 25+ 50+
111-603 3 Way Double Row Socket -Straight 0.40 0.25 0.20
111-604 4 Way Double Row Socket - Straight 0.40 0.25 0.20
111-605 5 Way Double Row Socket - Straight 0.42 0.2816 0.2534
111-610 10 Way Double Row Socket - Straight 0.75 0.56 0.38



10 Way Single Row Socket - Right Angled
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A single row right angled connection socket for connecting to Pin Headers. All connectors are end to end and side to side stackable.
Order Code   Each
111-703 3 Way Single Row Socket - Right Angled 0.21
111-704 4 Way Single Row Socket - Right Angled 0.35
111-705 5 Way Single Row Socket - Right Angled 0.36
111-710 10 Way Single Row Socket - Right Angled 0.48



Double Row PCB Socket
Specifications:
Contacts Gold-plated
Connection Solder
Body Plastic
Pitch 2.54mm

A double row right angled connection socket for connecting to Pin Headers. All connectors are end to end and side to side stackable.
Order Code   1 25+ 50+
111-804 4 Way Double Row Socket - R/Angled 0.65 0.54 0.43
111-805 5 Way Double Row Socket - R/Angled 0.87 0.73 0.58
111-810 10 Way Double Row Socket - R/Angled 1.36 1.09 0.98

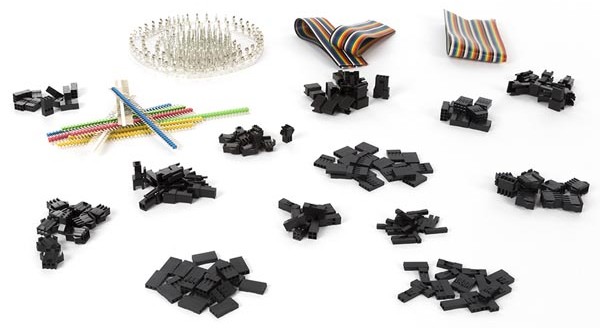

Board to Wire Connector Set
Contents:
1 Pin 2.54mm female housing 20 Pieces
2 Pin 2.54mm female housing 20 Pieces
3 Pin 2.54mm female housing 20 Pieces
2 x 2 Pin 2.54mm female housing 10 Pieces
2 x 3 Pin 2.54mm female  housing 10 Pieces
2 x 4 Pin 2.54mm female housing 10 Pieces
Male pin crimp terminal 100 Pieces
Female crimp terminal 100 Pieces
JST SM connector 2.54mm 2P male 10 Pieces
JST SM connector 2.54mm 3P male 10 Pieces
JST SM connector 2.54mm 4P male 10 Pieces
JST SM connector 2.54mm 2P female 10 Pieces
JST SM connector 2.54mm 3P female 10 Pieces
JST SM connector 2.54mm 4P female 10 Pieces
40 Pin header 2.54mm Green 2 Pieces
40 Pin header 2.54mm Yellow 2 Pieces
40 Pin header 2.54mm White 2 Pieces
40 Pin header 2.54mm Blue 2 Pieces
40 Pin header 2.54mm Red 2 Pieces
Create your own Dupont wires with this set! Choose from 1, 2, 3 2 x 2, 2 x 3 or 2 x 4 connectors and make those cables work. 361 assorted 2.54mm pitch housings and 100 male and female contacts. Kit also includes 200mm of multicoloured ribbon cable. All supplies in a handy storage box (200 x 140 x 48mm).
Order Code   Each
WCS202 Whadda Board to Wire Connector Set 15.19
