PCB Stand Offs

Self Adhesive PCB Support 5mm High Self Adhesive PCB Support 10mm High
Specifications:
Material Plastic

Dimensions (Base) 18 x 18mm
Two self adhesive, plastic PCB supports, available in two heights. 5mm and 10mm.
Order Code   Each
042-005 Self Adhesive PCB Support 5 x 18 x 18mm 0.24

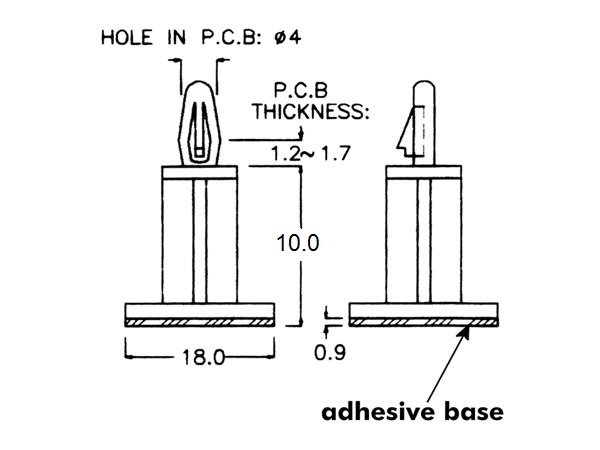

042-010 Self Adhesive PCB Support 10 x 18 x 18mm 0.23



Snap Fix PCB Support 6mm Snap Fix PCB Support 12mm Snap Fix PCB Support 18mm
Specifications:
Material Nylon


Snap fix, plastic PCB supports, available in three heights. 6, 12 and 18mm.
Order Code   1 10+ 25+

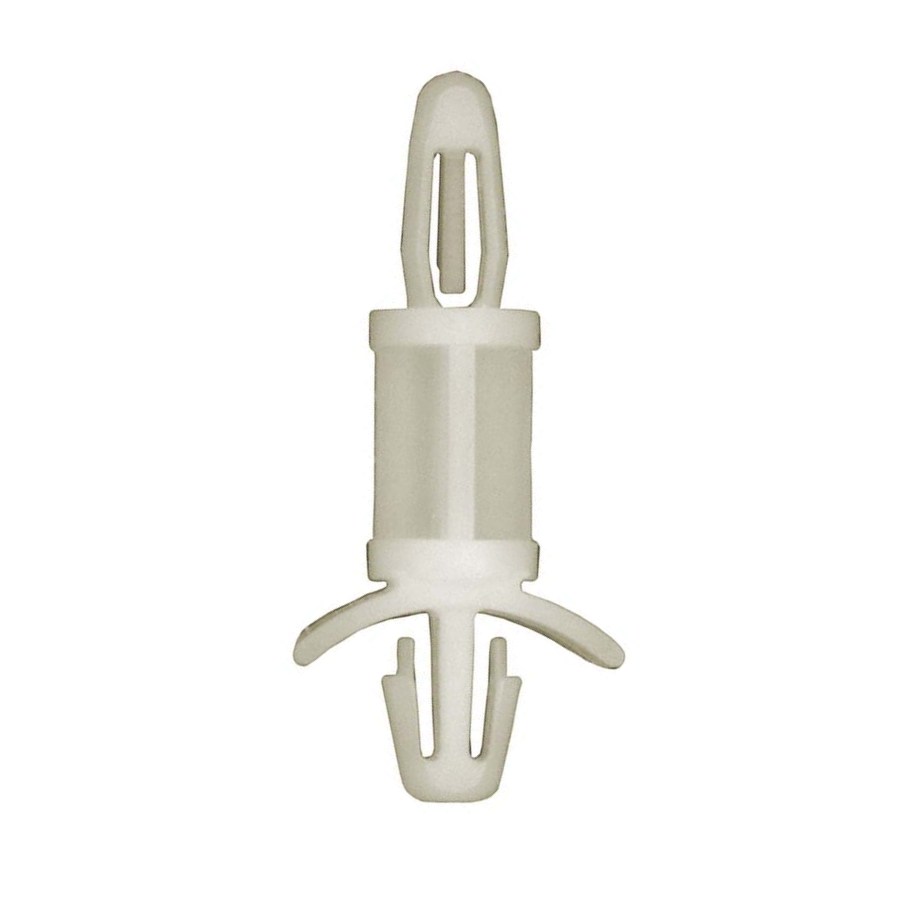

042-020 Snap Fix PCB Support 6mm 0.12 0.10 0.08

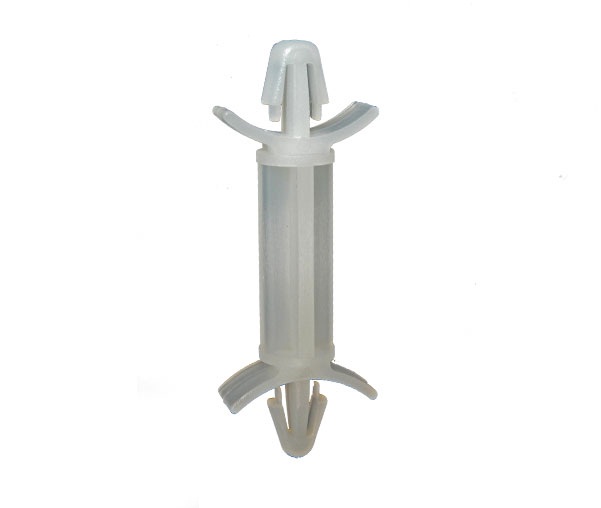

042-025 Snap Fix PCB Support 12mm 0.12 0.10 0.08

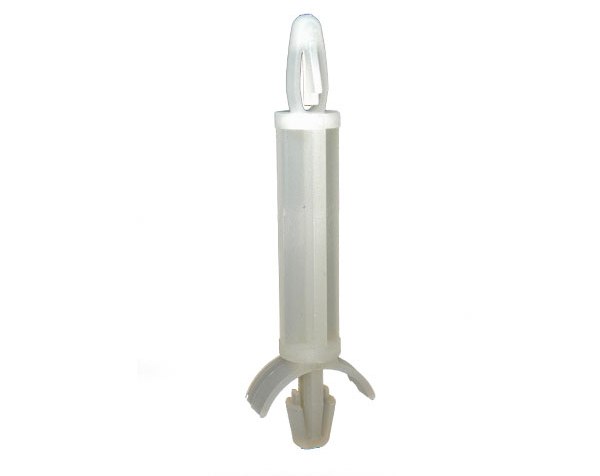

042-030 Snap Fix PCB Support 18mm 0.12 0.10 0.08

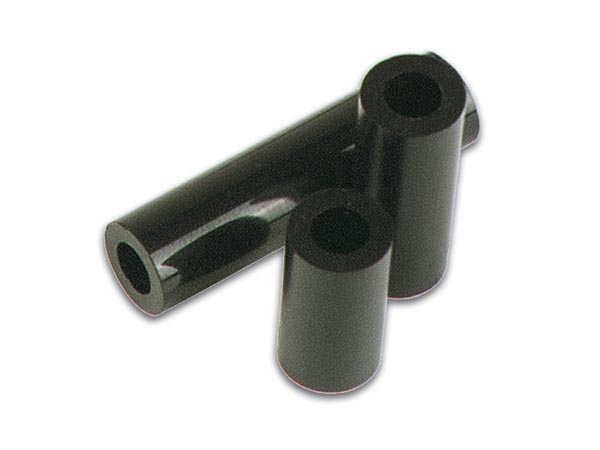

Plastic PCB Spacers
Specifications:
Material Plastic




Four different size plastic spacers, ideal for mounting printed circuit boards (PCB) or strip board. Use with M3.0 and M4.0 Bolts
Order Code   Each
042-105 Black Plastic M3 Spacer 5 x 7mmØ 0.24
042-110 Black Plastic M4 Spacer 10 x 8mmØ 0.10
042-111 Black Plastic M3 Spacer 10 x 7mmØ 0.16
042-115 Black Plastic M4 Spacer 5 x 8mmØ 0.10



M3.0 Female - Female distance pieces
Specifications:
Material Metal


M3.0 female - female distance pieces, manufactured from hexagonal bar. With internally tapped screw thread, (from either end). Use with our range of metric bolts
Order Code   1 10+ 25+
042-210 M3.0 Female Metal Distance Piece 10 x 5mmØ 0.21 0.1861 0.1654
042-215 M3.0 Female Metal Distance Piece 15 x 5mmØ 0.22 0.20 0.18
042-220 M3.0 Female Metal Distance Piece 20 x 5mmØ 0.34 0.31 0.27
042-225 M3.0 Female Metal Distance Piece 25 x 5mmØ 0.36 0.32 0.29



M3 Male - Female Metal Distance Piece
Specifications:
Material Metal


M3.0 male - female distance pieces, manufactured from hexagonal bar. With internally tapped screw thread at one end and M3.0 threaded bolt at the other.
Order Code   1 10+ 25+
042-260 M3.0 Male - Female Metal Distance Piece 10 x 5mmØ 0.22 0.20 0.18
042-265 M3.0 Male - Female Metal Distance Piece 15 x 5mmØ 0.26 0.23 0.21
042-270 M3.0 Male - Female Metal Distance Piece 20 x 5mmØ 0.27 0.24 0.22
042-275 M3.0 Male - Female Metal Distance Piece 25 x 5mmØ 0.36 0.32 0.29
042-280 M3.0 Male - Female Metal Distance Piece 30 x 5mmØ 0.40 0.36 0.32

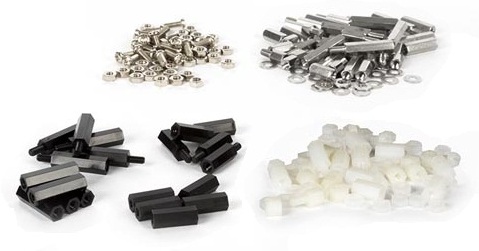

Nut, Bolt, Washer and Spacer Set
Contents:
Nylon spacers with internal thread 5mm 5 Pieces
Nylon spacers with internal + external thread 5mm + 6mm 5 Pieces
Nylon spacers with internal thread 10mm 5 Pieces
Nylon spacers with internal + external thread 10mm + 6mm 5 Pieces
Nylon spacers with internal thread 15mm 5 Pieces
Nylon spacers with internal + external thread 15mm + 6mm 5 Pieces
Nylon spacers with internal thread 20mm 5 Pieces
Nylon spacers with internal + external thread 20mm + 6mm 5 Pieces
Brass spacers with internal thread 6mm 5 Pieces
Brass spacers with internal thread 10mm 5 Pieces
Brass spacers with internal thread 15mm 5 Pieces
Brass spacers with internal thread 20mm 5 Pieces
Brass spacers with internal + external thread 6mm + 6mm 5 Pieces
Brass spacers with internal + external thread 10mm + 6mm 5 Pieces
Brass spacers with internal + external thread 15mm + 6mm 5 Pieces
Brass spacers with internal + external thread 20mm + 6mm 5 Pieces
Nickel plated brass screws  8mm 20 Pieces
Nylon screws 6mm 5 Pieces
Nylon nuts 30 Pieces
Nickel plated nuts 40  Pieces
Nickel plated brass washers 30  Pieces
M3.0 Nut, Bolt, Washer and Spacer Set. Ideal for the assembly of your electronic projects or modules into a box or case. Supplied in a handy storage case (200 x 140 x 48mm).
Order Code   Each
WCS400 Nut, Bolt, Washer and Spacer Set (205 Piece) 10.33
