Panel Lamp Holders

Red Neon Indicator Orange Neon Indicator
Specifications:
Connection Solder Tag
Panel Cut out 10mmØ
Dimensions 40 x 12mmØ



Low profile coloured neon indicators which incorporate series resistor, suitable for 230Vac operation.
Order Code   Each
708-212 Neon Panel Indicator - Red 1.11
708-213 Neon Panel Indicator - Orange 0.88



Red LED Indicator Orange LED Indicator Green LED Indicator Blue LED Indicator White LED Indicator

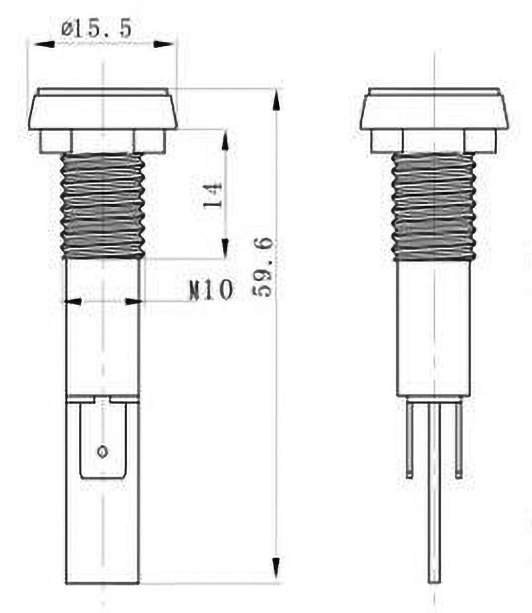

Specifications:
Connection 6.35mm Push
Panel Cut out 10mmØ
Dimensions 59.5 x 115.5mmØ


Weight 6.4g

Transformer Wiring

Coloured LED indicators which incorporate series resistor, suitable for 12Vac/ dc operation.
Order Code   Each

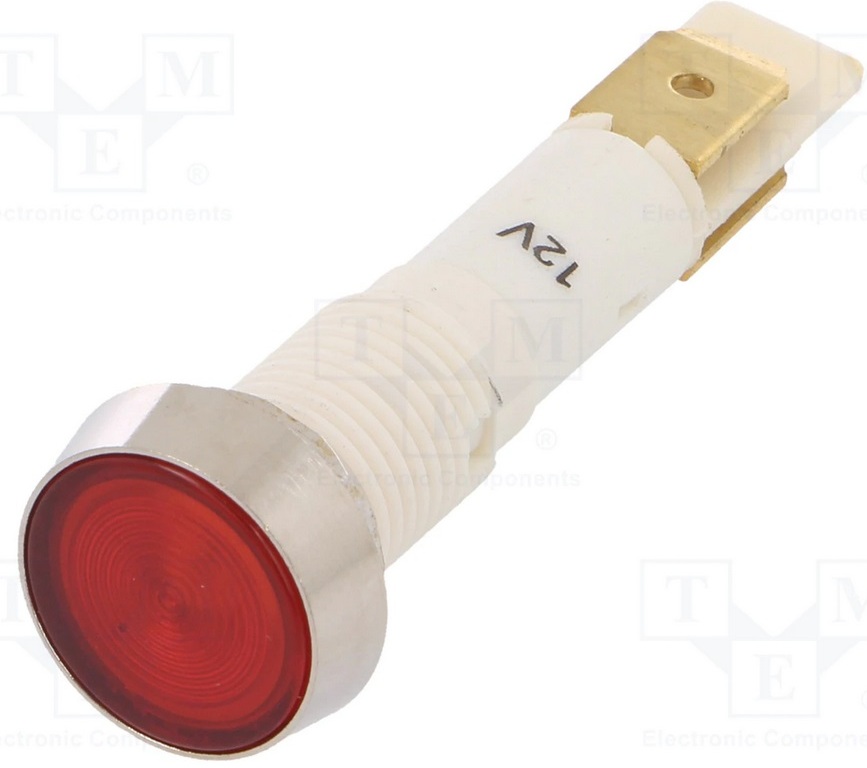

708-312 12V AC/DC LED Panel Indicator, 10mm - Red 1.40
708-313 12V AC/DC LED Panel Indicator, 10mm - Orange 1.40

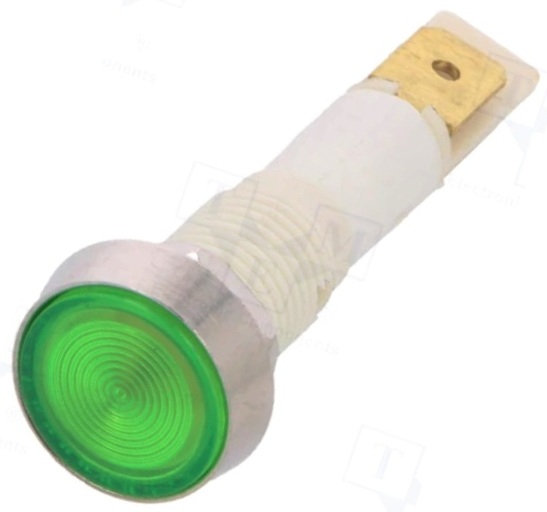

708-315 12V AC/DC LED Panel Indicator, 10mm - Green 1.40
708-316 12V AC/DC LED Panel Indicator, 10mm - Blue 1.40

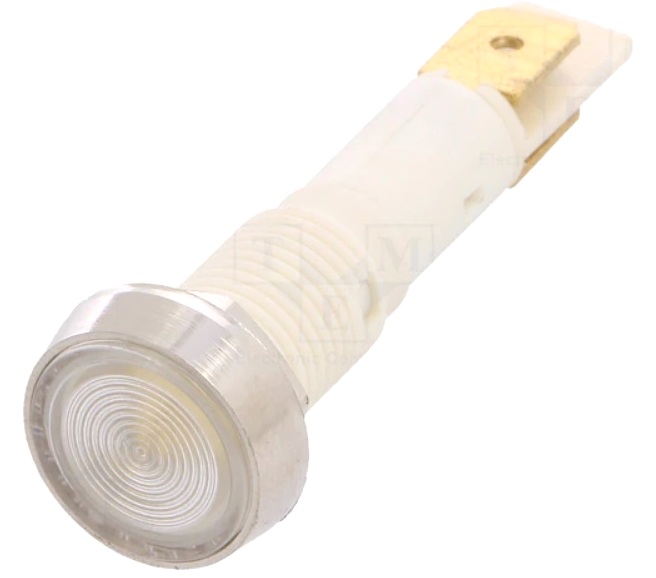

708-319 12V AC/DC LED Panel Indicator, 10mm - White 1.40
