L-Pad Attenuators

L Pad attenuators are designed to be used with low impedance (8Ω) loudspeakers, they are fitted after the amplifier and before the speaker to be attenuated. The L Pad will always give a constant load of (8Ω) to the amplifier. We stock dual gang L Pads for stereo operation and single gang Pads for mono applications.

LP-800-8 Speaker Level Control LP-800-8 Dimensions
Specifications:
Impedance 8Ω ±25%
Rotation Counter clockwise 300º ±5º
Attenuation 0dB to ∞dB
Channel Single
Power 15 Watts
Dimensions 52.5 x 40.5Ømm
LP-100-8 is a single channel (Mono) speaker L Pad Attenuator. Supplied with plastic indicator plate, control knob and mounting nuts and washers.
Order Code   Each
962-110 LP-100-8 L Pad Attenuator 12.80

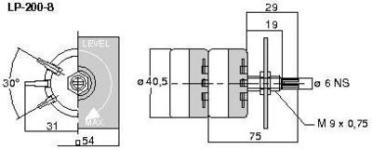

LP-200-8 Speaker Level Control LP-200-8 Dimensions
Specifications:
Impedance 8Ω ±20%
Rotation Counter clockwise 300º ±5º
Attenuation 0dB to ∞dB
Channel Dual
Power 15 Watts
Dimensions 75 x 40.5Ømm
LP-200-8 is a dual channel (Stereo) speaker L Pad Attenuator. Supplied with mounting plate control knob. mounting nuts and washers.
Order Code   Each
962-210 LP-200-8 L Pad Attenuator 18.75

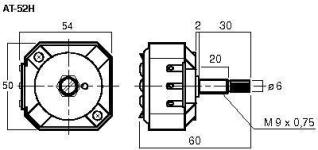

AT-52H Speaker Level Control AT-52H Dimensions
Specifications:
Impedance 8Ω ±25%
Rotation Counter clockwise 300º ±5º
Attenuation 0dB to ∞dB
Channel Single
Power 50 Watts
Dimensions 54 x 50 x 60mm
AT-52H is a single channel (Mono) speaker L Pad Attenuator. Supplied with control knob mounting nuts, and washers.
Order Code   Each
962-150 AT-52H L Pad Attenuator 16.35

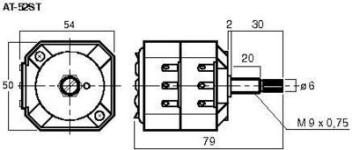

AT-52ST Dimensions
Specifications:
Impedance 8Ω ±20%
Rotation Counter clockwise 300º ±5º
Attenuation 0dB to ∞dB
Channel Dual
Power 50 Watts
Dimensions 54 x 50 x 60mm
AT-52ST is a dual channel (Stereo) speaker L Pad Attenuator. Supplied with control knob. mounting nuts and washers.
Order Code   Each
962-250 AT-52ST L Pad Attenuator 16.79



AT-62SK Speaker Level Control AT-62SK Dimensions
Specifications:
Impedance 8Ω ±20%
Rotation Counter clockwise 300º ±5º
Attenuation 0dB to ∞dB
Channel Single
Power 100Watts
Shaft Length 19mm
Dimensions 59 x 64Ømm
AT-62SK is a single channel (Mono) speaker L Pad Attenuator. Supplied with control knob. mounting nuts and washers.
Order Code   Each
962-160 AT-62SK L Pad Attenuator (Long Shaft) 17.79

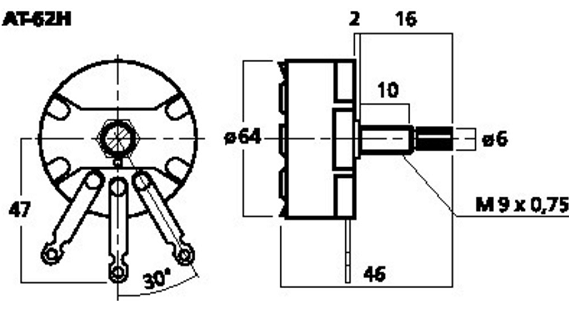

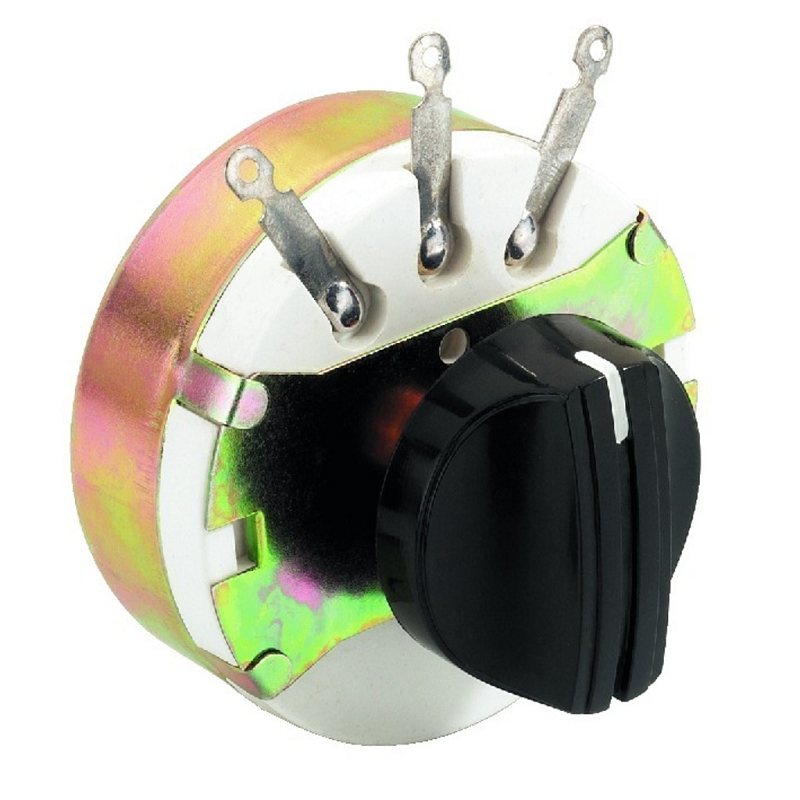

AT-62H L Pad Attenuator (Short Shaft) AT-62H L Pad Attenuator
Specifications:
Impedance 8Ω ±20%
Rotation Counter clockwise 300º ±5º
Attenuation 0dB to ∞dB
Channel Single
Power 100Watts
Shaft Length 10mm
Dimensions 59 x 64Ømm
AT-62SK is a single channel (Mono) speaker L Pad Attenuator. Supplied with control knob. mounting nuts and washers.
Order Code   Each
962-165 AT-62H L Pad Attenuator Short Shaft) 18.68



KN-42P Attenuator mounting dish
Specifications:
Model KN-42P

Mounting Hole Ømm
Dimensions 59 x 64Ømm
Weight g
KN-42P is for mounting AT-52H, AT-52ST and AT62SK L-Pads attenuators. It has a silver-coloured imprint on a black plastic facia. the turning angle is 300° ±5°
Order Code   Each
062-205 KN-42P Attenuator mounting dish 4.84
