12" Loudspeakers

12" Replacement Speakers

12" Woofer 8 ohm Loudspeaker 150 Watt RMS

Specifications:
Model Nº
Power RMS	150 Watts
Magnet Size	20 x 120mmØ
Diameter	12"
Frequency Response	45Hz - 6kHz
Magnet Weight	30oz
SPL (1W/1m)	93dB
Voice Coil	35mm
Impedance	8Ω
Connection	Spade
Dimensions	121mm x 305mmØ
Weight	1.83Kg
Subject to technical modifications.

General purpose 12" 150 watt chassis speaker. Ideal for custom build cabinets or replacement for damaged drive units.

Order Code		Each
200-542	12" Woofer 8 ohm Loudspeaker 150 Watt RMS	26.19

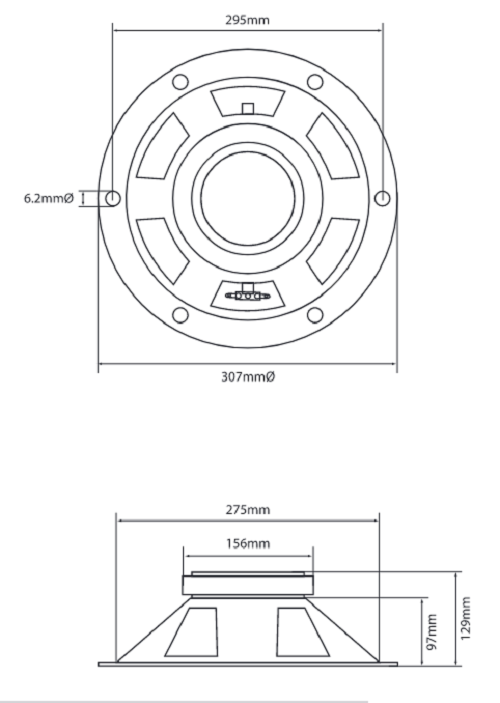

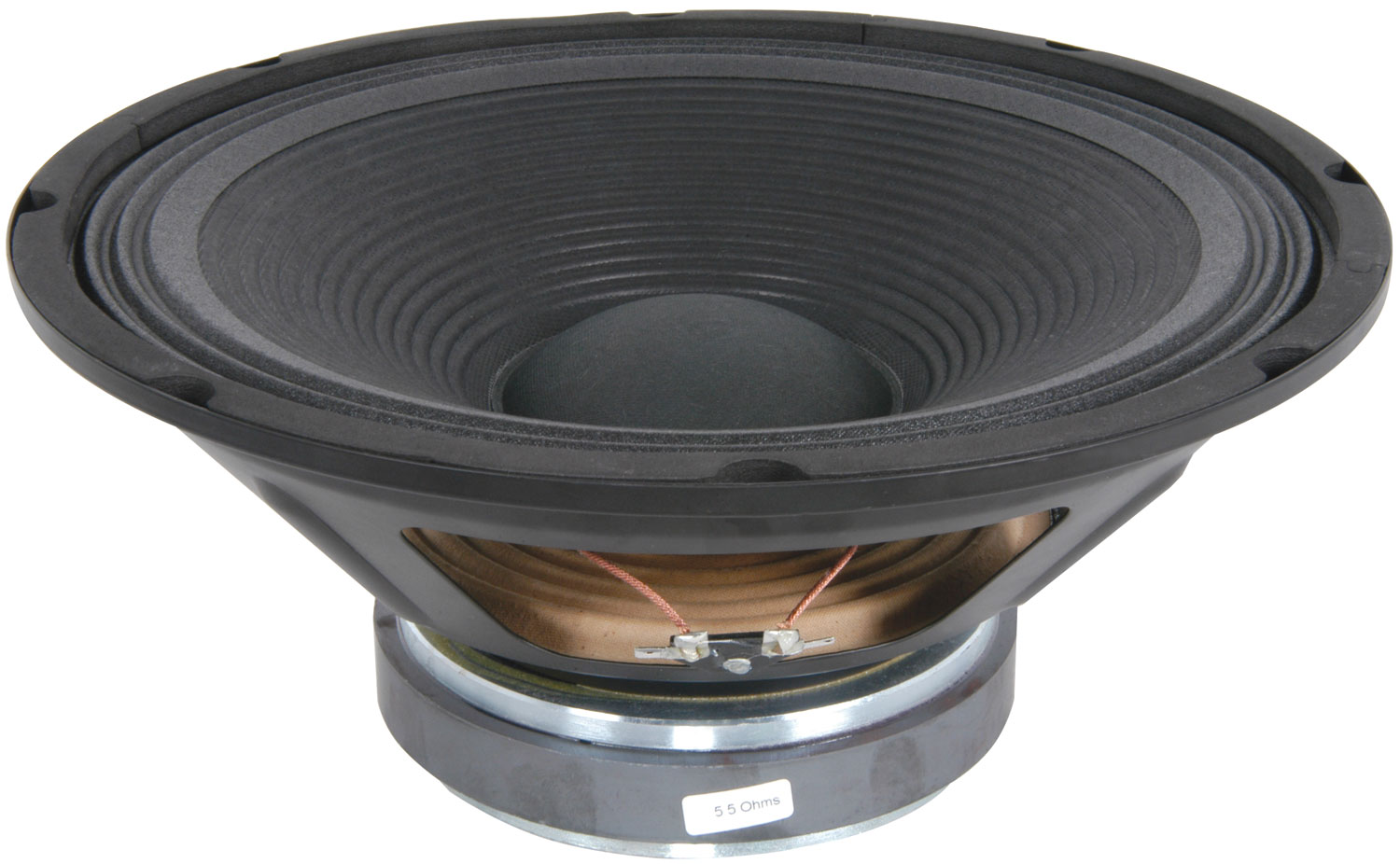

12" Woofer 8 ohm Loudspeaker 250 Watt RMS

Specifications:
Model Nº
Power RMS	250 Watts
Magnet Size	20 x 156mmØ
Diameter	12"
Frequency Response	45Hz - 6kHz
Magnet Weight	50oz
SPL (1W/1m)	98dB
Voice Coil	52mm
Impedance	8Ω
Connection	Spade
Dimensions	129mm x 307mmØ
Weight	4.02Kg
Subject to technical modifications.

General purpose 12" speaker with pressed steel basket and rated at 250 watt. Ideal for custom build cabinets or replacement for damaged drive units.

Order Code		Each
200-509	12" Woofer 8 ohm Loudspeaker 250 Watt RMS	41.70

Specifications:
Model Nº
Power RMS	400 Watts
Magnet Size	20 x 156mmØ
Diameter	12"
Frequency Response	45Hz - 2kHz
Magnet Weight	50oz
SPL (1W/1m)	96dB
Voice Coil	64mm
Impedance	8Ω
Connection	Spade
Dimensions	160mm x 310mmØ
Weight	4.8Kg
Subject to technical modifications.

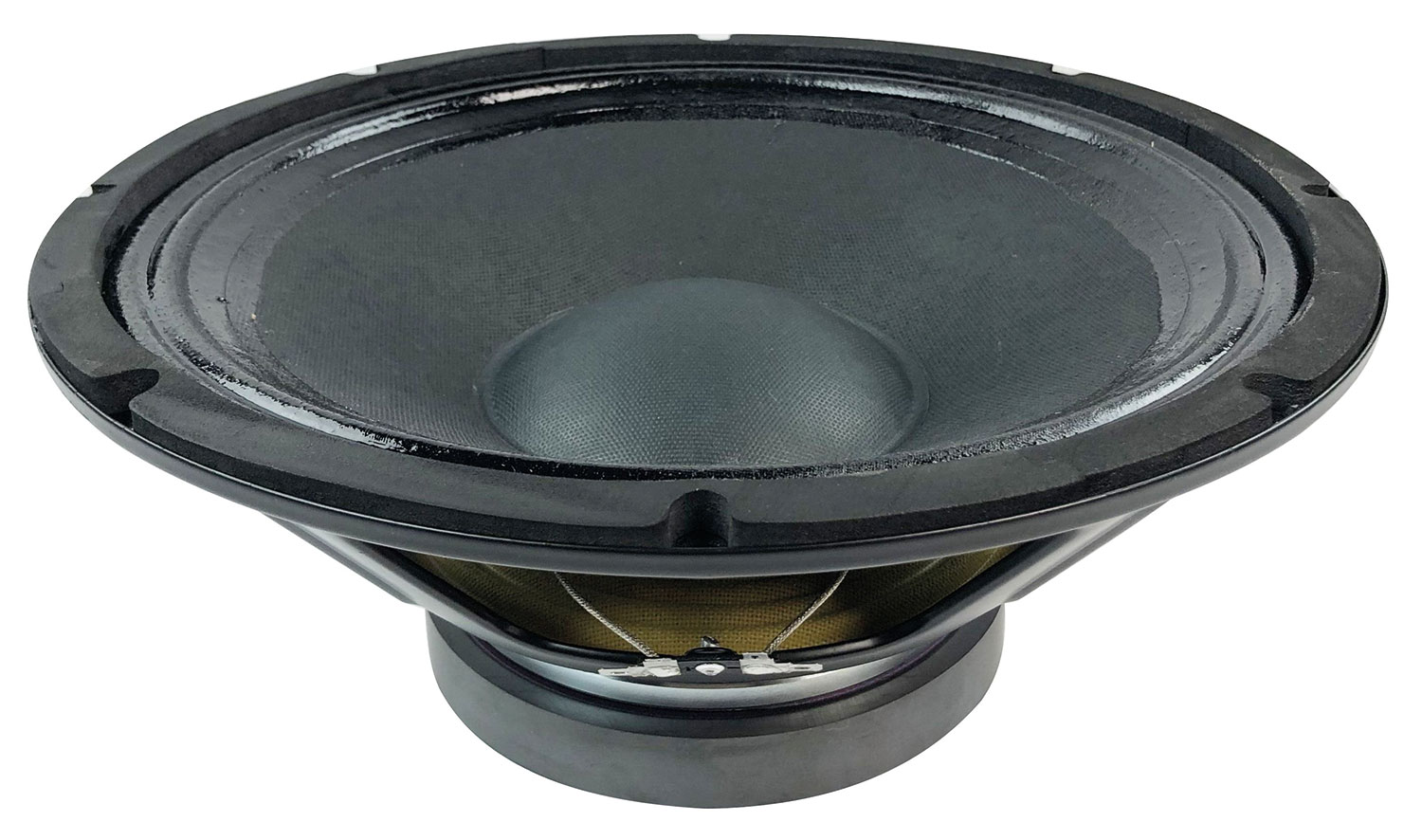

A replacement 12" Subwoofer loudspeaker, rated at 400 Watts RMS with a maximum rating of 700 Watts. Offers exceptional bass for a small diameter speaker.

Order Code		Each
200-523	12" Subwoofer 8 ohm Loudspeaker 400 Watt RMS	54.24
200-523-4	12" Subwoofer 4 ohm Loudspeaker 400 Watt RMS	54.24
