19" Steel Rack Cabinets

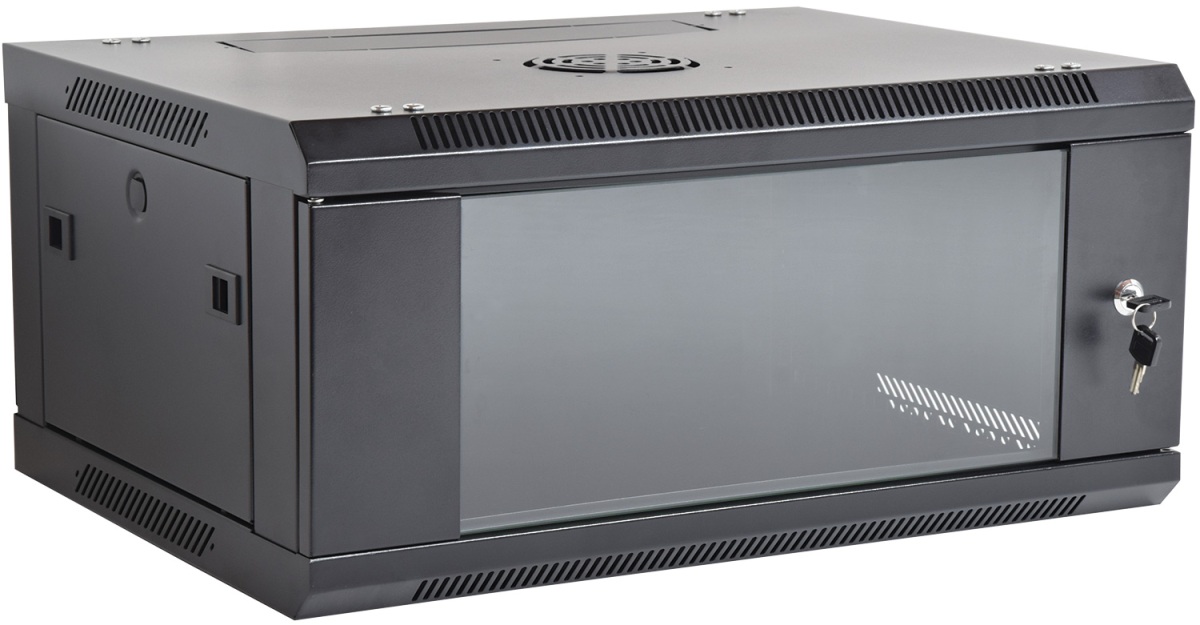

19" Black Equipment Rack
Specifications:
ModelUnit (U)External DimensionsWeight
6U/HE6545 x 270 x 480mm10kg
8U/HE8545 x 455 x 480mm10.5kg
12U/HE12545 x 635 x 480mm13.5kg
16U/HE16545 x 815 x 480mm15kg
20U/HE20545 x 990 x 480mm17kg
28U/HE28545 x 1340 x 480mm25kg
35U/HE35545 x 1650 x 480mm33kg

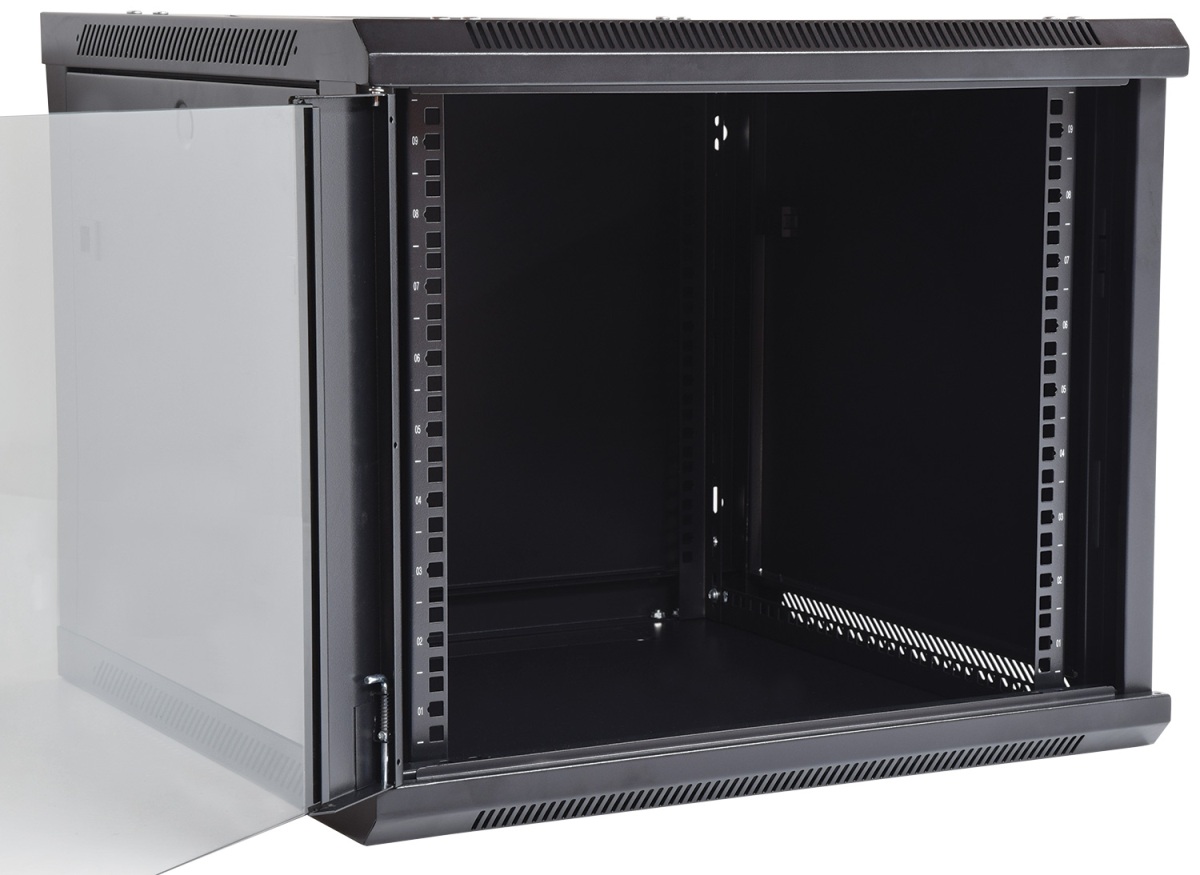

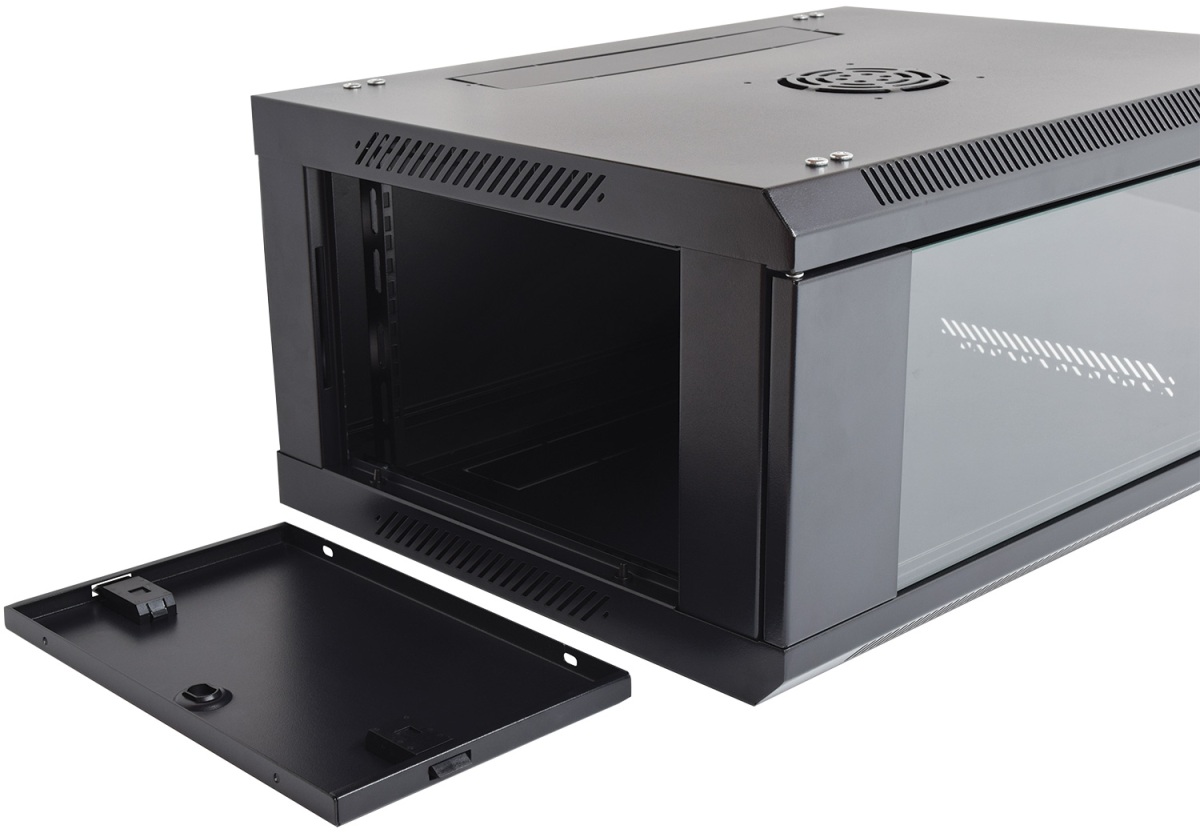

A range of seven steel equipment rack cabinets supplied by Penn Elcom. The cabinets have fixing rails front and rear with mounting holes punched at 44.45mm centres, the international standard. The holes are designed to take M6 captive nuts. The sides of the cabinets are pre-drilled to allow the fixing of either a glass door or a solid steel door. These cabinets are ideal for use in fixed installations for the mounting of amplifiers and processors or dimmers and light controllers. Additional M6 fixings are available
Order Code Each
406-6506U/HE 19" Black Equipment Rack67.96
406-6538U/HE 19" Black Equipment Rack74.78
406-65612U/HE 19" Black Equipment Rack83.48
406-65916U/HE 19" Black Equipment Rack92.17
406-66220U/HE 19" Black Equipment Rack100.86
406-66328U/HE 19" Black Equipment Rack127.81
406-66535U/HE 19" Black Equipment Rack144.34



Black Steel Door
Specifications:
ModelUnit (U)External Dimensions
6U/HE6545 x 270
8U/HE8545 x 455
12U/HE12545 x 635
16U/HE16545 x 815
20U/HE20545 x 990
28U/HE28545 x 1340
35U/HE35545 x 1650
Steel doors for 19" rack cabinets. All doors are supplied with hinges and catch.
Order Code Each
406-6696U/HE Black Steel Door47.20
406-6718U/HE Black Steel Door48.16
406-67312U/HE Black Steel Door52.87
406-67516U/HE Black Steel Door55.83
406-67720U/HE Black Steel Door58.79
406-67928U/HE Black Steel Door54.61
406-68835U/HE Black Steel Door70.24



Specifications:
ModelUnit (U)External Dimensions
6U/HE6545 x 270
8U/HE8545 x 455
12U/HE12545 x 635
16U/HE16545 x 815
20U/HE20545 x 990
28U/HE28545 x 1340
35U/HE35545 x 1650

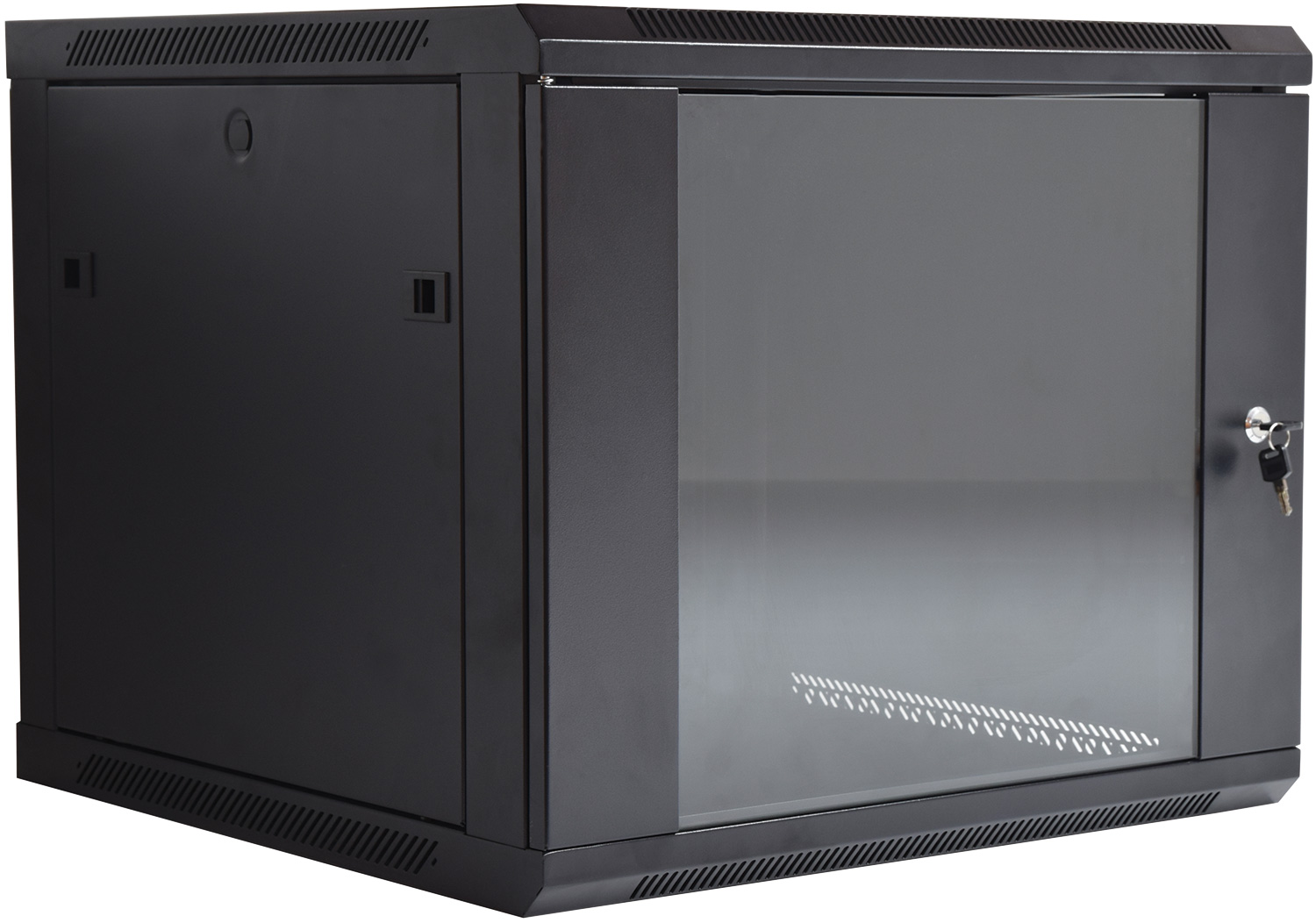

Solid glass door for 19" rack cabinets. All doors are supplied with hinges and catch.
Order Code Each
406-6806U/HE Glass Door70.32
406-6818U/HE Glass Door74.60
406-68312U/HE Glass Door78.08
406-68516U/HE Glass Door81.56
406-68720U/HE Glass Door85.04
406-68928U/HE Glass Door88.52
406-69135U/HE Glass Door93.30
