Infrared Beam Sensor

Photoelectric Beam Sensor
Specifications:
ModelPEM10D
TransmitterIR LED
Operating Distance7m
Response Time5 - 100ms
Relay Contact Rating1A/250Vac
Power Supply11 - 13Vdc 50mA
Dimensions20 x 39 x 63mm
IP RatingIP66
Weightkg
PEM10D is a self contained photoelectric beam and sensor, when beam is interrupted relay contacts are closed and LED lights. The unit works by sending out a beam of infrared light, bouncing it of a reflective disc and receiving on built in sensor. The unit will work on distances up to about 7m, reflective disc supplied. This unit has IP66 rating and is suitable for external installation.
Order Code Each
031-210Photoelectric Beam Sensor48.72



PEM30D Photo Beam Sensor
Specifications:
ModelPEM30D
TransmitterIR LED
Operating Distance30m
Response Time15ms
Relay Contact Rating1A/250Vac
Power SupplyDC 12~240V 10% or AC 24~240V 10%
Dimensions21 x 55 x 50mm
IP RatingIP44
Weightkg
PEM30D is a photoelectric beam and sensor, when beam is interrupted relay contacts are closed and LED lights. The unit works by sending out a beam of infrared light and receiving on a sensor. The unit will work on distances up to about 30m, reflective disc supplied. This unit has IP44 rating and is suitable for external installation.
Order Code Each
031-211Photo Beam Sensor, Dark-ON (30m Indoor Range)76.99

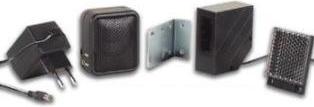

Mini Infrared Security System
Specifications:
ModelPEM7D
TransmitterIR LED
Operating Distance7m
Alarm Duration1 - 30sec
Volume0 - 100%
Power Supply9 - 15Vdc 100mA
Dimensions20 x 39 x 63mm
IP RatingIP44
Weightkg
The PEM7D is a compact entry and approach warning system for use in shops, reception areas, private homes, etc. It is a self contained photoelectric beam and sensor unit, which works by sending out a beam of infrared light, bouncing it of a reflective disc and receiving it on sensor. If the beam is interrupted i.e. when a person walks through it, an alarm is triggered and an audible warning sound can be heard. The time the alarm is on and the volume or both easily adjusted.
Order Code Each
031-215Mini Infrared Security System49.85
