Movement Sensor

Position or Inclination Sensor
Specifications:
ModelC-7231
ContactN.O.
Rating60Vac @250mA
Activation10º

Dimensions10.2 x 4.7mmØ
Weightg
Download Handbook >Download the Handbook for full specifications and applications

C-7231 This sensor is completely free of mercury and therefore no parts are toxic, poisonous or that may harm the environment. It is designed to cover a wide range of applications including machinery, security, automotive, games, toys, automation and
consumer products. The sensor is mounted horizontally, its switching status change to be tilted about 10º from the horizontal. The sensors contacts are normally open or closed, depending on which is mounted position.

Order Code Each
241-105Position or Inclination Sensor3.02



Specifications:
ModelC-7233
ContactN.O.
Rating24Vac @200mA


Dimensions7.5 x 4.6mmØ
Weightg

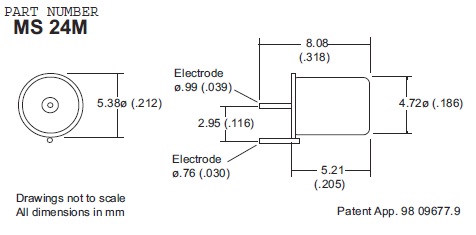

The Comus Mini Motion Sensor (Through Hole) incorporates a non-mercury contact tip-over omni-directional vibration switch. When disturbed the sensor reacts by a fleeting change to the state of the switch contact. The time taken to settle depends on the amount of energy absorbed by the device. This range of high sensitivity motion sensors has been designed for use with both analogue and digital circuitry.
  • Manufactured using non-toxic materials
  • Hermetically sealed
  • Not position sensitive
  • Low contact resistance makes these sensors ideal for incorporating into new or existing designs
  • Gold plated steel case
Order Code Each
241-106Mini Motion Sensor1.58



Acceleration Detector
Specifications:
ModelC-7233
ContactN.O.
Rating24Vac @250mA
Activationlinear 5.0 ±1,5G

Dimensions6.8 x 4.6mmØ
Weightg
Download Handbook >Download the Handbook for full specifications and applications

C-7233 Sensor is completely free of mercury and therefore does not contain toxic parts, or that could harm the environment. The lean of the sensor is activated when its angle will vary in relation with its installation position. The first sign of vibration will operate it, regardless of position. It is very sensitive and it can be used as movement sensor. The lineal acceleration sensor will close its contact if it receives an impact superior to 5G and it opens the contact if the level decreases. The C-7233 movement sensor is omni-directional, and it will open the contact if it is in vertical position and it close the contact when it come back or it is inclined more than 60º.

Order Code Each
241-107Acceleration Detector8.40



Overturn Detector
Specifications:
ModelC-7234
ContactN.O.
Rating60Vac @250mA
Activation60º

Dimensions7.6 x 5.7mmØ
Weightg

C-7234 Sensor is manufactured from none toxic materials, they hermetical sealed are very safe. The lean of the sensor is activated when its angle will vary in relation with its installation position. The vibration one will operate in all positions, it is very sensitive and it can be used as movement sensor. The lineal acceleration sensor will close its contact if it receives an impact superior to 5G and it opens the contact if the level decreases. The C-7234 movement sensor is omni-directional, and it will open the contact if it is in vertical position and it close the contact when it come back or it is inclined more than 60º.

Order Code Each
241-110Overturn Detector7.90



Vibration Detector
Specifications:
ModelC-7232
ContactN.O.
Rating24Vac @25mA

Dimensions9.5 x 9.3mmØ
Weightg
Download Handbook >Download the Handbook for full specifications and applications

C-7232 sensor is completely free of mercury and therefore does not contain toxic parts, or that could harm the environment. It is specifically designed to detect movement and vibration. Not affected by mounting position, providing a similar level of
sensitivity regardless of it, being equally suitable for use in circuits analogue and digital. The sensor reacts when it is unbalanced by an impact or vibration, causing a brief change of status (eg moving from normally open to normally closed or vice versa). The time disturbance of the sensor depend on the amount of energy received at the time of impact. The low contact resistance of this sensor make it ideal for incorporation in both new designs and in existing designs.

Order Code Each
241-115Vibration Detector5.52



Electronic Shock SensorWiring Diagram
Specifications:
Model957
ElementPiezo
Rating12Vdc

Dimensions73 x 50 x 25mm
Weightg

Electronic shock detector is ideally suited for fitting to motor vehicles or caravans. It is activated when the vehicle receives a sudden jolt ie: when involved in a collision, break-in or vehicle towed away. Requires 12V supply, ground triggering (-) with adjustable sensitivity. The shock sensor is supplied with 500mm leads and fixing screws.

Order Code Each
241-112Electronic Shock Sensor8.95
