Peltier Thermoelectric

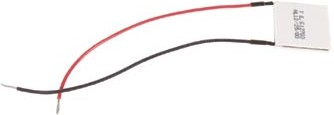

Peltier Thermoelectric Cell 3A
Specifications:
ModelCP1.0-127-06L
I max3A
Delta T max65C
Voltage15.4Vdc
Q max25.7W
Number of couples127
Dimensions30 x 30 x 3.6mm
Weight12g
Peltier thermoelectric module can be used to generate electricity, measure temperature or change the temperature of objects. Because the direction of heating and cooling is determined by the polarity of the applied voltage, thermoelectric devices are efficient temperature controllers.
Order Code Each
241-180Peltier Thermoelectric Cell 3A15.48



Peltier Thermoelectric Cell 6A
Specifications:
ModelCP1.4-127-06L
I max6A
Delta T max67C
Voltage15.4Vdc
Q max51.4W
Number of couples127
Dimensions40 x 40 x 3.8mm
Weight21.8g
Peltier thermoelectric module can be used to generate electricity, measure temperature or change the temperature of objects. Because the direction of heating and cooling is determined by the polarity of the applied voltage, thermoelectric devices are efficient temperature controllers.
Order Code Each
241-181Peltier Thermoelectric Cell 6A12.84
