Solenoid Actuator

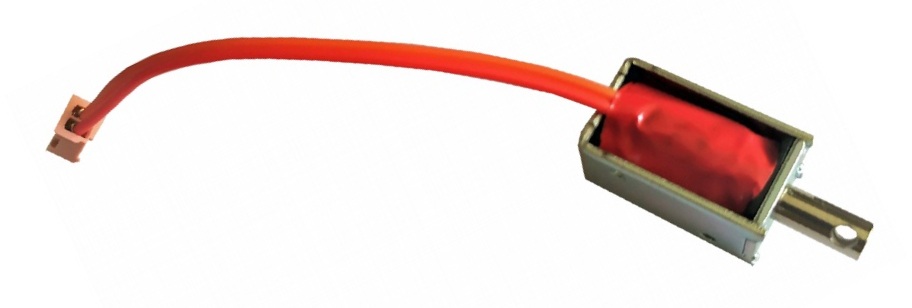

Electromagnet Solenoid
Specifications:
ModelC-6092
Supply Voltage12Vdc
Coil Resistance131Ω
Coil Winding2162 Turns
Travel15mm
Rating90mA
Shaft Diameter4mmØ
Dimensions20 x 10 x 10mm
Weight10g
This electromagnet solenoid, with open framework can supply the maximum power in spite of it's reduced size. This is due to raw materials with high permeability and high density coil. Applications include door closers, brakes, actuators, robots, etc…
Order Code Each
245-005Electromagnet Solenoid3.50



12/24V DC Solenoid
Specifications:
Model 121E16530
Supply Voltage12 - 24Vdc
Coil Resistance39Ω
Travel25mm
Rating@12V400mA (Continuous)
Shaft Diameter8mmØ
Dimensions55 x 25 x 30mm
Weightg
High power electromagnet solenoid which can operate between 12 and 24Vdc. Internal diode protection, applications include door closers, brakes, actuators, robots, etc…
Order Code Each
245-01012/24V Solenoid3.00
