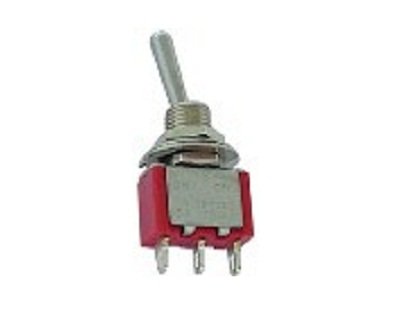

High Quality Miniature SPDT Toggle Switches

SPDT Toggle SwitchLine Drawing
Specifications:
Contact ArrangementSPST
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 31mm
Miniature high quality toggle switch with single pole contacts. Available as standard change over contacts or biased (Sprung loaded) return to original position. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-211SPDT On - On Miniature Toggle Switch - Solder1.331.06590.9327

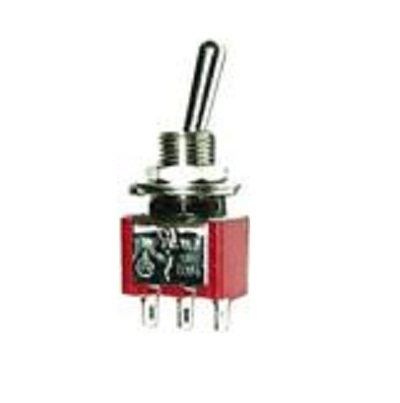

218-220SPDT On -(On) Miniature Toggle Switch - Solder1.261.131.01

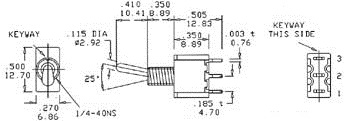

Miniature Toggle Switch Line Drawing
Specifications:
Contact ArrangementSPST
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 31mm
High quality miniature centre off toggle switches with single pole change over contacts. Available in three types: Standard centre off, biased (Sprung loaded) to return to off in both ways or biased to return to off one way. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-212SPDT On - Off - On Miniature Toggle Switch - Solder1.170.830.73
218-221SPDT (On)-Off-(On) Miniature Toggle Switch - Solder1.301.171.04
218-222SPDT On - Off-(On) Miniature Toggle Switch - Solder1.601.441.28

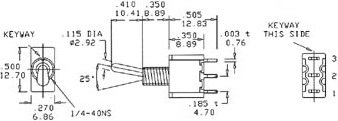

PCB mounting Toggle SwitchLine Drawing
Specifications:
Contact ArrangementSPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 32mm
PCB mounting miniature high quality toggle switch with single pole contacts, suitable for direct mounting on to a printed circuit board. Available as standard change over contacts or biased (Sprung loaded) return to original position. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-230SPDT On - On Miniature Toggle Switch - Vertical PCB1.150.920.81
218-240SPDT On -(On) Miniature Toggle Switch - Vertical PCB1.230.990.86



PCB mounting Toggle Switch with Centre off positionLine Drawing
Specifications:
Contact ArrangementSPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 32mm
PCB mounting miniature high quality toggle switch with single pole change over contacts, suitable for direct mounting on to a printed circuit board. Available in three types: Standard centre off, biased (Sprung loaded) to return to off in both ways or biased to return to off one way. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-232SPDT On - Off - On Miniature Toggle Switch - Vertical PCB1.521.221.07
218-241SPDT (On)- Off -(On) Miniature Toggle Switch - Vertical PCB1.841.47181.2879
218-242SPDT On - Off -(On) Miniature Toggle Switch - Vertical PCB1.591.271.11



Miniature Toggle Switch - PCB - HorizontalLine Drawing
Specifications:
Contact ArrangementSPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 32mm
PCB mounting miniature high quality toggle switch with single pole contacts, suitable for direct horizontal mounting on to a printed circuit board. Available as standard change over contacts or biased (Sprung loaded) return to original position. Switch operates from a side to side action.
Order Code 110+25+
218-271SPDT On - On Miniature Toggle Switch - Horizontal PCB1.511.211.06
218-280SPDT On -(On) Miniature Toggle Switch - Horizontal PCB1.711.371.20

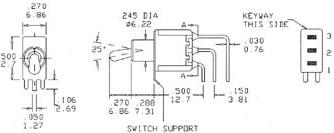

Miniature Toggle Switch - PCB - VerticalLine Drawing
Specifications:
Contact ArrangementSPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 32mm
PCB mounting miniature high quality toggle switch with single pole contacts, suitable for direct vertical mounting on to a printed circuit board. Available as standard change over contacts or biased (Sprung loaded) return to original position. Switch operates in a up down action.
Order Code 110+25+
218-251SPDT On - On Miniature Toggle Switch - Horizontal PCB1.771.421.24
218-260SPDT On -(On) Miniature Toggle Switch - Horizontal PCB1.631.301.14

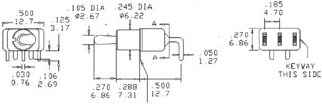

Line Drawing
Specifications:
Contact ArrangementSPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 32mm
PCB mounting miniature high quality toggle switch with single pole change over contacts, suitable for direct mounting on to a printed circuit board. Available in two types: Standard centre off and biased (Sprung loaded) to return to off in both ways. Switch operates from a side to side action.
Order Code 110+25+
218-272SPDT On - Off - On Miniature Toggle Switch - Horizontal PCB1.791.431.25
218-281SPDT (On)- Off -(On) Miniature Toggle Switch - Horizontal PCB1.831.461.28



Miniature Toggle Switch - PCB - VerticalLine Drawing
Specifications:
Contact ArrangementSPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions7 x 13 x 32mm
PCB mounting miniature high quality toggle switch with single pole change over contacts, suitable for direct mounting on to a printed circuit board. Available in three types: Standard centre off, biased (Sprung loaded) to return to off in both ways or biased to return to off one way. Switch operates in a up down action.
Order Code 110+25+
218-252SPDT On - Off - On Miniature Toggle Switch - Horizontal PCB1.831.461.28
218-261SPDT (On)- Off -(On) Miniature Toggle Switch - Horizontal PCB2.151.721.50



High Quality Miniature DPDT Toggle Switches

DPDT Toggle SwitchLine Drawing
Specifications:
Contact ArrangementDPST
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 31mm
Miniature high quality toggle switch with double pole contacts. Available as standard change over switch or as a biased (Sprung loaded) to return to original position. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-213DPDT On - On Miniature Toggle Switch - Solder1.140.9120.798

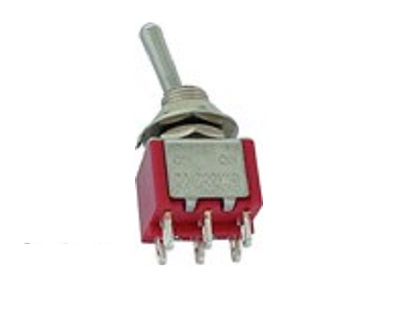

218-226DPDT On-(On) Miniature Toggle Switch - Solder1.591.411.27

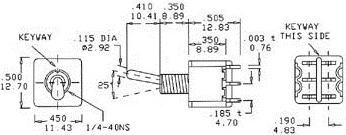

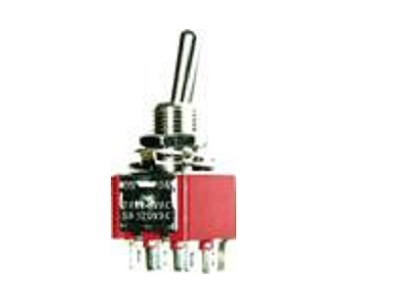

Centre off Toggle SwitchLine Drawing
Specifications:
Contact ArrangementDPDT
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 13 x 32mm
Miniature high quality centre off toggle switches with double pole change over contacts. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-214DPDT On - Off - On Miniature Toggle Switch - Solder1.661.4941.328
218-223DPDT (On)-Off-(On) Miniature Toggle Switch - Solder1.691.52011.3512
218-224DPDT On - Off-(On) Miniature Toggle Switch - Solder2.011.611.44

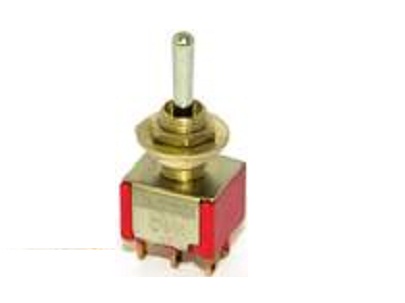

On On On Switch
Specifications:
Contact ArrangementDPDT
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 13 x 32mm
Data Sheet >
High quality miniature toggle switch, featuring 3 positions with an ON connection in all 3. Typical used for guitar pick up selection. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-225DPDT On-On-On Miniature Toggle Switch - Solder2.752.202.10



Double Pole PCB mounting Toggle SwitchLine Drawing
Specifications:
Contact ArrangementDPST
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 32mm
PCB mounting miniature high quality toggle switch with double pole contacts, suitable for direct mounting on to a printed circuit board. Available as standard change over switch or as a biased (Sprung loaded) to return to original position. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-233DPDT On - On Miniature Toggle Switch - Vertical PCB1.531.221.07
218-245DPDT On -(On) Miniature Toggle Switch - Vertical PCB1.631.301.14



PCB mounting Toggle Switch with Centre Off ActionLine Drawing
Specifications:
Contact ArrangementDPST
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 32mm
PCB mounting miniature high quality toggle switch with double pole contacts, suitable for direct mounting on to a printed circuit board. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-234DPDT On - Off - On Miniature Toggle Switch - Vertical PCB1.831.461.28
218-243DPDT (On)- Off -(On) Miniature Toggle Switch - Vertical PCB1.981.591.39
218-244DPDT On - Off -(On) Miniature Toggle Switch - Vertical PCB1.751.401.22



Miniature Toggle Switch - PCB - HorizontalLine Drawing
Specifications:
Contact ArrangementDPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 32mm
PCB mounting miniature high quality toggle switch with double pole contacts, suitable for direct mounting on to a printed circuit board. Only available as a change over switch biased (Sprung loaded) to return to original position. Switch operates from a side to side action.
Order Code 110+25+
218-286DPDT On -(On) Miniature Toggle Switch - Horizontal PCB1.971.571.38

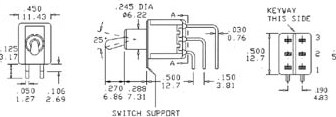

Miniature Toggle Switch - PCB - VerticalLine Drawing
Specifications:
Contact ArrangementDPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 32mm
PCB mounting miniature high quality toggle switch with double pole contacts, suitable for direct mounting on to a printed circuit board. Switch operates in a up down action.
Order Code 110+25+
218-253DPDT On - On Miniature Toggle Switch - Horizontal PCB2.051.641.43

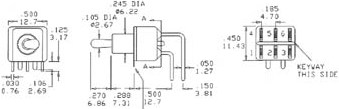

Line Drawing
Specifications:
Contact ArrangementDPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 32mm
PCB mounting miniature high quality toggle switch with double pole contacts, suitable for direct mounting on to a printed circuit board. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Switch operates from a side to side action.
Order Code 110+25+
218-274DPDT On - Off - On Miniature Toggle Switch - PCB - Horizontal1.991.581.39
218-283DPDT (On)- Off -(On) Miniature Toggle Switch - PCB - Horizontal2.011.601.40
218-284DPDT On - Off -(On) Miniature Toggle Switch - PCB - Horizontal2.301.841.61



Miniature Toggle Switch - PCB - VerticalLine Drawing
Specifications:
Contact ArrangementDPDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions12 x 13 x 32mm
PCB mounting miniature high quality toggle switch with double pole contacts, suitable for direct mounting on to a printed circuit board. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Switch operates in a up down action.
Order Code 110+25+
218-254DPDT On - Off - On Miniature Toggle Switch - Horizontal PCB2.441.951.71
218-263DPDT (On)- Off -(On) Miniature Toggle Switch - Horizontal PCB2.321.861.63
218-264DPDT On - Off -(On) Miniature Toggle Switch - Horizontal PCB1.951.561.36



High Quality Miniature 3PDT Toggle Switches

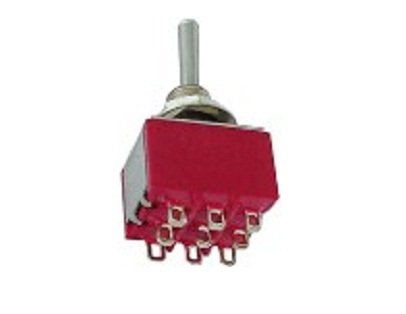

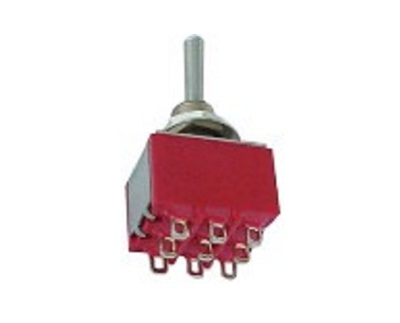

3 Pole Toggle SwitchLine Drawing
Specifications:
Contact Arrangement3PDT
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 16.5 x 32mm
Miniature high quality change over toggle switch with three poles. Available as change over switch or as a biased (Sprung loaded) to return to original position. Supplied with two fixing nuts and locking washer.
Order Code 110+25+
218-2153PDT On - On Miniature Toggle - Solder2.702.532.36
218-2273PDT On -(On) Miniature Toggle - Solder3.122.492.18



3 Pole Centre Off Toggle SwitchLine Drawing
Specifications:
Contact Arrangement3PDT
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 16.5 x 32mm
Miniature high quality centre off change over switch with three poles. Available as standard centre off switch or biased (Sprung loaded) to return to off one way. Supplied with two fixing nuts and locking washer. Also available with centre off switch action.
Order Code 110+25+
218-2163PDT On - Off - On Miniature Toggle - Solder3.283.07532.8703
218-2283PDT On - Off -(On) Miniature Toggle - Solder5.144.123.60

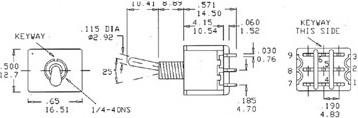

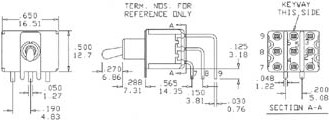

PCB mounting 3-Pole Toggle SwitchLine Drawing
Specifications:
Contact Arrangement3PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 16.5 x 32mm
PCB mounting miniature high quality toggle switch with three poles, suitable for direct mounting on to a printed circuit board. Available as change over switch or as a biased (Sprung loaded) to return to original position. Supplied with two fixing nuts and locking washer.
Order Code 110+25+
218-2353PDT On - On Miniature Toggle Switch - Vertical PCB3.382.70242.3646
218-2473PDT On -(On) Miniature Toggle Switch - Vertical PCB4.513.613.16



PCB Mounting Toggle Switch with Centre Off PositionLine Drawing
Specifications:
Contact Arrangement3PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 16.5 x 32mm
PCB mounting miniature high quality toggle switch with three poles, suitable for direct mounting on to a printed circuit board. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-2363PDT On - Off - On Miniature Toggle Switch - Vertical PCB3.142.512.20
218-2463PDT (On)- Off -(On) Miniature Toggle Switch - Vertical PCB4.503.603.15
218-2483PDT On - Off -(On) Miniature Toggle Switch - Vertical PCB3.652.922.56



Miniature Toggle Switch - PCB - VerticalLine Drawing
Specifications:
Contact Arrangement3PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 16.5 x 32mm
PCB mounting miniature high quality toggle switch with three poles, suitable for direct mounting on to a printed circuit board. Available as standard centre off switch or biased to return to off both ways. Switch operates in a up down action.
Order Code 110+25+
218-2563PDT On - Off - On Miniature Toggle Switch - Horizontal PCB4.513.613.16
218-2673PDT On - Off -(On) Miniature Toggle Switch - Horizontal PCB3.652.922.56

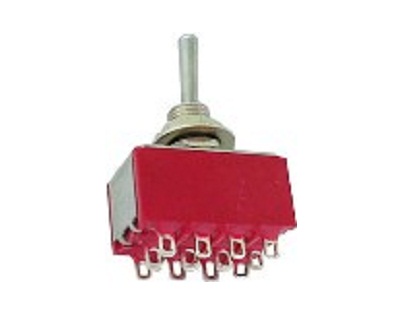

High Quality Miniature 4PDT Toggle Switches

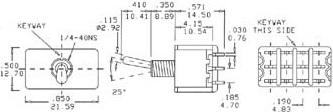

4 Pole Toggle switchLine Drawing
Specifications:
Contact Arrangement4PDT
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 22 x 32mm
Miniature high quality change over toggle switch with four poles. Supplied with two fixing nuts and locking washer. Identical in operation to PECO PL-21 Toggle Switch.
Order Code 110+25+
218-2184PDT On - On Miniature Toggle - Solder3.062.872.67

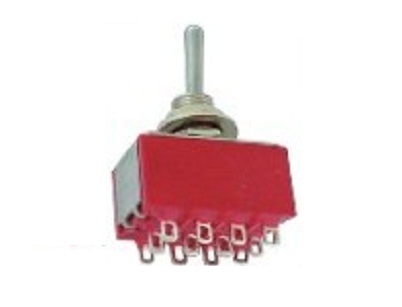

4 Pole Centre off Toggle switchLine Drawing
Specifications:
Contact Arrangement4PDT
ConnectionSolder
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 22 x 32mm
Miniature high quality four pole centre off toggle switches with change over contacts. Available as standard centre off switch or biased (Sprung loaded) to return to off one way. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-2194PDT On - Off - On Miniature Toggle - Solder3.633.413.18
218-2294PDT On - Off -(On) Miniature Toggle - Solder7.155.725.00

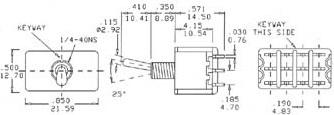

PCB Mounting 4-Pole Toggle SwitchDrawing
Specifications:
Contact Arrangement4PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 22 x 32mm
PCB mounting miniature high quality toggle switch, suitable for direct mounting on to a printed circuit board. Four pole switch with change over contacts. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-2384PDT On - On Miniature Toggle Switch - Vertical PCB3.813.052.67



4 Pole Toggle SwitchDrawing
Specifications:
Contact Arrangement4PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 22 x 32mm
PCB mounting miniature high quality centre off change over switch with four poles. Suitable for direct mounting on to a printed circuit board. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Supplied with two fixing nuts and locking washer, chrome toggle.
Order Code 110+25+
218-2394PDT On - Off - On Miniature Toggle Switch - Vertical PCB5.184.153.63
218-2494PDT (On)- Off -(On) Miniature Toggle Switch - Vertical PCB6.285.024.39
218-2504PDT On - Off -(On) Miniature Toggle Switch - Vertical PCB3.953.162.77

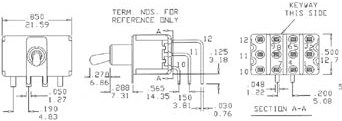

Miniature Toggle Switch - PCB - VerticalLine Drawing
Specifications:
Contact Arrangement4PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 22 x 32mm
PCB mounting miniature high quality toggle switch, suitable for direct mounting on to a printed circuit board. Four pole switch with change over contacts, available as change over switch or as a biased (Sprung loaded) to return to original position. Switch operates in a up down action.
Order Code 110+25+
218-2584PDT On - On Miniature Toggle Switch - Horizontal PCB5.174.133.61
218-2684PDT On -(On) Miniature Toggle Switch - Horizontal PCB3.562.842.48



Miniature Toggle Switch - PCB - VerticalDrawing
Specifications:
Contact Arrangement4PDT
ConnectionPCB
Rating5A 120Vac or 28Vdc
Electrical Life50000 make-and-break cycles at full load
Contact Resistance10mohm at 2-4Vdc
Insulation Resistance1000Mohm
Panel Cut out6.5mmØ
Dimensions13 x 22 x 32mm
PCB mounting miniature high quality centre off change over switch with four poles. Suitable for direct mounting on to a printed circuit board. Available as standard centre off switch, biased (Sprung loaded) to return to off one way or biased to return to off both ways. Switch operates in a up down action.
Order Code 110+25+
218-2594PDT On - Off - On Miniature Toggle Switch - Horizontal PCB3.202.562.24
218-2694PDT (On)- Off -(On) Miniature Toggle Switch - Horizontal PCB3.322.652.32
218-2704PDT On - Off -(On) Miniature Toggle Switch - Horizontal PCB3.953.162.77

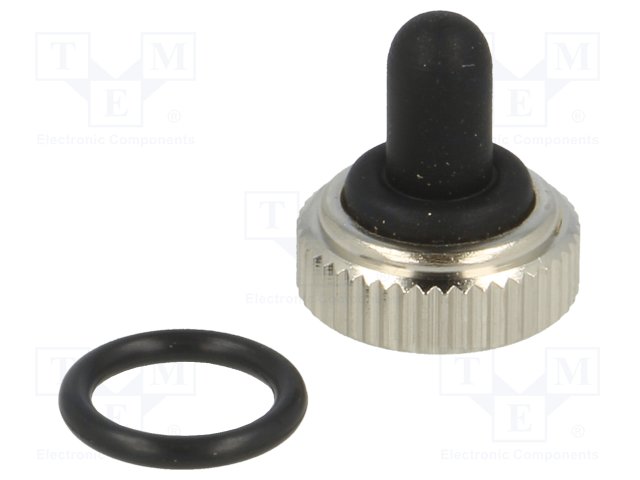

Rubber Protection Boot
Specifications:




Dimensionsmm

A small rubber boot for our range of high quality miniature toggle switches.
Order Code 110+25+
218-200Rubber Protection Boot for High Quality Miniature Toggle Switches1.261.1341.008





sales@esr.co.uk

Tel: 0191 251 4363

Fax: 0191 252 2296

Switches
Components
Kits and Modules
Home



• Place your Order here • Orders accepted subject to our Terms and Conditions

All Prices are in Pounds Sterling and Exclude VAT
