Analogue VU Meters

VU Meter 0 - 250AVU Meter Dimensions
Specifications:
Measuring Range0 - 250A
Internal Resistance750Ω
Panel Cut out37.5mm
ConnectionScrew Terminals
Dimensions55 x 47.5mm

A moving coil VU meter with 0 -250A range. The meter has a black face, marked with Green/Red scale Plastic housing with centre zero adjustment. (55 x 47.5mm)
Order Code 110+
124-182VU Meter 0 - 250A4.744.11

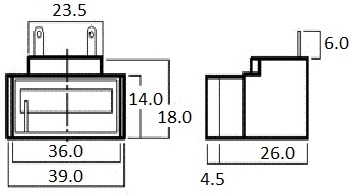

VU Meter 0 - 120AVU Meter Dimensions
Specifications:
Measuring Range0 - 120A
Internal Resistance750Ω
Illumination Voltage6V
Panel Cut out36 x 14mm
ConnectionLeads
Dimensions39 x 18mm

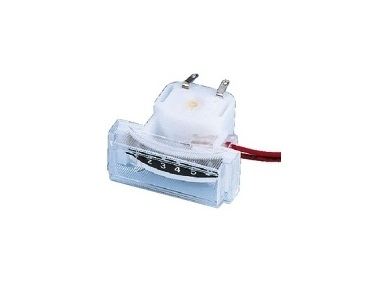

An edge wise VU meter with a scale of 1 - 6, illuminated by internal low voltage lamp. The meter has a black face with white numbers. Plastic housing with no zero adjustment. (39 x 18mm)
Order Code 110+
124-188VU Meter 0 - 120A6.716.02





sales@esr.co.uk

Tel: 0191 251 4363

Fax: 0191 252 2296




Place your Order here Orders accepted subject to our Terms and Conditions

All Prices are in Pounds Sterling and Exclude VAT
