5A
Low Voltage Motor Speed Controller
|
|
|
 |
Specification Features: |
• Pulse Width Modulation Control
• Operating Voltage :4.5 to 35Vdc
• Output Current: 5A max
• PWM Duty Cycle: 0 to 100%
• On/Off & Rotary Speed adjustment
• Auto reset fuse
• Power LED indication
|
|
Read the fully Illustrated
Operating Manual for 425-115 |
 |
Transformer |
|
|
Case |
|
|
Dimensions (PCB) |
30 x 26 x 14mm |
|
Weight |
0.014kg |
| |
|
|

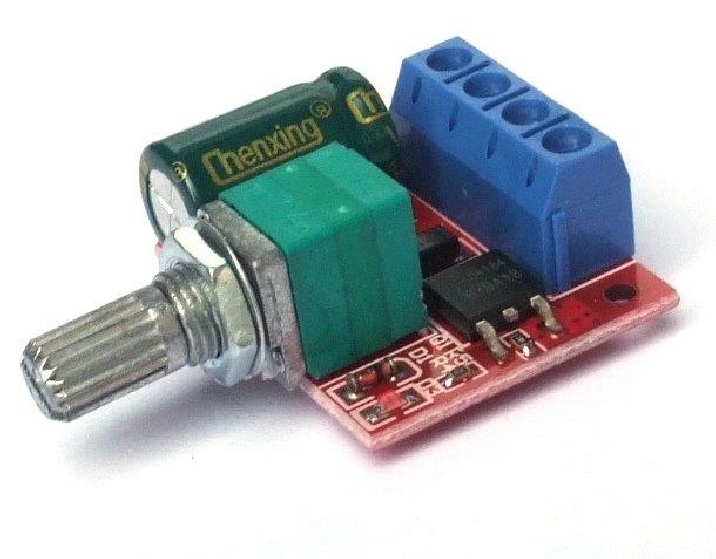

A small, low voltage, motor speed controller using Pulse Width
Modulation (PWM) for an accurate and regulated speed. The duty cycle of
the PWM is fully adjustable between 0 and 100% via a rotary control
which also includes an On / Off switch. A compact design allow the unit
to be incorporated into any small project, making it ideal for model
makers, industry, display projects or the hobbyist |
| Order Code |
|
Each |
|
| 425-115 |
LVMSC5A1
Low Voltage Motor Speed
Controller |
7.25 |
|
|
