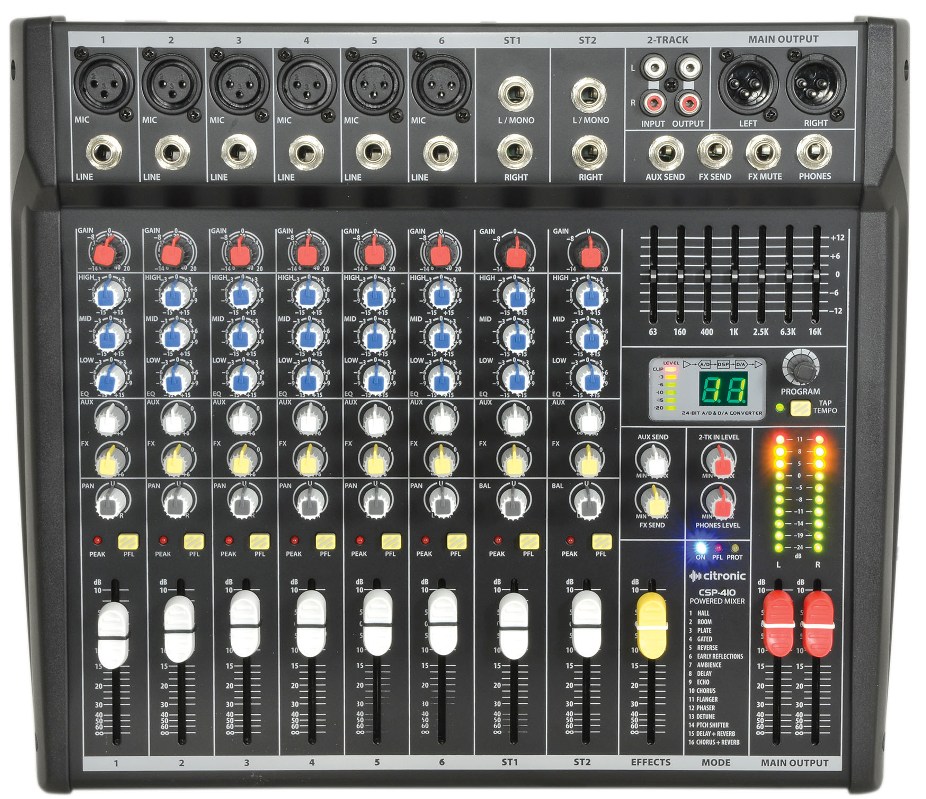

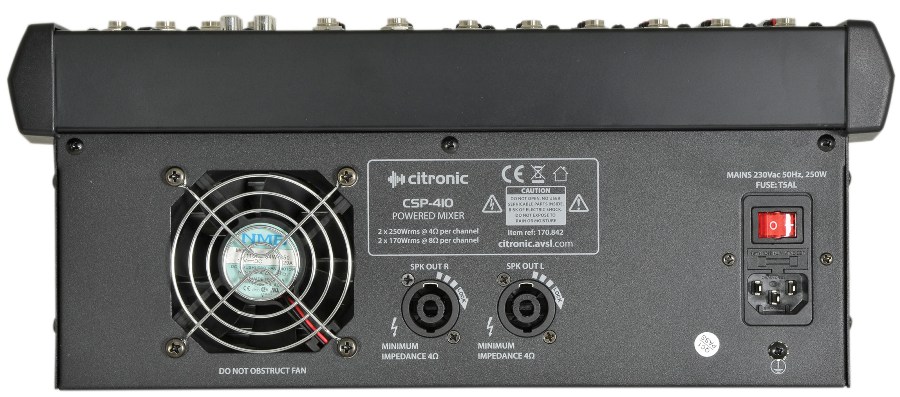

Citronic CSP-410 Powered Mixer


Citronic CSP-410 Powered Mixer

Specifications:

Input Channels
Microphone XLR 2k Balanced
Line Input ¼" Jack 10k Balanced
Tape (Stereo) RCA 240mV
Equalisation
Low

± 15dB 80Hz

Middle ± 15dB 2.5kHz
High

± 15dB 12kHz

Outputs
Line XLR Sockets Balanced
Main Output 2 x Speakon Sockets 200WRMS @4Ω
  130WRMS @8Ω
Record (Stereo) RCA 550mV/1kΩ

Aux Send (Mono) ¼" Jack

1.0V
Main Mixer Section
Headphones

Frequency Response

20Hz - 20kHz

Grahic Equaliser ±12dB@63/160/400/1k/2.5k/6.3k and 16kHz

THD

0.1%

Digital Effects Yes

Power Supply

230V~50Hz 600 Watts

Dimensions

369 x 322 x 153mm

Weight

7.35kg

Download Handbook > Download the Handbook for full specifications and applications
  • 24-bit 16 program DSP effects
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • 48v Phantom Power
  • Internal stereo power amplifier
  • Balanced main outputs
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
CSP-410 Mixer
Order Code   Each
445-870 Citronic CSP-410 Powered Mixer 224.08



  Call in By Phone Order by Post Order Online





sales@esr.co.uk

Tel: 0191 251 4363




• Orders accepted subject to our Terms and Conditions

All Prices are in Pounds Sterling and Exclude VAT
