Velleman DC Pulse Width Modulator Kit Velleman Kits

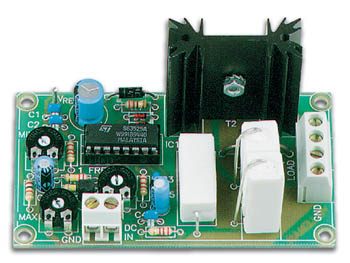

DC to Pulse Width Modulator Kit

Specification Features:
  • Power supply: 8 to 35VDC
  • Maximum output current: 6.5A
  • Input voltage: between 2.5 and 35VDC

Read the fully Illustrated Assembly Manual for WSI8004

 PDF Download

Transformer



Case



Dimensions (PCB)

85 x 48 x 45mm

Weight

150g

This control circuit is ideal for the accurate control of DC motors, lighting levels, small heaters as well as other applications. The circuit converts a DC voltage into a series of pulses, such that the pulse duration is directly proportional to the value of the DC voltage. The great advantage of such a circuit is that almost no power is lost in the control circuit. Protected against overload and short circuit.

For suitable Potentiometers see our resistor section
Order Code   Each
WSI8004 Whadda DC Pulse Width Modulator Kit (PWM) 12.95
