Velleman 10-Channel, 2-Wire Remote Control Kit Velleman Kits

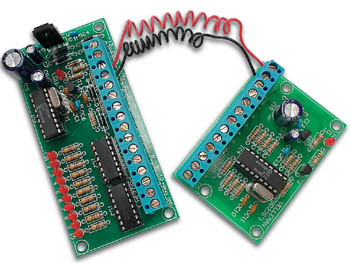

10-Channel, 2-Wire Remote Control Kit

Specification Features:
  • 10 open collector outputs: 50V / 100mA
  • Tested to a distance of up to 50m between control and receiver section
  • Operating voltage: single 12-15V AC or DC, 300mA

Read the fully Illustrated Assembly Manual for K8023

 PDF Download

Transformer



Case



Dimensions (PCB)

Control 70 x 50 x 16mm. Receiver 103 x 50 x 24mm

Weight

kg

This kit allows you to control up to 10 devices using only 2 wires at a long distance. Microprocessor controlled. Inputs can be push-buttons, switches or open collector outputs from another device. The receiver section provides 10 open collector outputs that allow you to control relays directly. Terminal block connectors for all input and output connections are included. All outputs are provided with LED indication. Can be used with kit K8006 and can be connected to our standard relay card K6714-16.
Order Code   Each
WSRC8023 Velleman 10-Channel, 2-Wire Remote Control Kit 20.12
