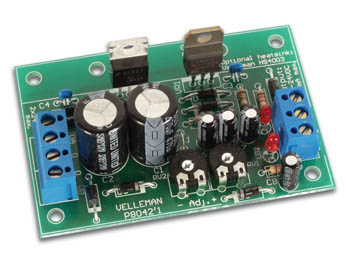

Specification Features:

• Low cost universal symmetric power supply
• Just add a suitable transformer and a heatsink
• Ideal for op-amp applications, amplifiers etc
• Trimmers can be replaced by potentiometers to allow continuous adjustment of output voltage
• LED output indicators
• Adjustable output between 1.2 and 24 Volts DC
• Output current: up to 2 x 1A continuous with suitable heatsink
• Max. input voltage: 2 x 24VAC
• Very good line and load regulation with low ripple
• Short circuit and thermal protection
• Optional heatsink: HS4003 (for maximum 20W dissipation)

• Suitable Transformers:

  • 312-109 1A Chassis Mounting 9-0-9
  • 312-112 1A Chassis Mounting12-0-12
  • 312-115 1A Chassis Mounting 15-0-15
  • 323-022 80VA Toroidal 22-0-22

Transformer

, ,

Case

Dimensions (PCB)

78 x 52mm

Weight

kg
