Specification Features:

• This unit can control DMX fixtures using a PC and USB interface
• Test software and "DMX Light Player" software is included, a DLL is provided to write your own software
• Furthermore there is a stand-alone test function that outputs all 512 channels at a time, with adjustable levels

• Kit includes: enclosure, USB cable, CD with: test software, DLL for own developments, free DMX light player.

• Connected and powered through USB
• 512 DMX channels with 256 levels each
• 3 pin XLR-DMX output connector
• Windows 98SE or higher compatible
• DLL included to write your own software
• Optional 9V battery needed for stand alone test mode
• Solid state - fuse protection on DMX output.

Transformer

Case

Supplied

Dimensions

106 x 101 x 44.5mm

Weight

kg

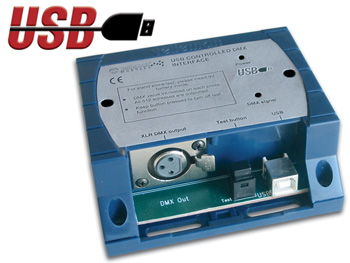

The Velleman WSL8062 is available as a ready built module VM116.

Additional software to up grade and improve this product is available from our download section on this website.
