Velleman Component Tester Kit Velleman Kits

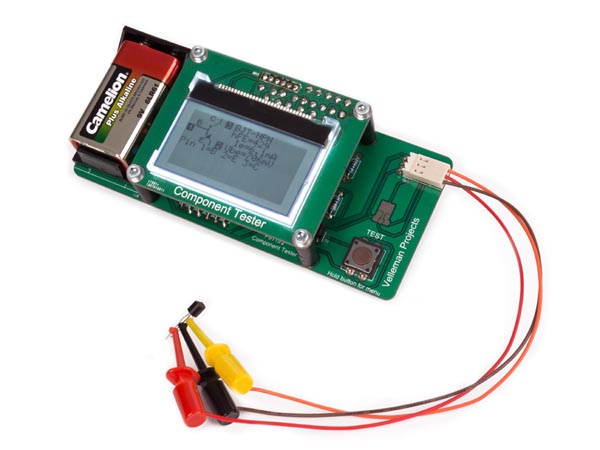

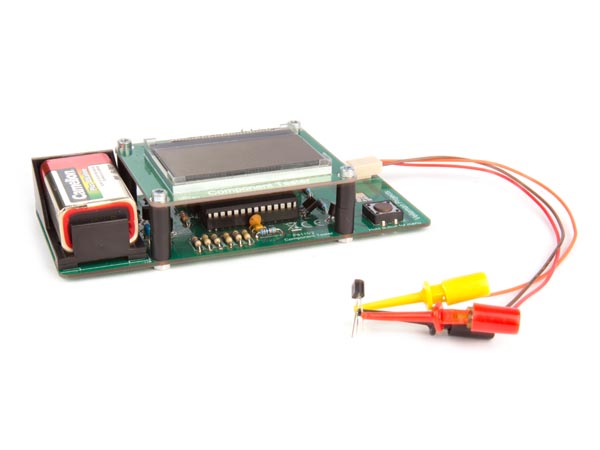

Velleman K8115 Component Tester

K8115 Velleman Component Tester Kit

Velleman Component Tester Kit

Specification Features:

  • Resistance resolution: 0.1 Ohm (max. 50 MOhm)
  • Capacitance range: 28 pF to 100 mF
  • Inductance range: 0.01 mH to 20 H
  • Standby current: 20 nA
  • Power supply: 9 V battery
  • Test current approx.: 20 mA
  • Test speed: 2 seconds
  • auto shutdown
  • shows pin layout

Supported components:

  • BJT
  • JFET
  • E-IGBT
  • D-IGBT
  • E-MOS
  • D-MOS
  • resistors
  • coils
  • capacitors
  • diodes

Read the fully Illustrated Assembly Manual for WSMI8115

PDF Download

Transformer



Case

400-722

Dimensions

137 x 60 x 30mm

Weight

kg


Build your own component tester and receive all useful information about resistors, diodes and many more.
Order Code   Each
WSMI8115 Whadda Component Tester Kit 36.79
