Velleman K8200 3D Printer Kit

Velleman 3D Printer Kit

Specification Features:

Linear ball bearings: 8 and 10mm
Technology: FFF (Fused Filament Fabrication) for PLA and AB
FTDI USB 2.0 to Serial, ArduinoTM compatible (Sanguino derived motherboard)
Dimensions of printable area: 200 x 200 x 200mm
Typical printing speed: 120mm/s
Maximum print speed: 150 to 300mm/s (depending on the object to be printed)
Extrusion nozzle: 0.5mm
Extrusion thermistor: NTC 100K
Extruded aluminium profiles: 27.5mm wide
Movement: 4 NEMA 17 stepper motors
Resolution:

Nominal mechanical resolution:
- X and Y: 0.015mm (smallest step the printing plate can move in the X and Y direction)
- Z: 0.781µm (smallest step the printing plate can move in the Z direction)
Nominal printing resolution:
- Wall thickness (X,Y): 0.5mm
- Layer thickness (Z): 0.20 - 0.25mm
Included: 5m PLA black sample

Download Drivers
	Slic3r configuration file for standard PLA prints. (See manual how to use this file)
	.STL 3D file for the board cover (needs to be sliced before you can print this file, see the manual how to do this).
	.GCODE file for the board cover (can be printed directly with a K8200).
	.STL 3D file for the fan nozzle (needs to be sliced before you can print this file, see the manual how to do this).
	.GCODE file for the fan nozzle (can be printed directly with a K8200).
	Version 1 of the k8200 firmware called Marlin based on Sprinter and grbl Reprap firmware. Copyright (C) 2011 Camiel Gubbels / Erik van der Zalm

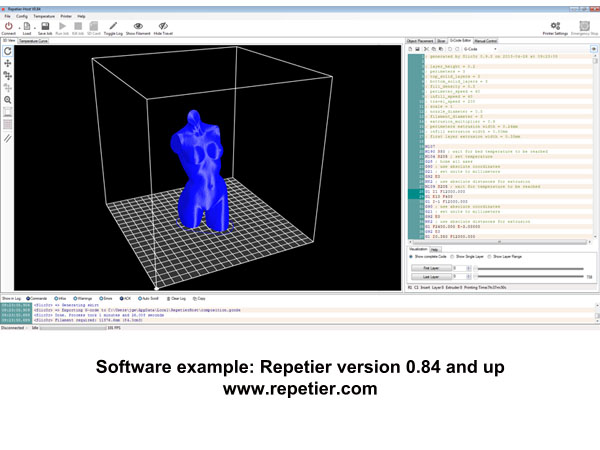

	Software: Repetier version 0.84 and up www.repetier.com

Updating Firmware

Read the fully Illustrated Assembly Manual for K8200

Filament

ABS and PLA (Use Only Velleman Filament Wire)

Power Supply

12V 3A (Included)

Dimensions

600 x 450 x 600mm

Weight

8.7kg

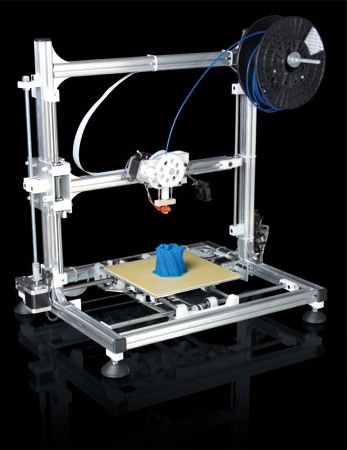

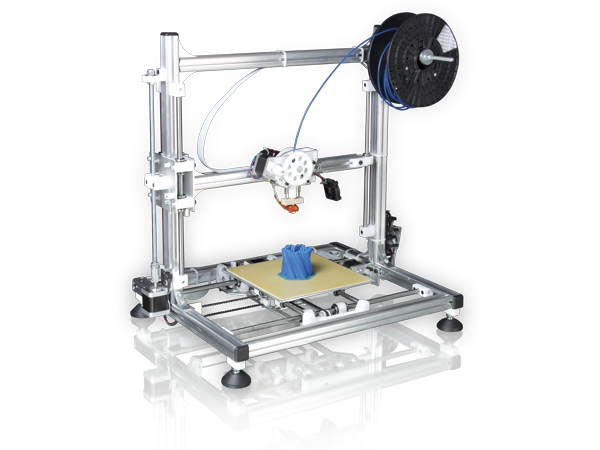

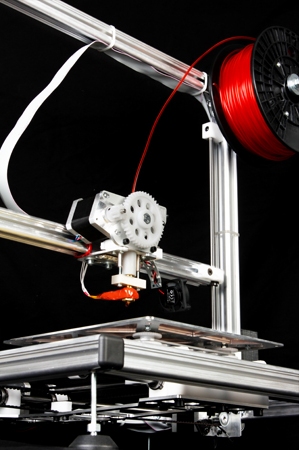

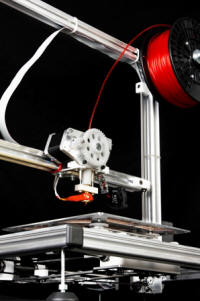

The Velleman K8200 is a build it yourself 3D printer kit to print objects of a maximum 200 x 200 x 200mm using PLA or ABS filament (3mmØ). It is an extremely fast, reliable and precise printer even when printing at higher speeds. The K8200 3D printer is compatible with all free RepRap software and firmware. Build your own 3D Printer, it is made out of aluminium profiles and is easy to assemble, it leaves room to the user to freely alter the machine and modify it to their liking. The print bed is heated (Glass Plate available separately), use only Velleman ABS or PLA filament wire. An LED light VM8202 is available to purchase, to help make accurate nozzle height adjustment or late night printing. VM8201 Stand alone controller for K8200 3D printer, no need to tie up your computer. The K8200 printer can be modified to print with 1.75mm Filament by fitting the K8203 nozzle kit.

The K8200 printer requires a computer to print (MAC, WIN or LINUX) and an internet connection to use the online manual and building instructions.
