Velleman Arduino RGB Shield Velleman Kits

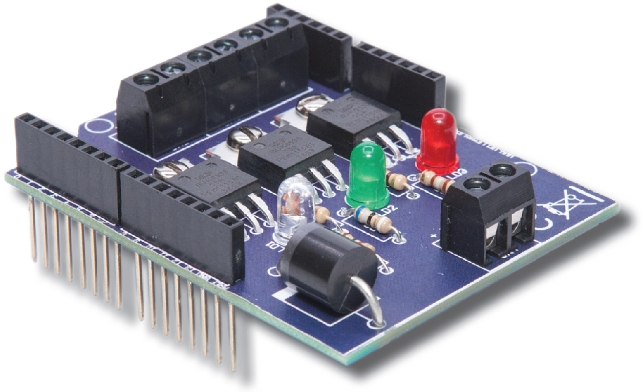

Velleman RGB Shield

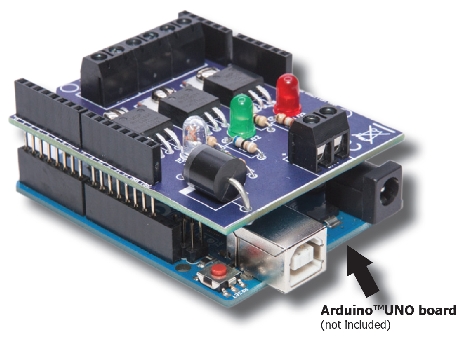

Velleman RGB Shield fitted to Arduino UNO Board

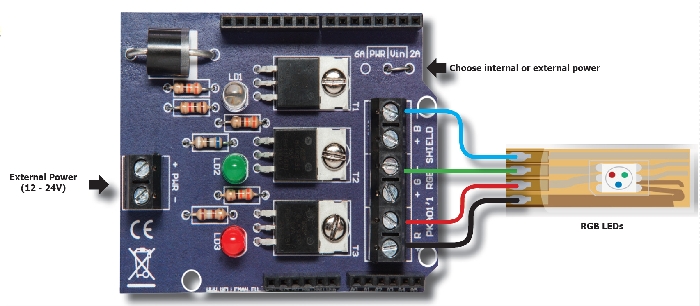

Velleman RGB Shield wiring and Connections

Specification Features:
  • Downloadable example sketch
  • Stackable design: the shield can be stacked with other shields
  • Large user community
  • Requires 1 Arduino™ UNO (not included)
  • 2 Amp load via Vin or 6 Amp load via external power
  • Uses pin 3, 5, 6 PWM on an Arduino™ UNO board

Data Sheet for WPK01

 PDF Download

Power Supply

12 or 24V (External Power Supply)

Case



Dimensions

75 x 55 x 25mm

Weight

kg

A simple plug in self assemble kit (Shield) to control 3 independent dimmer channels or RGB with an Arduino™ UNO. (Arduino motherboard not supplied). See Arduino Section for suitable Boards
The Velleman WPK01 is available as a ready built module VMA01
Order Code   Each
WPK01 Whadda RGB Shield for Arduino™ Board 13.50
