Velleman Interval Timer Mini kit Velleman Kits

Interval Timer Mini kit

Interval Timer

Specification Features:
  • Output relay with dry switch-over contact: 3A/24V
  • Pulse time adjustable: between 0.5 and 5s
  • Pause time adjustable: between 2.5 and 60s
  • Power supply: 12Vdc / 100mA

Read the fully Illustrated Assembly Manual for WST111

 PDF Download

Transformer



Case



Dimensions (PCB)

40 x 85mm

Weight

kg

For intermittent operation of circuits and equipment. Blinking light, video/photo single frame shooting, slide projector control, miniature models.

The Velleman MK111 is also available as a ready made module VM136


This self assembly electronic kit is now available ready to fit in to a DIN rail case. It has the same characteristics as the WST111 and can be used for the same applications.

It is supplied with a high quality PCB and DIN rail enclosure D2MG.

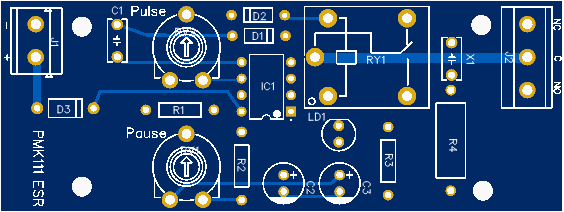

 WST111 PCB DIN Rail Enclosure
Order Code   Each
WST111 Whadda Interval Timer 4.90
WST111DR Whadda Interval Timer, including PCB and DIN Rail enclosure 10.34
