Velleman LED Buddy Mini kit Velleman Kits

LED Buddy Mini kit

Velleman LED Buddy Mini kit

LED Buddy

LED Buddy kit

Velleman LED Buddy

Velleman LED Buddy kit

Specification Features:
  • 8 x 2 character LCD
  • Auto-calculates the series resistor (E12 series)
  • Detects a LED's polarity
  • Measures the LED's forward voltage
  • Adjustable target current
  • Adjustable target voltage
  • Contact pads
  • Power switch
  • Calculated voltage adjustable from: 0 - 30 V
  • Calculated current adjustable from: 2 - 26 mA
  • Current consumption: 40 mA (when testing a LED)
  • Supply Voltage 9Vdc (Battery)

Read the fully Illustrated Assembly Manual for WSMI198

 PDF Download

Battery

PP3

Case



Dimensions (PCB)

75 x 32 x 48mm

Weight

kg

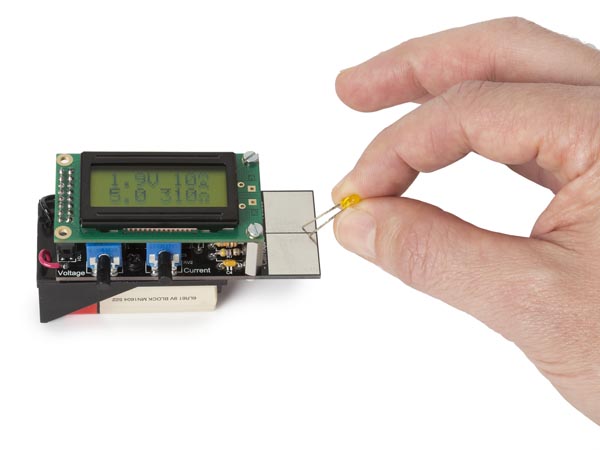

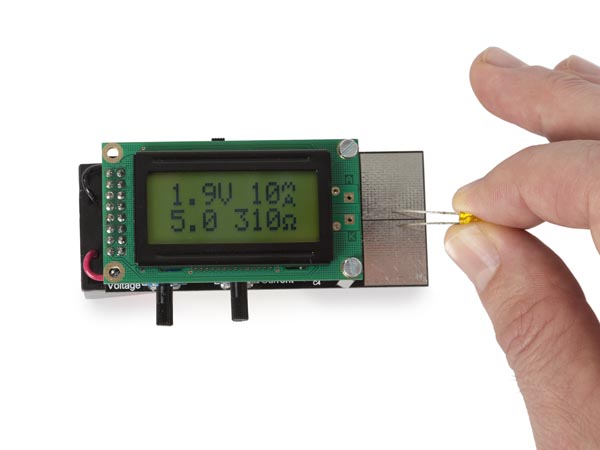

The LED Buddy can help you to design any electronic circuit that includes one or more LED's. Hold any type of LED to the contact pads of the LED Buddy to start the process. It detects the polarity of the LED, measures the forward voltage and auto-calculates the series resistors that you need to use.
The compact size and durable materials ensure that this useful tool is the best buddy any maker can have. No more circuit troubles!
Order Code   Each
WSMI198 Whadda LED Buddy Mini kit 13.88
