Velleman Class D 2.8W Stereo Audio Amplifier Velleman Kits

Class D 2.8W Stereo Amplifier

Specification Features:
  • Max output power: 2.8 W (4 Ω) or 1.6 W (8 Ω
  • Max. current consumption: 3.2 A (4 Ω) - 1.6 A (8 Ω)
  • Default gain: 18 dB (adjustable)
  • THD: 0.02 % (1 W / 8 Ω / 1 kHz)
  • S/N ratio: 98 dB (1.4 W / 8 Ω)
  • Shutdown current: 40nA
  • Power supply: 2.5 V - 5 V DC

Read the Data Sheet for MM210

 PDF Download

Transformer



Case



Dimensions (PCB)

40 x 20mm

Weight

kg

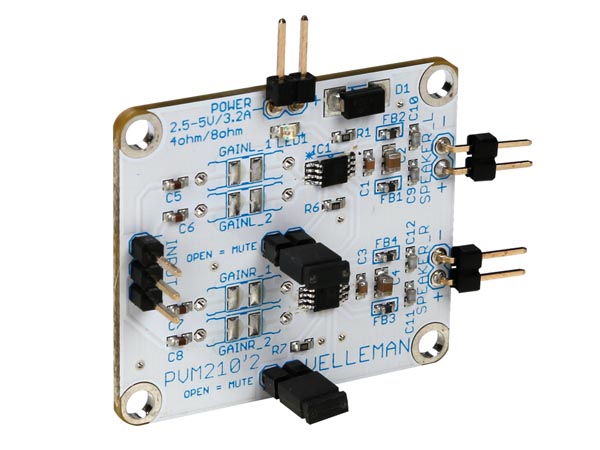

The MM210 mini module from Velleman is a small but powerful amplifier for a wide range of applications. It is very efficient so ideal for battery powered applications e.g. MP3 player, melody generator, intercom, sound effects, headphones, radio receiver, PC sound card, musical instrument, ... Comes complete with board-to-wire connectors
which matches standard breadboard pitch. It has a presettable gain, overload and short-circuit protected and runs on a single rail power supply.
Order Code   Each
MM210 Velleman Class D 2.8W Stereo Amplifier 14.99
