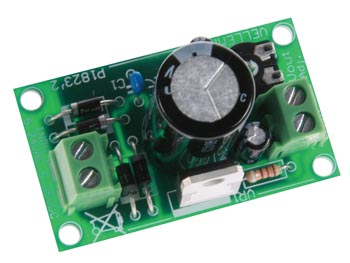

Velleman 1A Power Supply Module

Specification Features:

  • Min. output voltage: 1,2V
  • Max. output current: 1A
  • Max. output voltage: 30VDC
  • Very low ripple (80 dB rejection)
  • Short-circuit, thermal and overload protection
  • Max. input voltage: 24VAC or 35VDC
  • Max. dissipation: 15W (with heat sink)

Read the fully Illustrated Manual for WMPC124

PDF Download

Transformer

311-409 (0 - 9V), 311-412 (0 - 12V), 312-112 (12  0 - 12V)



Dimensions

52 x 30 x 35mm

Weight

kg


Small power supply provides a regulated voltage, adjustable between 1.5 and 35 volts at 1 Amp. Current limiter and thermal overload protection are included in the IC. Supplied without heat sink. This module can be run directly from a 16Vac train transformer and adjusted to give you a 12Vdc supply.
Order Code   Each
WMPC124 Whadda 1A Power Supply Module 7.60
