Velleman Oscilloscope and Logic Analyzer Shield for Raspberry PI Velleman Kits

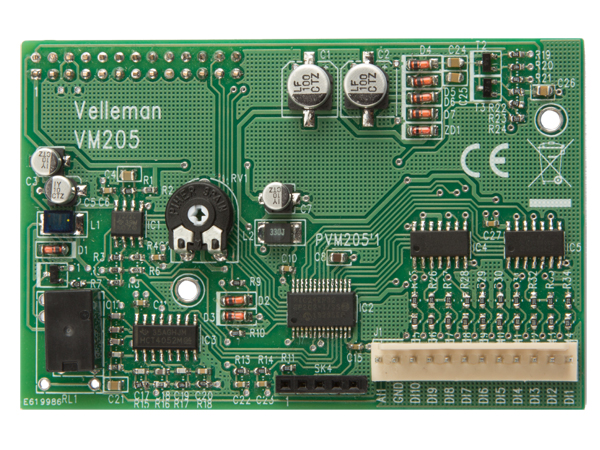

Oscilloscope and Logic Analyzer Shield for Raspberry PI

Oscilloscope and Logic Analyzer for Raspberry PI

Raspberry PI not included

Raspberry PI Shield

Specification Features:

  • Oscilloscope:
    • Maximum sample rate : 1MS/s
    • Input amplifier bandwidth : 200kHz (-3dB)
    • Measurements can be performed up to: 100kHz
    • Input impedance : 100kohm // 20pF
    • Maximum input voltage: 30Vp (AC + DC)
    • Input coupling: AC+DC
    • AD resolution: 8 bit
    • Record length: 800 samples
    • Run modes: Run, Single
    • Trigger level adjustable: in 254 steps
    • Timebase range: in 15 steps 5µs to 200ms/division
    • Input sensitivity range : in 6 steps, 100mV/division to 5V/division
    • Input sensitivity: 3mV display resolution
    • Time and Voltage markers readout
    • Frequency readout (through markers)
  • Logic analyzer:
    • Number of channels: 10
    • Record length: 10x800 samples
    • Maximum sample rate: 1MS/s
    • Max. input voltage: 5VDC

Read the fully Illustrated Manual for WPSH206

PDF Download

Power Supply

Vdc

Case



Dimensions

mm

Weight

kg

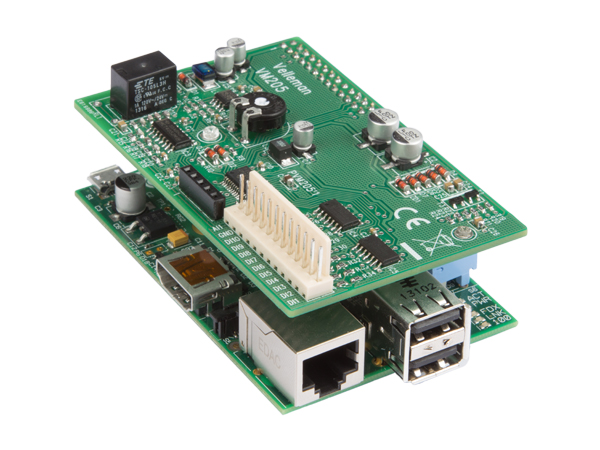

You own a RaspberryPi? Add this shield and you also own a digital storage oscilloscope! All standard oscilloscope features are available and the application source code is supplied, so you can develop your own application. As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals. Not compatible with Model Pi3B+
Additional software to up grade and improve this product is available from the Velleman support section on there website.

Order Code   Each
WPSH206 Whadda Oscilloscope and Analyser Shield for Raspberry PI 36.71
