Velleman Arduino Motor and Power Shield Velleman Kits

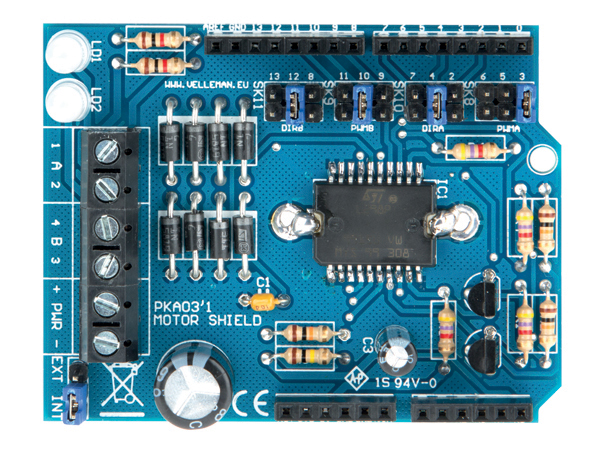

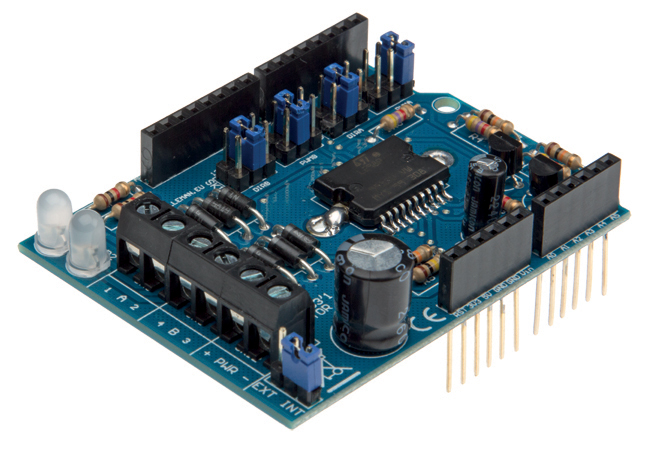

Velleman Motor and Power Shield (Module)

Velleman Motor and Power Shield (Module)

Velleman Motor and Power Shield (Module)

Specification Features:
  • 2 channels
  • Choose between an external or internal (Vin) power supply
  • Based on the dual full bridge driver L298P
  • Downloadable sample sketch
  • Stackable design: the shield can be stacked with other shields
  • Large user community
  • 2.5 A (max.) output current (each channel)
  • 50 V (max.) external power supply input
  • Used pins on an Arduino™ UNO board can be selected to accommodate for other stacked shields
    		•

    Data Sheet for VMA03

    		 PDF Download

    Power Supply



    Case



    Dimensions

    75 x 55 x 30mm

    Weight

    kg

    A simple plug in module (Shield) that can drive: relays, solenoids, DC and stepper motors with an Arduino™ UNO. (Arduino motherboard not supplied).

    Arduino-UNOR3
    Order Code   Each
    VMA03 Velleman Motor and Power Shield for Arduino™ Uno 25.74
