Velleman VMA11 Module for Arduino UNO

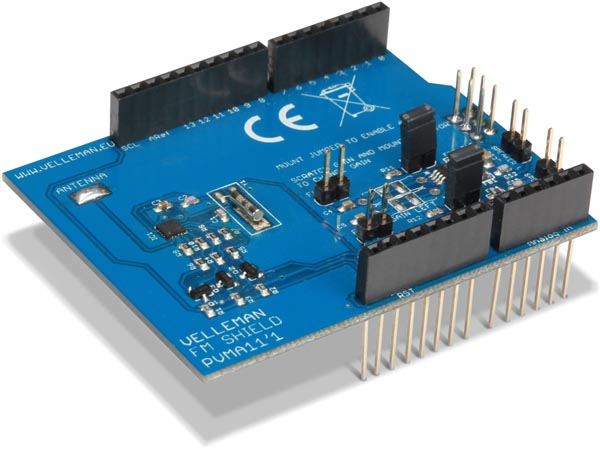

Velleman VMA11 FM Radio Shield Module

Velleman FM Radio Shield Module for Arduino

Specification Features:
  • Worldwide FM support
  • RDS/RBDS support
  • Volume control
  • Automatic frequency control
  • Automatic gain control
  • Arduino® library available
  • Class D 2.8 W amplifier
  • Interface: I2C
  • Power / logic level: 3.3 V
  • Sensitivity: 1.7 µ Vemf
  • Max. output power: 2.8 W (4 Ohm) or 1.6 W (8 Ohm)
  • Default gain: 18 dB (8 x) (adjustable)
  • THD: 0.02 % (1 W 8 Ohm / 1 kHz)
  • S/N ratio: 98 dB (1.4 W / 8 Ohm)

Data Sheet for VMA11

 PDF Download

Power Supply



Case



Dimensions

70 x 55 x 23mm

Weight

kg

The VMA11 is a radio and RDS receiver combined with a powerful and efficient 2.8 W class D audio amplifier. All of this is designed in the familiar Arduino formfactor. In short, this module is ideal if you want to create your own clock radio or if you want to add FM functionality to your projects! For use with an Arduino™ UNO. (Arduino motherboard not supplied).

Arduino-UNOR3
Order Code   Each
VMA11 Velleman FM Radio Shield Module for Arduino™ UNO Board 22.99
