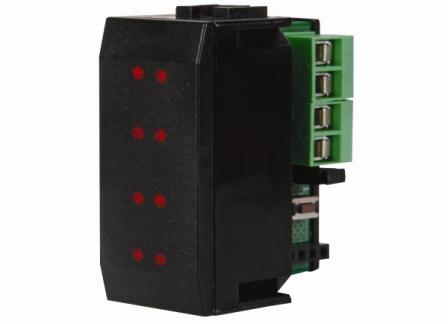

Velleman Velbus Infrared Receiver with 8-Channel LED Feedback

Specification Features:

IR remote control for the Velbus system
up to 40 channels
8-channels feature an indication LED
Controllable through a universal remote control from the Logitech Harmony® series
Possibility to disable each channel so it won't react
Configuration is saved after power failure
2-wire communication for Velbus data and 2 wires for power
Reaction time per channel settable between 0, 1, 2 or 3 seconds
Transmission/receiving range: +/- 8m
IR modulation system: RECS80 with pulse position
Power voltage: 12...18VDC
Consumption in stand-by: 20mA
Maximun consumption: 35mA

Read the fully Illustrated Manual for VMB8IR

Power Supply

Case

Dimensions

22 x 46 x 43mm

Weight

75g

This wireless IR receiver allows you to control up to 40 pushbuttons in your home, as well as check the status of 8 lighting points so as to control your hidden consumption. In addition, the Logitech Harmony® allows to label and to display each pushbutton.

Now you can operate your Velbus installation wirelessly with the Logitech Harmony®. Increase the user-friendliness of the VMB8IR by controlling each channel individually (using IR).

Velbus Home Automation System for applications and examples of installations download introduction manual

Order Code		Each
VMB8IR	Velleman Velbus Infrared Receiver with 8-Channel LED Feedback	33.05
