  Cebek Electronic Kits

Cebek 12V Power Supply 130mA



Cebek 12V Power Supply 130mA

Specifications:
Reference FE-103

Output 12VDC@130mA
Ripple 5mV
Power Supply 230VAC
Dimensions 72 x 54 x 30mm
Weight 162g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7563 >

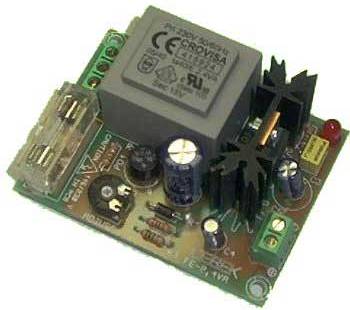

The Cebek FE-103 module is a single rail 12VDC stabilized power supply. It can deliver a maximum of 130mA, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (10 - 15VDC), to allow for long cable runs and supply voltage variations. The FE-103 module has a small enclosed transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-103 Cebek 12V Power Supply 130mA 12.66
