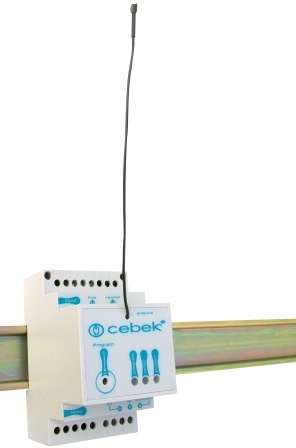

Cebek 1-Channel DIN Rail RF Receiver



Cebek 1-Channel DIN Rail RF Receiver Group 3

Specifications:
Reference TL-312
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 1
Relay Output 5A
Consumption mA
Power Supply 230VAC
Dimensions 90 x 70mm
Weight 230g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-312 is a single channel 230Vac RF remote control receiver with relay output. The receiver module can be configured for momentary (Pressing the switch on the transmitter operates the relay, releasing the switch the relay deactivates) or latching action (Pressing the switch on the transmitter operates the relay, pressing the switch again deactivates the relay). It also has a built in timer which can be adjusted between 0.1 and 132 seconds. This transmitter uses an exclusive single identification code. The synchronisation is done by programming the receiver to allow it to recognize identification codes for a maximum of 5 transmitters. As the receiver's memory is FIFO, once you have synchronised 5 transmitters, the next transmitter programmed will be placed on the memory used by the first one, an the following one will substitute the memory initially destined to the second and so on. The TL-310 remote control receiver can be paired with TL-300 transmitter. This Cebek transmitter is ideal for installing in your bespoke industrial control application. They have many uses such as garden gate opener, roller shutter remote, garage door opener, car or vehicle immobiliser, remote barrier control and remote stopping or starting of plant or machinery.




Related Products::
Antenna C-0509

Order Code   Each
TL-312 Cebek 1-Channel 230VAC DIN Rail RF Receiver (Momentary/Latching) 45.41
