Cebek 99-Channel Multiplex Transmitter


Cebek 99-Channel Multiplex Transmitter
Specifications:
Reference TL-50


Consumption 50mA
Power Supply 5VDC
Dimensions 90 x 61 x 15mm
Weight 68g
Technical Information > Download the Handbook for full specifications and applications

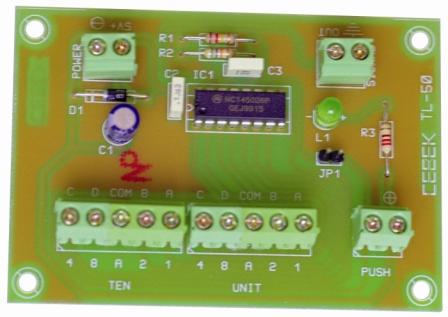

The Cebek TL-50 is a central control for transmitting signals to Cebek receivers via two cables. It allows controlling of 99 different channels. The channel selection is done thanks to BCD pre-selectors, included in the module. With them, you could select the number of decimal corresponding to the channel that you wish to control and you only have to press the confirmation to send the order. It includes connection terminals and indication LED's. Power is supplied through the booster modules.
Will Operate with the following Receivers
Single Channel Momentary Action TL-60
Two Channel Momentary Action TL-61
Single Channel Latching Action TL-62
Two Channel Latching Action TL-63

Related Products::



Order Code   Each
TL-50 Cebek 99-Channel Multiplex Transmitter 14.61
