Mini XLR Adaptors

2.5mm Jack Socket - 4-Pole Mini XLR Socket
Specifications:
Contacts Nickel-plated
Body Plastic


Weight kg
Adaptor for use with head worn microphones which terminate with a 2.5mm stereo jack plug. This adaptor is fitted with polarizing resistor (3K3) for electret microphone capsule. Suitable for use with belt packs fitted with 4-Pole mini XLR plugs.
NTA-4M Wiring Diagram
Order Code   1+
NTA-4M 2.5mm Jack Socket - 4-Pole Mini XLR Socket 9.95



2.5mm Jack Socket - 3.5mm Jack Plug
Specifications:
Contacts Nickel-plated
Body Plastic


Weight kg
Adaptor for use with head worn microphones which terminate with a 2.5mm stereo jack plug. This adaptor is suitable for use with belt packs fitted with 3.5mm jack sockets.

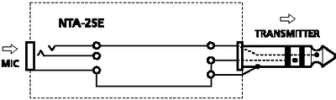

NTA-2SE Wiring Diagram
Order Code   1+
NTA-2SE 2.5mm Jack Socket - 3.5mm Jack Plug 9.95



2.5mm Jack Socket - 3-Pole Mini XLR Socket
Specifications:
Contacts Nickel-plated
Body Plastic


Weight kg
Adaptor for use with head worn microphones which terminate with a 2.5mm stereo jack plug. This adaptor is fitted with polarizing resistor (3K3) for electret microphone capsule. Suitable for use with belt packs fitted with 3-Pole mini XLR plugs.
NTA-3A Wiring Diagram
Order Code   1+
NTA-3A 2.5mm Jack Socket - 3-Pole Mini XLR Socket 9.95



2.5mm Jack Socket - 4-Pole Mini XLR Socket
Specifications:
Contacts Nickel-plated
Body Plastic


Weight kg
Adaptor for use with head worn microphones which terminate with a 2.5mm stereo jack plug. This adaptor is fitted with polarizing resistor (3K3) for electret microphone capsule and 10µf decoupling capacitor. Suitable for use with belt packs which use 4-Pole mini XLR plugs and use pin 4 for signal.
NTA-4SH Wiring Diagram
Order Code   1+
NTA-4SH 2.5mm Jack Socket - 4-Pole Mini XLR Socket (All pins connected) 9.95



Mini XLR Plug - XLR Plug
Specifications:
Contacts Nickel-plated
Body Metal

Dimensions 92 x 19mmØ
Weight 80g
Download Instructions >
This adapter will allow electret microphones which terminate in a 3-Pole mini XLR socket. To be connected to a standard 3-Pole XLR microphone socket found on most mixing desks. The mixer must have a phantom power supply suitable for the microphone connected, typically between 9 and 48V dc.
Order Code   1+
EMA-300P Mini XLR Plug - XLR Plug 19.90
