Cable - Speaker

General grade flexible stranded Figure-8 speaker cable, ideal for the budget conscious shopper. Suitable for TV/Radio extension speakers or satellite surround sound speakers. Coloured polarity line indication. (100M Reel)

Order Code	Ref	Cross Sectional Area	Strands	Maximum Current	Size	Jacket Colour
052-100	-	0.22mm²	7/0.2mm	1.0A	2.0 x 4.0mm	Grey
052-110	-	0.40mm²	13/0.2mm	2.5A	2.0 x 4.0mm	Grey
052-120	-	0.75mm²	26/0.2mm	6.0A	2.5 x 5.0mm	White

Order Code		Metre	Reel
052-100	2-Core Grey Speaker Cable 1.0A Max	0.21	6.42
052-110	2-Core Grey Speaker Cable 2.5A Max	0.24	6.42
052-120	2-Core White Speaker Cable 6.0A Max	0.34	15.82

Heavy duty flexible stranded Figure-8 speaker cable, this cable is suitable for replacement or extension cable on home hi-fi systems. Can be used for surround sound systems, easy to conceal. Coloured polarity line indication. (100M Reel)

Order Code	Ref	Cross Sectional Area	Strands	Maximum Current	Size	Jacket Colour
052-130	-	1.32mm²	42/0.2mm	15.0A	3.0 x 6.0mm	White
052-139	-	1.32mm²	42/0.2mm	15.0A	3.0 x 6.0mm	Black
052-140	-	2.5mm²	79/0.2mm	25.0A	4.0 x 8.0mm	White
052-149	-	2.5mm²	79/0.2mm	25.0A	4.0 x 8.0mm	Black

Order Code		Metre	Reel
052-130	White 2-Core Fig 8 Speaker Cable 15.0A Max	0.89	26.58
052-139	Black 2-Core Fig 8 Speaker Cable 15.0A Max	0.89	26.58
052-140	White 2-Core Fig 8 Speaker Cable 25.0A Max	1.24	45.83
052-149	Black 2-Core Fig 8 Speaker Cable 25.0A Max	1.24	45.83

A high quality "Fig 8" speaker cable for the audiophile. Each core is made up of Oxygen Free Copper (OFC) strands in a transparent sheath with red line for polarity identification. This type of cable is preferred by the serious HiFi enthusiast and can give audible improvements to your system. (100M Reel)

Order Code	Ref	Cross Sectional Area	Strands	Maximum Current	Size	Jacket Colour
052-152	-	1.0mm²	126/0.1mm	10.0A	3.4 x 6.8mm	Transparent
052-153	-	1.5mm²	192/0.1mm	15.0A	3.5 x 7.0mm	Transparent
052-154	-	2.5mm²	326/0.1mm	25.0A	4.3 x 8.6mm	Transparent
052-156	-	4.0mm²	521/0.1mm	40.0A	5.0 x 10.0mm	Transparent

Order Code		Metre	Reel
052-152	Transparent 2-Core Fig 8 OFC Speaker Cable 10.0A	0.74	23.58
052-153	Transparent 2-Core Fig 8 OFC Speaker Cable 15.0A	1.09	32.50
052-154	Transparent 2-Core Fig 8 OFC Speaker Cable 25.0A	1.99	55.00
052-156	Transparent 2-Core Fig 8 OFC Speaker Cable 40.0A	2.63	103.25

High quality flat speaker cable, manufactured with oxygen free copper (OFC) stranded copper conductors and a flexible PVC sheath. This type of cable is suitable for in-car and domestic Hi-Fi applications. It is available in a 2 core 25A (100M Reel) or 4 core 10A (50M Reel), polarity identification marked on outer sheath

Order Code

Ref

Cross Sectional

Area

Strands

Maximum

Current

Size

Jacket Colour

052-164

1.0mm²

89/0.12mm

10.0A

3.0 x 14.0mm

Blue

Order Code		Metre	Reel
052-164	4-Core Low Profile Blue Speaker Cable 10A Max	1.49	26.83

High quality 2 core double insulated speaker cable suitable for 100V line applications. Red and black PVC insulation, stranded copper conductors with overall PVC sheath. (100M Reel)

Order Code	Ref	Cross Sectional Area	Strands	Maximum Current	Size	Jacket Colour
052-195	E548AC	0.72mm²	20/0.25mm	6.0A	6.0mmØ	Black
052-200	-	1.5mm²	45/0.2mm	15.0A	7.8mmØ	Black
052-205	-	2.5mm²	79/0.2mm	25.0A	8.8mmØ	Black

Order Code		Reel
052-195	2-Core Black Speaker Cable 6A Max	35.40
052-200	2-Core Black Speaker Cable 15A Max	45.00
052-205	2-Core Black Speaker Cable 20A Max	53.25

Heavy duty highly flexible "Road-Proof" speaker cable, constructed from oxygen free copper. The tough durable sheath provides adequate mechanical protection while it's composition will allow it to be coiled and un-coiled many times. Ideal for making custom length speaker leads. (100M Reel)

Order Code	Ref	Cross Sectional Area	Strands	Maximum Current	Size	Jacket Colour
052-190	SPK-275	0.75mm²	49/0.14mm	10.0A	6.5mmØ	Blue
052-210	SPK-215	1.5mm²	20/0.12mm	15.0A	8.0mmØ	Blue
052-220	SPK-225	2.5mm²	30/0.12mm	25.0A	9.0mmØ	Blue

Order Code		Metre	Reel
052-190	Dap Audio 2 Core Blue Speaker Cable 10A Max	0.67	45.00
052-210	Dap Audio 2 Core Blue Speaker Cable 15A Max	0.99	85.10
052-220	Dap Audio 2 Core Blue Speaker Cable 25A Max	1.20	105.00

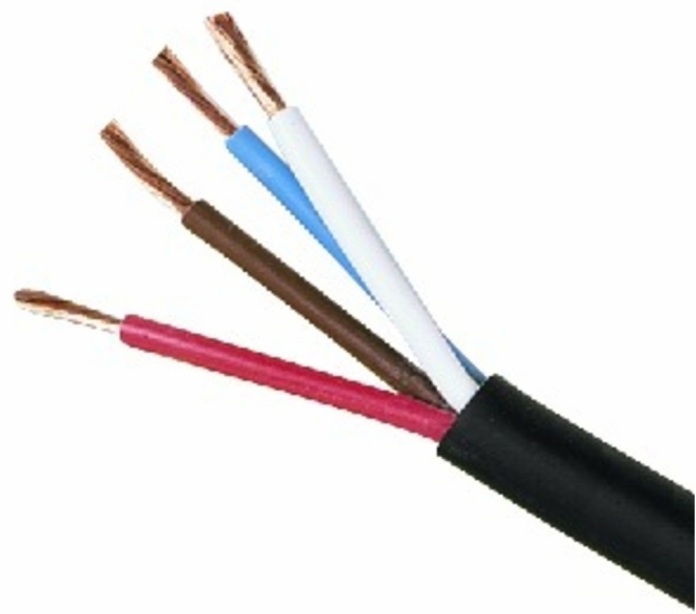

Heavy duty highly flexible "Road-Proof" speaker cable, constructed from oxygen free copper. Ideal cable for use with 4-Pole Neutrik Speakon Plugs The tough durable sheath provides adequate mechanical protection while it's composition will allow it to be coiled and un-coiled many times. Ideal for making custom length speaker leads. (50M Reel)
