3 Way DIN Line Plug - Black
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
3-Pin DIN Plug, two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
080-010 3 Way DIN Line Plug - Black 0.42 0.36 0.30



3 Way DIN Chassis socket
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 3-Pin
Order Code   1 10+ 25+
080-012 3 Way DIN Chassis socket 0.44 0.35 0.32



4 Way DIN Line Plug 4 Way DIN Line Socket
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
4-Pin DIN Plug and Socket, two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
081-010 4 Way DIN Line Plug 0.58 0.46 0.41
081-011 4 Way DIN Line Socket 0.53 0.45 0.38



4 Way DIN Chassis socket
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 4-Pin
Order Code   1 10+ 25+
081-012 4 Way DIN Chassis socket 0.34 0.28 0.22



5 Way 180° DIN Line Plug - Black 5 Way 180° DIN Line Socket - Black
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
5-Pin DIN Plug and Socket (180º), two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
082-010 5 Way 180° DIN Line Plug - Black 0.27 0.18 0.16
082-011 5 Way 180° DIN Line Socket - Black 0.28 0.25 0.22



5 Way 180° DIN Chassis socket
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 5-Pin 180º
Order Code   1 10+ 25+
082-012 5 Way 180° DIN Chassis socket 0.28 0.23 0.20



5 Way 240° DIN Line Plug - Black 5 Way 240° DIN Line Socket
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
5-Pin DIN Plug and Socket (240º), two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
083-010 5 Way 240° DIN Line Plug - Black 0.30 0.24 0.22
083-011 5 Way 240° DIN Line Socket 0.40 0.32 0.28



5 Way 240° DIN Chassis socket
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 5-Pin 240º
Order Code   1 10+ 25+
083-012 5 Way 240° DIN Chassis socket 0.30 0.27 0.24



6 Way DIN Line Plug - Black 6 Way DIN Line Socket - Black
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
6-Pin DIN Plug and Socket, two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
085-010 6 Way DIN Line Plug - Black 0.32 0.26 0.21
085-011 6 Way DIN Line Socket - Black 0.34 0.28 0.23



6 Way DIN Chassis socket
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 6-Pin
Order Code   1 10+ 25+
085-012 6 Way DIN Chassis socket 0.38 0.34 0.31



7 Way DIN Line Plug - Black 7 Pin DIN Line Socket - Black
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
7-Pin DIN Plug and Socket, two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
086-010 7 Way DIN Line Plug - Black 0.38 0.35 0.25
086-011 7 Pin DIN Line Socket - Black 0.39 0.29 0.26



7 Way DIN Chassis Socket
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 7-Pin
Order Code   1 10+ 25+
086-012 7 Way DIN Chassis Socket 0.37 0.33 0.30



8 Way DIN Plug - Black
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
8-Pin DIN Plug, two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
087-010 8 Way DIN Plug - Black 0.30 0.24 0.22



8 Way DIN Chassis Socket
Specifications:
Contacts Nickel-plated
Body Metal
Connection Solder
Panel Cut-out mmØ
Fixing Centres mm
Subject to technical modifications.
Chassis mounting DIN socket, 8-Pin
Order Code   1 10+ 25+
087-012 8 Way DIN Chassis Socket 0.36 0.32 0.29



13 Way High Density DIN Line Plug - Black
Specifications:
Contacts Nickel-Plated
Body Plastic
Connection Solder
Cable Size 8mmØ

Subject to technical modifications.
13-Pin DIN Plug, two part metal body held in place with push on plastic sleeve. Cable secured with crimp termination.
Order Code   1 10+ 25+
089-310 13 Way High Density DIN Line Plug - Black 0.96 0.86 0.82

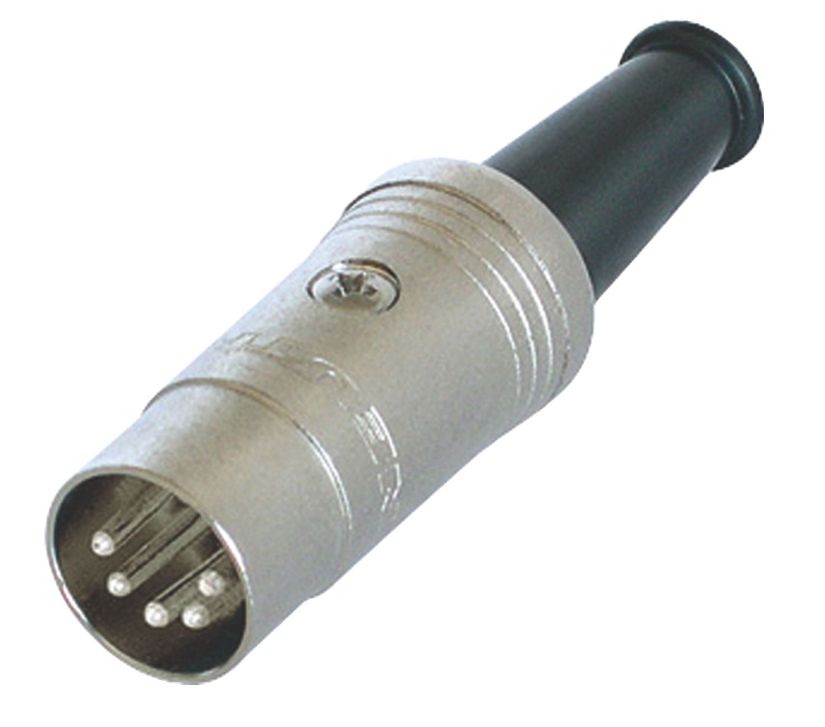

5 Way 180° DIN Line Plug - Metal
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
5-Pin DIN Plug, all metal body, soft plastic strain relief. Cable secured with crimp termination.
Order Code   1 10+ 25+
082-013 5 Way 180° DIN Line Plug - Metal 1.10 0.97 0.88



6 Way DIN Line Plug - Metal
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder
Cable Size 6mmØ

Subject to technical modifications.
6-Pin DIN Plug, all metal body, soft plastic strain relief. Cable secured with crimp termination.
Order Code   1 10+ 25+
085-013 6 Way DIN Line Plug - Metal 1.46 1.17 1.05

5 Way 180° DIN PCB Mounting Socket
Specifications:
Contacts Nickel-plated
Body Plastic
Connection PCB


Subject to technical modifications.
5-Pin PCB mounting 180º DIN socket.
Order Code   1 10+ 25+
082-016 5 Way 180° DIN PCB Mounting Socket 0.25 0.20 0.18
