9 Way D Plug (Male) - Solder Bucket 9 Way D Socket (Female) - Solder Bucket
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder


Subject to technical modifications.
Standard 9-way 'D' Type connectors with solder bucket terminations. Suitable for cable mounting with our range of covers or for chassis mounting with our jack posts.
Order Code   1 10+ 25+
109-010 9 Way D Plug - Solder Bucket 0.20 0.13 0.12
109-013 9 Way D Socket - Solder Bucket 0.20 0.13 0.12



15 Way D Plug (Male) - Solder Bucket 15 Way D Socket (Female) - Solder Bucket
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder


Subject to technical modifications.
Standard 15-way 'D' Type connectors with solder bucket terminations. Suitable for cable mounting with our range of covers or for chassis mounting with our jack posts.
Order Code   1 10+ 25+
109-011 15 Way D Plug - Solder Bucket 0.21 0.14 0.13
109-014 15 Way D Socket - Solder Bucket 0.25 0.17 0.15



23 Way D Plug (Male) - Solder Bucket
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder


Subject to technical modifications.
23-way 'D' Type plug with solder bucket terminations. Suitable for chassis mounting with our jack posts.
Order Code   1 10+ 25+
109-023 23 Way D Plug - Solder Bucket 0.60 0.54 0.48



25 Way D Plug (Male) - Solder Bucket 25 Way D Socket (Female) - Solder Bucket
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder


Subject to technical modifications.
Standard 25-way 'D' Type connectors with solder bucket terminations. Suitable for cable mounting with our range of covers or for chassis mounting with our jack posts.
Order Code   1 10+ 25+
109-012 25 Way D Plug - Solder Bucket 0.25 0.17 0.15
109-015 25 Way D Socket - Solder Bucket 0.35 0.24 0.21



15 Way High Density D Plug (Male) - Solder Bucket 15 Way High Density D Socket (Female) - Solder Bucket
Specifications:
Contacts Gold-plated
Body Metal
Connection Solder


Subject to technical modifications.
High Density 15-way 'D' Type connectors with solder bucket terminations. Suitable for cable mounting with our range of covers or for chassis mounting with our jack posts.
Order Code   1 10+ 25+
109-038 15 Way High Density D Plug - Solder Bucket 0.42 0.35 0.28
109-041 15 Way High Density D Socket - Solder Bucket 0.36 0.30 0.24



9 Way Plastic D Cover - Grey 15 Way Plastic D Cover - Grey 25 Way Plastic D Cover - Grey
Specifications:
Body Plastic




Subject to technical modifications.
'D' Covers for 9, 15 and 25-way solder bucket connectors.
Order Code   1 10+ 25+
109-120 9 Way Plastic D Cover - Grey 0.27 0.18 0.16
109-121 9 Way Plastic D Cover - Black 0.28 0.20 0.16
109-130 15 Way Plastic D Cover - Grey 0.30 0.20 0.18
109-150 25 Way Plastic D Cover - Grey 0.29 0.17 0.15
109-151 25 Way Plastic D Cover - Black 0.29 0.17 0.15



8mm Jack Post for D Connectors 13mm Jack Post for D Connectors
Specifications:
Body Nickel-Plated



Size 8 and 13mm
Subject to technical modifications.
Jack posts, used when mounting solder bucket 'D' type connectors into a panel or case.
Order Code   1 10+ 25+
109-100 8mm Jack Post for D Connectors 0.36 0.27 0.18
109-105 13mm Jack Post for D Connectors 0.52 0.39 0.26



9 Way D Plug (Male) - IDC Termination 9 Way D Socket (Female) - IDC Termination
Specifications:
Contacts Gold-plated
Body Plastic
Connection IDC


Subject to technical modifications.
Insulation Displacement Connection (IDC) type 9-way 'D' type plugs and sockets. Designed to fit straight on to ribbon cable.
Order Code   1 10+ 25+
109-030 9 Way D Plug - IDC Termination 1.08 0.97 0.86
109-034 9 Way D Socket - IDC Termination 0.93 0.74 0.67



15 Way D Plug (Male) - IDC Termination 15 Way D Socket (Female) - IDC Termination
Specifications:
Contacts Gold-plated
Body Plastic
Connection IDC


Subject to technical modifications.
Insulation Displacement Connection (IDC) type 15-way 'D' type plugs and sockets. Designed to fit straight on to ribbon cable.
Order Code   1 10+ 25+
109-031 15 Way D Plug - IDC Termination 1.30 1.04 0.94
109-035 15 Way D Socket - IDC Termination 1.32 1.19 1.07



25 Way D Plug (Male) - IDC Termination 25 Way D Socket (Female) - IDC Termination
Specifications:
Contacts Gold-plated
Body Plastic
Connection IDC


Subject to technical modifications.
Insulation Displacement Connection (IDC) type 25-way 'D' type plugs and sockets. Designed to fit straight on to ribbon cable.
Order Code   1 10+ 25+
109-032 25 Way D Plug - IDC Termination 1.10 0.99 0.88
109-036 25 Way D Socket - IDC Termination 1.13 0.91 0.82

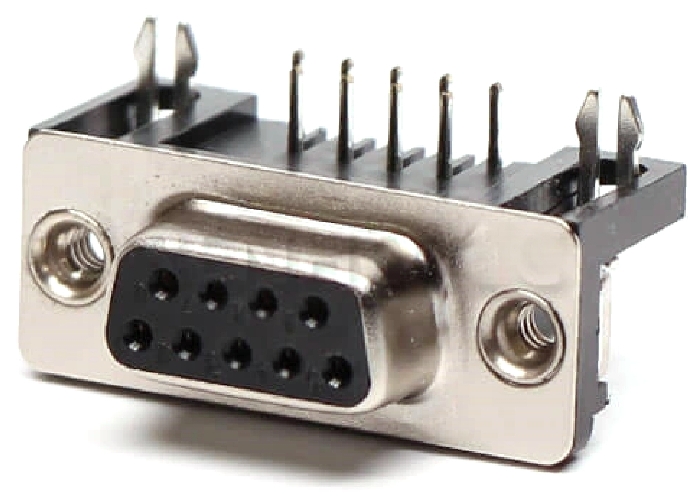

9 Way D Plug (Male) - PCB 90° 9 Way D Socket (Female) - PCB 90°
Specifications:
Contacts Gold-plated
Body Plastic
Connection Solder


Subject to technical modifications.
Printed circuit board mounting 9-way 'D' plugs and sockets. Supplied with jack posts.
Order Code   1 10+ 25+
109-300 9 Way D Plug - PCB 90° 0.35 0.28 0.25
109-350 9 Way D Socket - PCB 90° 0.33 0.30 0.26



15 Way D Plug (Male) - PCB 90° 15 Way D Socket (Female) - PCB 90°
Specifications:
Contacts Gold-plated
Body Plastic
Connection Solder


Subject to technical modifications.
Printed circuit board mounting 15-way 'D' plugs and sockets. Supplied with jack posts.
Order Code   1 10+ 25+
109-305 15 Way D Plug - PCB 90° 0.38 0.30 0.27
109-355 15 Way D Socket - PCB 90° 0.32 0.21 0.19



25 Way D Plug (Male) - PCB 90° 25 Way D Socket (Female) - PCB 90°
Specifications:
Contacts Gold-plated
Body Plastic
Connection Solder


Subject to technical modifications.
Printed circuit board mounting 25-way 'D' plugs and sockets. Supplied with jack posts.
Order Code   1 10+ 25+
109-315 25 Way D Plug - PCB 90° 0.43 0.34 0.31
109-365 25 Way D Socket - PCB 90° 0.50 0.40 0.36



15 Way High Density D Plug (Male) - PCB 90° 15 Way High Density D Socket (Female) - PCB 90°
Specifications:
Contacts Gold-plated
Body Plastic
Connection Solder


Subject to technical modifications.
Printed circuit board mounting High density 15-way 'D' plugs and sockets. Supplied with jack posts.
Order Code   1 10+ 25+
109-358 15 Way High Density D Plug - PCB 90°
109-360 15 Way High Density D Socket - PCB 90° 0.58 0.52 0.46
