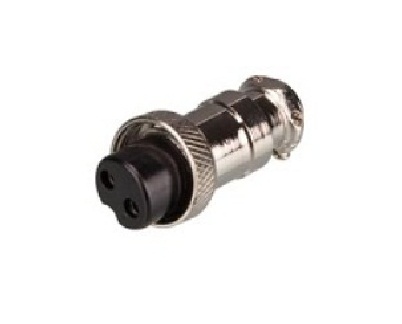

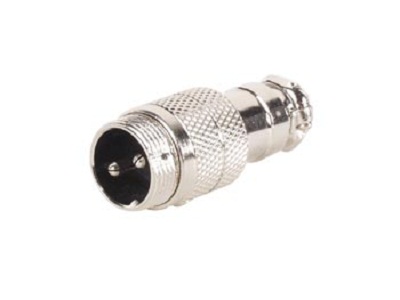

2 Way Locking Metal Line Plug 2 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
2-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-042 2 Way Locking Metal Line Plug 1.01 0.81 0.73
108-242 2 Way Locking Metal Line Socket 0.59 0.47 0.42



2 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
2-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-442 2 Way Locking Metal Chassis Plug 0.61 0.49 0.44

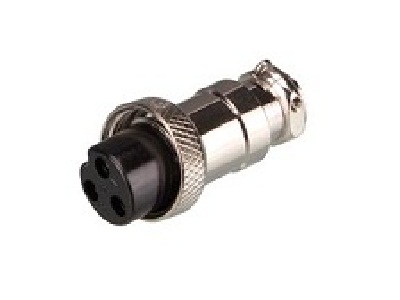

3 Way Locking Metal Line Plug 3 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
3-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-043 3 Way Locking Metal Line Plug 1.04 0.83 0.75
108-243 3 Way Locking Metal Line Socket 0.72 0.58 0.52



3 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
3-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-443 3 Way Locking Metal Chassis Plug 0.63 0.50 0.45

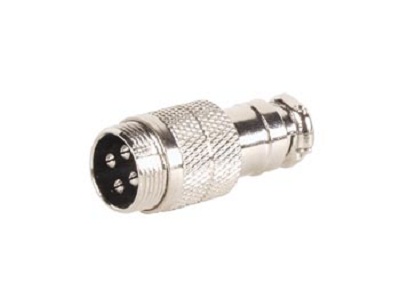

4 Way Locking Metal Line Plug 4 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
4-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-044 4 Way Locking Metal Line Plug 1.08 0.86 0.78
108-244 4 Way Locking Metal Line Socket 0.67 0.54 0.48

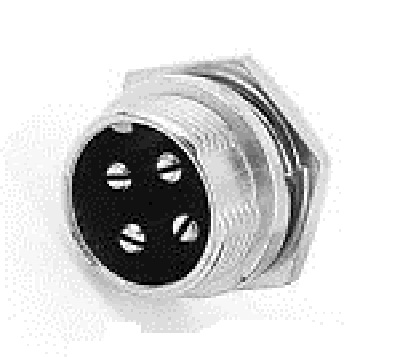

4 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
4-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-444 4 Way Locking Metal Chassis Plug 0.68 0.54 0.49

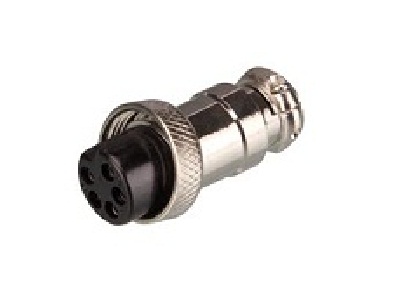

5 Way Locking Metal Line Plug 5 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
5-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-045 5 Way Locking Metal Line Plug 1.22 0.97 0.87
108-245 5 Way Locking Metal Line Socket 0.86 0.68 0.62



5 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
5-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-445 5 Way Locking Metal Chassis Plug 0.77 0.61 0.55

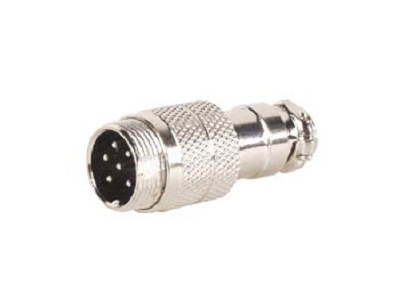

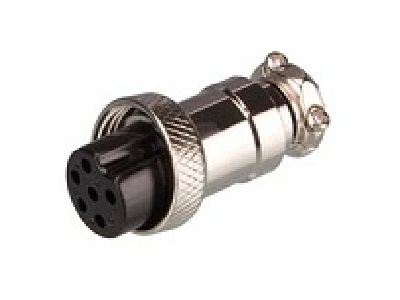

6 Way Locking Metal Line Plug 6 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
6-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-046 6 Way Locking Metal Line Plug 1.31 1.05 0.95
108-246 6 Way Locking Metal Line Socket 0.90 0.72 0.65

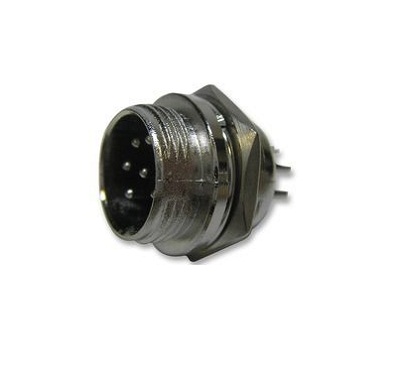

6 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
6-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-446 6 Way Locking Metal Chassis Plug 0.86 0.68 0.62

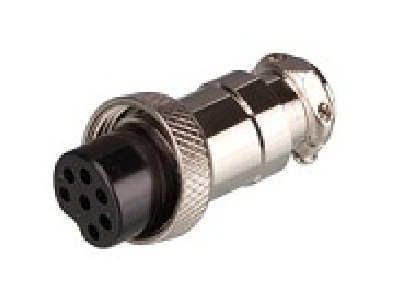

7 Way Locking Metal Line Plug 7 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
7-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-047 7 Way Locking Metal Line Plug 1.35 1.08 0.97
108-247 7 Way Locking Metal Line Socket 1.01 0.81 0.73

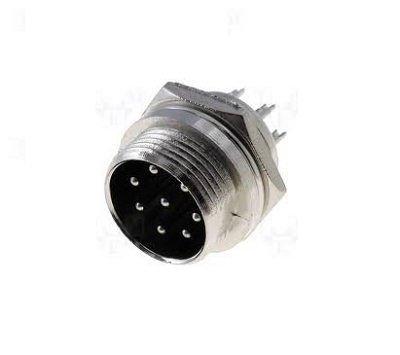

7 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
7-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-447 7 Way Locking Metal Chassis Plug 0.90 0.72 0.65

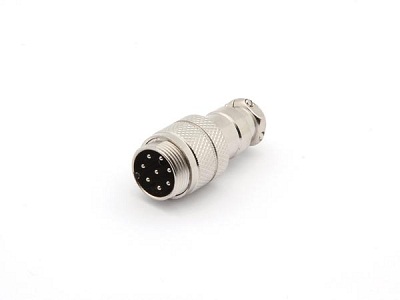

8 Way Locking Metal Line Plug 8 Way Locking Metal Line Socket
Specifications:
Contacts Nickel-Plated
Body Metal
Connection Solder


Subject to technical modifications.
8-pole Multi-Pin connector. The line socket is fitted with locking ring for secure connection to either chassis plug or line plug. Cable is secured by cable clamp.
Order Code   1 10+ 25+
108-048 8 Way Locking Metal Line Plug 1.44 1.15 1.04
108-248 8 Way Locking Metal Line Socket 1.02 0.82 0.74

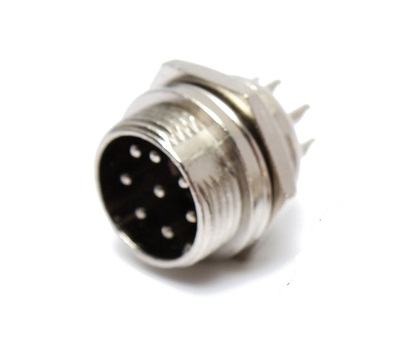

8 Way Locking Metal Chassis Plug
Specifications:
Contacts Nickel-plated
Connection Solder
Body Metal
Panel Cut-out 15mmØ

Subject to technical modifications.
8-pole Multi-Pin male chassis connectors with external thread for locking ring.
Order Code   1 10+ 25+
108-448 8 Way Locking Metal Chassis Plug 1.01 0.81 0.73
