Neutrik NL2FC 2 Pole Speakon Plug
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating A
Cable Size 6-10mmØ

Subject to technical modifications.

Neutrik Connecting the World

Neutrik 2 pole Speakon plug with latch ring. Suitable for PA and Disco speaker leads.
Order Code   1 10+
091-020 Neutrik NL2FC 2 Pole Speakon Plug 1.71 1.54



Neutrik NL2MP 2 Pole Speakon Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder/Crimp
Current Rating A
Dimensions mm
Panel Cut out mmØ
Subject to technical modifications.

Neutrik Connecting the World

Neutrik 2 pole Speakon chassis socket. Suitable for installation in to panels and cabinets.
Order Code   1 10+
091-120 Neutrik NL2MP 2 Pole Speakon Chassis Socket 1.25 1.00



Professional Speaker Plug Professional Speaker Socket
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating A
Cable Size 6-10mmØ

Subject to technical modifications.



Professional 4 Pole speaker connectors, compatible with sockets found on imported sound equipment, particular speaker cabinets. Compatible with "SPEAKON®" style connectors.
Order Code   1 10+ 25+
091-045 4 Pole Professional Speaker Plug 1.98 1.75 1.58
091-115 4 Pole Professional Speaker Socket 2.10 1.85 1.68



4 Pole Speaker Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder/Crimp
Current Rating 240v 6A
Dimensions 25 x 30mm
Panel Cut out mmØ
Subject to technical modifications.



Professional 4 Pole panel mounting speaker socket. Compatible with "SPEAKON®" style connectors.
Order Code   1 10+ 25+
091-140 4 Pole Speaker Chassis Socket 1.00 0.85 0.80



Neutrik NL4FX 4 Pole Speakon Plug
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating 240v 6A
Cable Size 6-10mmØ

Subject to technical modifications.

Neutrik Connecting the World

Neutrik 4 pole Speakon plug with latch lock. Suitable for professional PA speaker leads.
Order Code   1 10+
091-040 Neutrik NL4FX 4 Pole Speakon Plug 2.70 2.48



Neutrik NL4MP 4 Pole Speakon Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder/Crimp
Current Rating 240v 6A
Dimensions 25 x 30mm
Panel Cut out mmØ
Subject to technical modifications.

Neutrik Connecting the World

Neutrik 4 pole Speakon chassis socket. Suitable for high power PA speaker cabinets.
Order Code   1 10+
091-140 Neutrik NL4MP 4 Pole Speakon Chassis Socket 1.35 1.05



Neutrik NL4MPR 4 Pole Round Speakon Chassis Socket
Specifications:
Contacts Nickel-plated
Connection Solder/Crimp
Current Rating A
Dimensions 51mmØ
Panel Cut out mmØ
Subject to technical modifications.

Neutrik Connecting the World

Neutrik 4 pole Speakon chassis socket. (Round hole fixing) Suitable for high power PA speaker cabinets.
Order Code   1 10+
091-145 Neutrik NL4MPR 4 Pole Round Speakon Chassis Socket 2.80 2.22



Neutrik NL8FC 8 Pole Speakon Plug
Specifications:
Contacts Nickel-plated
Connection Screw
Current Rating A
Cable Size 8-20mmØ

Subject to technical modifications.

Neutrik Connecting the World

Neutrik 4 pole Speakon plug with latch lock. Suitable for professional PA speaker leads.
Order Code   1 10+
091-080 Neutrik NL8FC 8 Pole Speakon Plug 6.99 6.45



Specifications:
Contacts Nickel-plated
Connection Solder/Crimp
Current Rating A
Dimensions 38 x 38mm
Panel Cut out mmØ
Subject to technical modifications.

Neutrik Connecting the World

Neutrik 8 pole Speakon chassis socket. (Round hole fixing) Suitable for high power PA speaker cabinets.
Order Code   1 10+
091-185 Neutrik 8 Pole Speakon Round Chassis Socket NL8MPR 4.85 4.40

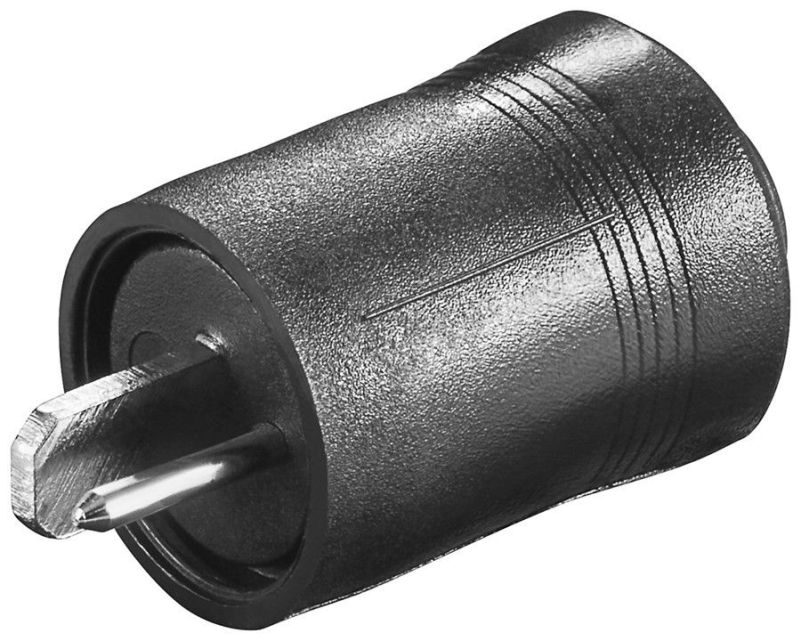

2 Pin DIN 90° Plug Black - Screw Terminals 2 Pin DIN 90° Plug Red - Screw Terminals
Specifications:
Contacts Nickel-plated
Connection Screw



Subject to technical modifications.



Low profile 2-Pin DIN style plug, typically used in the domestic Hi-Fi market. Available in Red and Black.
Order Code   1 10+ 25+
078-020 2 Pin DIN 90° Plug Black - Screw Terminals 0.25 0.22 0.18
078-022 2 Pin DIN 90° Plug Red - Screw Terminals 0.25 0.22 0.18



2 Pin DIN 90° Low Profile Car Plug - Solder
Specifications:
Contacts Nickel-plated
Connection Screw
Cable Size 4 x 2mm


Subject to technical modifications.



2-Pin Speaker Plug, the body of the plug can be rotated in 45º steps around the housing, ideal for car radio systems.
Order Code   1 10+ 25+
078-015 2 Pin DIN 90° Low Profile Car Plug - Solder 0.28 0.24 0.20



2 Pin DIN Line Socket - Solder
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Cable Size 4 x 2mm

Subject to technical modifications.



2-Pin DIN in line socket suitable for mating with any 2-pin plug
Order Code   1 10+ 25+
078-011 2 Pin DIN Line Socket - Solder 0.21 0.18 0.15



2 Pin DIN Chassis Socket
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Panel Cut out mmØ

Subject to technical modifications.



Chassis mounting 2-Pin Speaker socket.
Order Code   1 10+ 25+
078-012 2 Pin DIN Chassis Socket, 2 Hole Fix 0.21 0.18 0.15



Single Pair Spring Loaded Speaker Terminals
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Dimensions 51 x 20mm

Subject to technical modifications.



A pair of red and black spring terminals on a plastic escutcheon plate.
Order Code   1 10+ 25+
062-110 Single Pair Spring Loaded Speaker Terminals 0.38 0.34 0.30

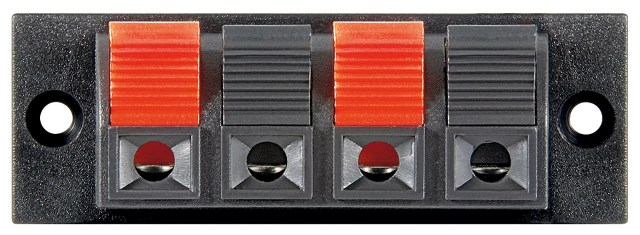

Twin Pair Spring Loaded Speaker Terminals
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Dimensions 66 x 18mm

Subject to technical modifications.



Two pairs of red and black spring terminals on a plastic escutcheon plate.
Order Code   1 10+ 25+
062-115 Twin Pair Spring Loaded Speaker Terminals 0.42 0.35 0.28



Recess dish with Spring Loaded Speaker Terminals
Specifications:
Contacts Nickel-plated
Body Plastic
Connection Solder
Dimensions 76mmØ

Subject to technical modifications.



A pair of red and black spring terminals on a round plastic recess plate. Maximum wire size 2.5mm².
Order Code   1 10+ 25+
062-115 Recess dish with Spring Loaded Speaker Terminals 0.60 0.50 0.40
