Telecom Connectors

Telephone Plug
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable 4-Core


Standard replacement plug, used on British telephone equipment.
Order Code   1 10+ 25+
114-100 4 Way IDC Telephone Plug 0.28 0.23 0.19



RJ9 Plug
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable Flat


Modular 4P4C IDC plug (RJ9), commonly used on telephone handsets leads.
Order Code   1 10+ 25+
114-610 4P4C Modular IDC Plug (RJ9/Handset) 0.24 0.16 0.12



RJ11 Plug
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable Flat


Modular 6P4C IDC plug (RJ11), commonly used on Modems and Fax Machines.
Order Code   1 10+ 25+
114-615 6P4C Modular IDC Plug (RJ11-4) 0.22 0.13 0.09



RJ12 Plug
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable mmØ


Modular 6P6C IDC plug (RJ12), used on European telecommunication equipment.
Order Code   1 10+ 25+
114-620 6P6C Modular IDC Plug (RJ12) 0.28 0.21 0.14



RJ45 Plug - Round Cable
Specifications:
Body Material Natural Polycarbonate
Contacts Gold-Plated
Connection IDC
Cable Round


Modular 8P8C IDC Plug (RJ45) suitable for Round cable.
Order Code   1 10+ 25+
114-623 RJ45 Plug - Round Cable 0.32 0.22 0.16



RJ45 Plug - Solid Core Cable
Specifications:
Body Material Natural Polycarbonate
Contacts Gold-Plated
Connection IDC
Cable Solid Core


Modular 8P8C IDC Plug (RJ45) suitable for cable with solid conductors.
Order Code   1 10+ 25+
114-625 RJ45 Plug - Solid Cable 0.20 0.14 0.10

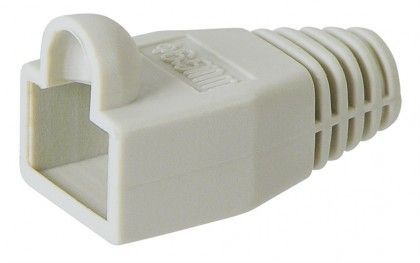

Coloured boots for RJ45 plugs
Specifications:
Body Material Plastic




Soft plastic boots for RJ45 crimp-on plugs, available in five colours.
Order Code   1 10+ 25+

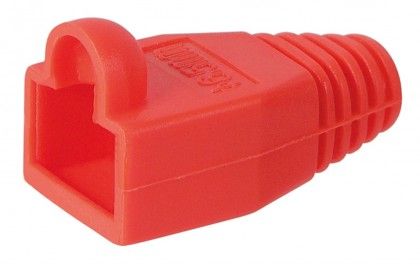

114-632 RJ45 Non Snag Boot Red 0.08 0.06 0.04
114-634 RJ45 Non Snag Boot Yellow 0.08 0.06 0.04
114-635 RJ45 Non Snag Boot Green 0.08 0.06 0.04

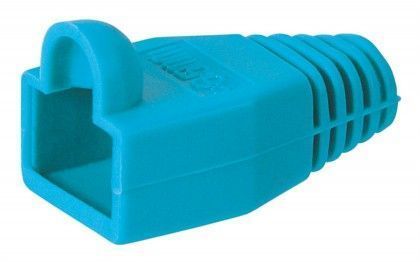

114-636 RJ45 Non Snag Boot Blue 0.08 0.06 0.04
114-638 RJ45 Non Snag Boot Beige 0.08 0.06 0.04



RJ10 PCB Socket
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable mmØ


Modular RJ10 4P4C Printed Circuit Board Socket. Will accept (114-610) handset plugs.
Order Code   1 10+ 25+
114-612 RJ10 4P4C Modular PCB Socket 0.60 0.48 0.43



RJ12 PCB Socket
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable mmØ


Modular RJ13 6P4C Printed Circuit Board Socket. Will accept (114-615) RJ11 4-contact plugs.
Order Code   1 10+ 25+
114-617 RJ12 6P4C Modular PCB Socket 0.57 0.48 0.38



RJ12 PCB Socket
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable mmØ


Modular RJ12 6P6C Printed Circuit Board Socket. Will accept (114-620) RJ12 6-contact plugs
Order Code   1 10+ 25+
114-622 RJ12 6P6C Modular PCB Socket 0.54 0.45 0.36

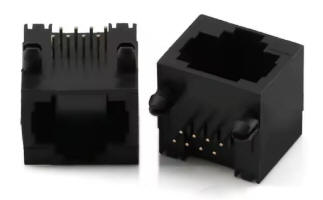

RJ45 PCB Socket
Specifications:
Body Material Plastic
Contacts Plated
Connection IDC
Cable mmØ


Printed Circuit Board mounting RJ45 socket. For suitable plugs use 114-625.
Order Code   1 10+ 25+
114-627 RJ45 8P8C Modular PCB Socket 0.63 0.53 0.42
