ABS and Aluminium Encosures
Specifications:
Material ABS and Aluminium
TKP1B 85 x 56 x 36mm
TKP2B 110 x 70 x 48mm
TKP3B 160 x 96 x 61mm
TKP4B 215 x 130 x 77mm
Subject to technical modifications.
High quality professional instrument cases which offer a practical, economical packaging solution for small to medium-sized electronic devices. The design permits easy machining and the top panel is well suited for the installation of meters, readouts, etc. Internal guides enable PCB,s to be fitted.
Order Code   1 10+ 25+
401-801 TKP1B ABS and Aluminium Enclosure 2.22 2.00 1.89
401-802 TKP2B ABS and Aluminium Enclosure 2.78 2.50 2.36
401-803 TKP3B ABS and Aluminium Enclosure 4.25 3.83 3.64
401-804 TKP4B ABS and Aluminium Enclosure 6.08 5.47 5.17



Two Part Grey Enclosure
Specifications:
Material High Impact Polystyrene
TKAUS11G 198 x 178 x 36mm
TKAUS12G 198 x 178 x 54mm
TKAUS22G 198 x 178 x 72mm
TKAUS23G 198 x 178 x 90mm
TKAUS33G 198 x 178 x 108mm
Subject to technical modifications.
This range of enclosure is ideally suited to a variety of electronic desktop applications. The enclosures have a vented cover and base, front and rear panels in 1mm-thick aluminium. The top and bottom have integral PCB guides and mounting studs. Finished with a light grey matt surface, eight screws close the housing.
Order Code   1 10+ 25+
401-810 TKAUS11G Two Part Grey Instrument Case 6.30 5.67 5.36
401-812 TKAUS12G Two Part Grey Instrument Case 8.75 7.88 7.44
401-814 TKAUS22G Two Part Grey Instrument Case 10.96 9.86 9.32
401-816 TKAUS23G Two Part Grey Instrument Case 11.47 10.32 9.75
401-818 TKAUS33G Two Part Grey Instrument Case 12.30 11.07 10.46

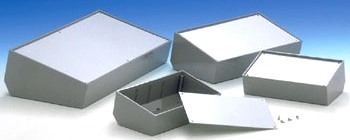

ABS with Aluminium Top Panel
Specifications:
Material ABS and Aluminium
TK362G 161 x 97 x 61mm
TK363G 216 x 130 x 77mm
TK364G 311 x 170 x 89mm
Subject to technical modifications.
Small ABS consoles ideally suited to a wide range of bench and desktop applications. The enclosures have integral PCB guides and mounting studs, sloping (15°)1mm thick aluminium panel. Glossy dark grey surface finish, lid secures by four or six screws.
Order Code   1 5+ 10+
401-820 TK362G ABS Console with Aluminium Top Panel 6.20 5.58 5.27
401-822 TK363G ABS Console with Aluminium Top Panel 9.36 8.42 7.96
401-824 TK364G ABS Console with Aluminium Top Panel 14.88 13.39 12.65
