40 x 40mm Cooling Fan
Specifications:
Voltage 10.2 - 13.8Vdc
Current 0.09A
Speed 5000rpm
Maximum Airflow 0.18m³/min
Bearing Sleeve
Dimensions 40 x 40 x 10mm
Subject to technical modifications.
40mm plastic cased cooling fan with sleeve bearing. Noise level at 1m 25db
Order Code   1 5+ 10+
140-105 12Vdc 40 x 40mm Cooling Fan 4.55 3.25 2.93



60 x 60mm Cooling Fan
Specifications:
Voltage 12Vdc
Current 0.11A
Speed 3200rpm
Maximum Airflow 16m³/hr
Bearing Sleeve
Dimensions 60 x 60 x 25mm
Subject to technical modifications.
60mm plastic cased cooling fan with sleeve bearing. Noise level at 1m 25db
Order Code   1 5+ 10+
140-107 12Vdc 60 x 60mm Cooling Fan 4.52 3.23 2.58

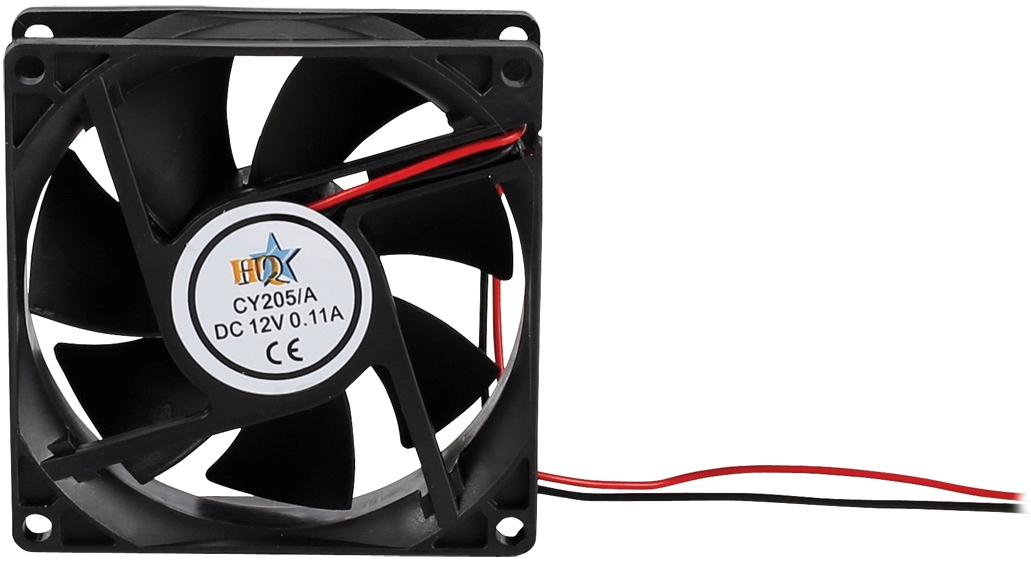

80 x 80mm Cooling Fan
Specifications:
Voltage 12Vdc
Current 0.16A
Speed 2800rpm
Maximum Airflow 27m³/hr
Bearing Sleeve
Dimensions 80 x 80 x 25mm
Subject to technical modifications.
80mm plastic cased cooling fan with sleeve bearing. Noise level at 1m 32db
Order Code   1 5+ 10+
140-109 12Vdc 80 x 80mm Cooling Fan 4.23 3.38 3.04



80 x 80mm Cooling Fan
Specifications:
Voltage 24Vdc
Current 0.17A
Speed 3000rpm
Maximum Airflow 61m³/hr
Bearing Sleeve
Dimensions 80 x 80 x 25mm
Subject to technical modifications.
80mm plastic cased cooling fan with sleeve bearing. Noise level at 1m 34db.
Order Code   1 5+ 10+
140-129 24Vdc 80 x 80mm Cooling Fan 8.43 6.74 6.07



12Vdc 92 x 92mm Cooling Fan
Specifications:
Voltage 12Vdc
Current 0.23A
Speed 3200rpm
Maximum Airflow 83m³/hr
Bearing Sleeve
Dimensions 92 x 92 x 25mm
Subject to technical modifications.
92mm plastic cooling fan with sleeve bearing. Noise level at 1m 33db. Ideal for replacement cooling fan in light effects.
Order Code   1 5+ 10+
140-110 12Vdc 92 x 92mm Cooling Fan 6.03 4.82 5.43



120 x 120mm Cooling Fan
Specifications:
Voltage 12Vdc
Current 0.25A
Speed 2500rpm
Maximum Airflow 65m³/hr
Bearing Sleeve
Dimensions 120 x 120 x 25mm
Subject to technical modifications.
120mm plastic cased cooling fan with sleeve bearing. Noise level at 1m 46db
Order Code   1 5+ 10+
140-111 12Vdc 120 x 120mm Cooling Fan 7.65 5.10 4.59



80 x 80mm Cooling Fan
Specifications:
Voltage 230Vac
Current 0.08A
Speed 2500 - 3000rpm
Maximum Airflow 24m³/hr
Bearing Sleeve
Dimensions 80 x 80 x 25mm
Subject to technical modifications.
80mm die-cast aluminium cased cooling fan with sleeve bearing. Noise level at 1m 33db
Order Code   1 5+ 10+
140-009 230Vac 80 x 80mm Cooling Fan 8.36 7.52 6.69



120 x 120mm Cooling Fan
Specifications:
Voltage 230Vac
Current 0.12A
Speed 2550 - 2900rpm
Maximum Airflow 176m³/hr
Bearing Sleeve
Dimensions 120 x 120 x 38mm
Subject to technical modifications.
120mm die-cast aluminium cased cooling fan with thermoplastic blade, sleeve bearing. Noise level at 1m 45db
Order Code   1 5+ 10+
140-011 230Vac 120 x 120mm Cooling Fan 10.92 9.83 8.74

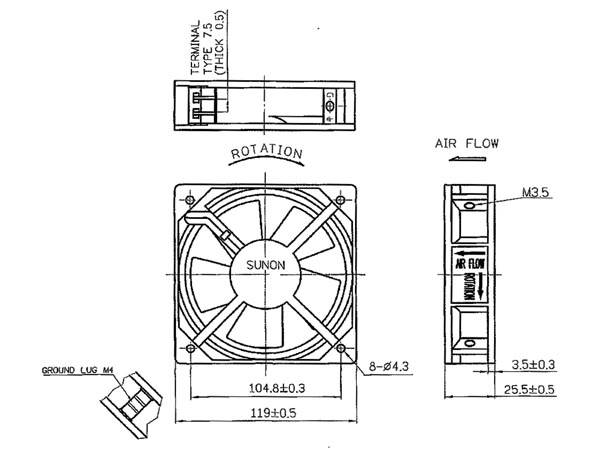

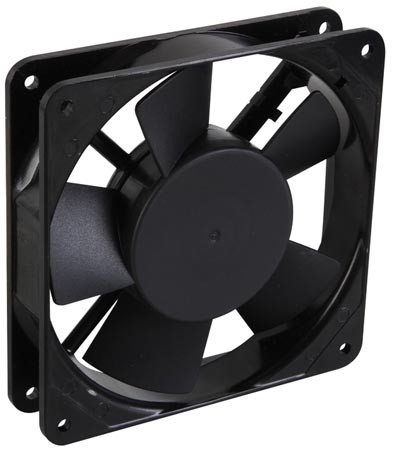

120 x 120mm Cooling Fan
Specifications:
Voltage 230Vac
Current 0.08A
Speed 2300 - 2700rpm
Maximum Airflow 76m³/hr
Bearing Sleeve
Dimensions 120 x 120 x 25mm
Subject to technical modifications.
120mm die-cast aluminium cased cooling fan with thermoplastic blade, sleeve bearing. Noise level at 1m 40db
Order Code   1 5+ 10+
140-015 230Vac 120 x 120mm Cooling Fan 8.36 7.52 6.69



40 x 40mm Finger Guard
Specifications:
Material Steel


Dimensions 40 x 40mm
Subject to technical modifications.
Chrome Plated finger guard for 40mm square cooling fans.
Order Code   1 5+ 10+
140-906 40 x 40mm Cooling Fan Finger Guard 1.13 0.90 0.72



60 x 60mm Finger Guard
Specifications:
Material Steel


Dimensions 60 x 60mm
Subject to technical modifications.
Chrome Plated finger guard for 60mm square cooling fans.
Order Code   1 5+ 10+
140-908 60 x 60mm Cooling Fan Finger Guard 1.03 0.82 0.66



80 x 80mm Finger Guard
Specifications:
Material Steel


Dimensions 80 x 80mm
Subject to technical modifications.
Chrome Plated finger guard for 80mm square cooling fans.
Order Code   1 5+ 10+
140-910 80 x 80mm Cooling Fan Finger Guard 1.18 0.94 0.75



120 x 120mm Finger Guard
Specifications:
Material Steel


Dimensions 120 x 120mm
Subject to technical modifications.
Chrome Plated finger guard for 120mm square cooling fans.
Order Code   1 5+ 10+
140-912 120 x 120mm Cooling Fan Finger Guard 1.58 1.26 1.01
