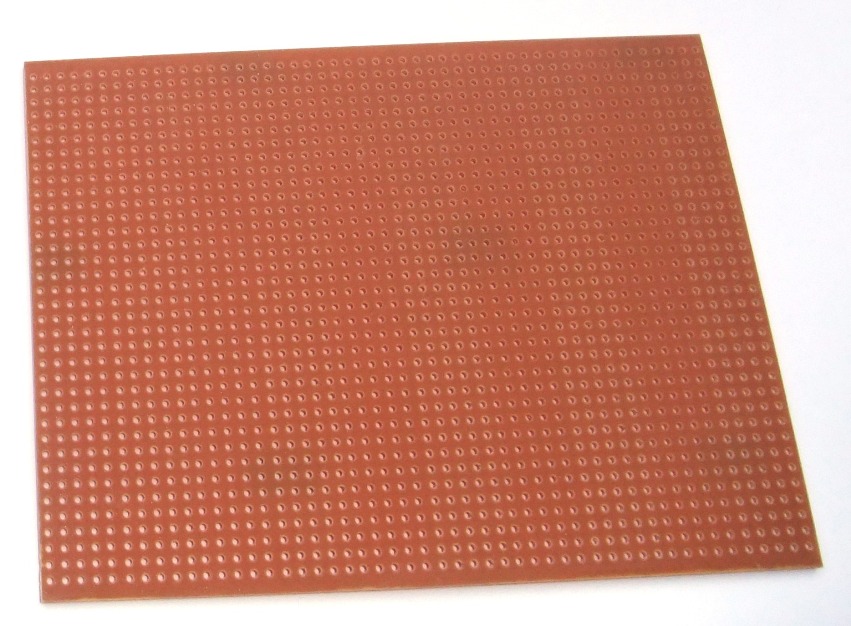

Plain Matrix Board
Specifications:
Material SRBP
Pitch 0.1"
Holes 36 x 50

Dimensions 95 x 127mm
Subject to technical modifications.
Plain Matrix board offers total flexibility for the hard wiring of discrete components, ideal for prototyping, typically of analogue circuits. Fully pierced plain (no copper) matrix board, manufactured from SRBP. Punched on a 0.1” grid.
Order Code   1 5+ 10+
334-110 Matrix Board 95 x 127mm 56 x 50 Holes 0.97 0.86 0.77

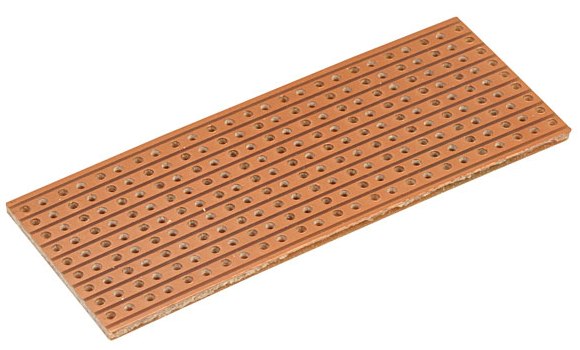

Copper Stripboard
Specifications:
Material SRBP
Pitch 0.1"
25 x 64mm 9 Tracks, 25 Holes
64 x 95mm 24 Tracks, 37 Holes
95 x 127mm 36 Tracks, 50 Holes
95 x 432mm 36 Tracks, 170 Holes
100 x 100mm 39 Tracks, 38 Holes
100 x 500mm 39 Tracks, 199 Holes
119 x 455mm 46 Tracks, 179 Holes
Subject to technical modifications.
General purpose copper stripboard primarily for hard wiring of discrete components, typically in analogue circuits or where a number of common bus or signal lines are required. Manufactured from laminated copper clad board, punched on a 0.1” grid. Readily cut to size for ease of use, copper tracks simply cut to break using our stripboard cutting tool. Tracks run along the length of the board.

Order Code   1 5+ 10+
335-050 Stripboard 25 x 64mm 0.24 0.20 0.16
335-010 Stripboard 64 x 95mm 0.87 0.73 0.58
335-025 Stripboard 95 x 127mm 1.41 1.18 0.94
335-035 Stripboard 95 x 432mm 4.39 3.90 3.51
335-030 Stripboard 100 x 100mm 2.00 1.90 1.80
335-040 Stripboard 100 x 500mm 7.50 7.13 6.75
335-045 Stripboard 119 x 455mm 5.40 4.80 4.32



Copper Stripboard
Specifications:
Material SRBP
Pitch 0.1"
25 x 64mm 9 Tracks, 25 Holes
64 x 95mm 24 Tracks, 37 Holes
95 x 127mm 36 Tracks, 50 Holes
95 x 432mm 36 Tracks, 170 Holes
100 x 100mm 39 Tracks, 38 Holes
100 x 500mm 39 Tracks, 199 Holes
119 x 455mm 46 Tracks, 179 Holes
Subject to technical modifications.
General purpose single sided copper board, punched on a 0.1" pitch. The board is laid out with single individual holes. Suitable for the hard wiring of discrete components

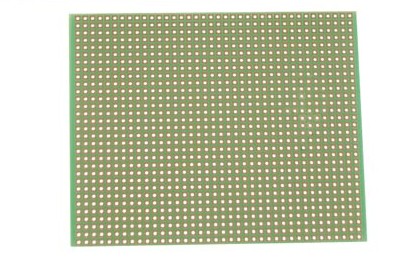

Copper board 80 x 100mm
Order Code   1 5+ 10+
335-120 Copper board 80 x 100mm 1.88 1.69 1.50

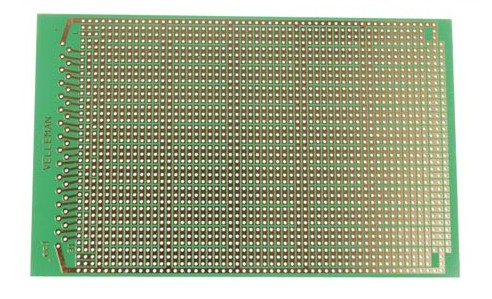

Eurocard 100 x 160mm IC Pattern
Specifications:
Material SRBP
Pitch 0.1"
Holes 1.0mmØ


Dimensions 100 x 160mm
Subject to technical modifications.
Single sided FR-4 SRBP board, punched on a 0.1" pitch. The board is laid out to offer total flexibility for the hard wiring of integrated circuits. Classed as a "Eurocard" the board is compatible with eurodin connectors DIN41617 and DIN41612.
Eurocard 100 x 160mm
Order Code   1 5+ 10+
335-210 Eurocard 100 x 160mm IC Pattern 3.28 2.95 2.62

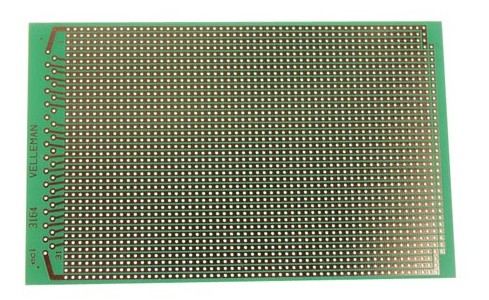

Eurocard 100 x 160mm Stripboard
Specifications:
Material SRBP
Pitch 0.1"
Holes 1.0mmØ


Dimensions 100 x 160mm
Subject to technical modifications.
Single sided FR-4 SRBP board, punched on a 0.1" pitch. The board is laid out with single holes connected by copper strips. For the hard wiring of discrete components. Classed as a "Eurocard" the board is compatible with eurodin connectors DIN41617 and DIN41612.
Eurocard 100 x 160mm
Order Code   1 5+ 10+
335-215 Eurocard 100 x 160mm Stripboard 3.28 2.95 2.62

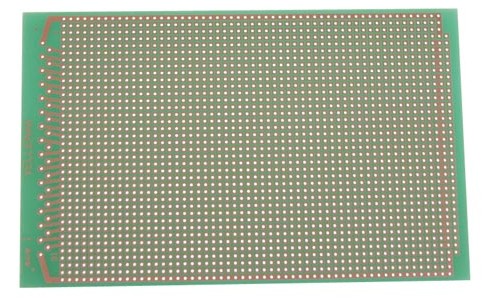

Eurocard 100 x 160mm 1 Hole
Specifications:
Material SRBP
Pitch 0.1"
Holes 1.0mmØ


Dimensions 100 x 160mm
Subject to technical modifications.
Single sided FR-4 SRBP board, punched on a 0.1" pitch. The board is laid out with single individual holes. Suitable for the hard wiring of discrete components. Classed as a "Eurocard" the board is compatible with eurodin connectors DIN41617 and DIN41612.
Eurocard 100 x 160mm
Order Code   1 5+ 10+
335-220 Eurocard 100 x 160mm 1 Hole 3.28 2.95 2.62



Eurocard 100 x 160mm 2 Hole
Specifications:
Material SRBP
Pitch 0.1"
Holes 1.0mmØ


Dimensions 100 x 160mm
Subject to technical modifications.
Single sided FR-4 SRBP board, punched on a 0.1" pitch. The board is laid out with single holes connected together in pairs by tinned pads. Suitable for the hard wiring of discrete components. Classed as a "Eurocard" the board is compatible with eurodin connectors DIN41617 and DIN41612.
Eurocard 100 x 160mm
Order Code   1 5+ 10+

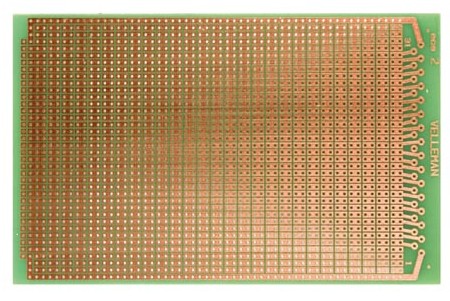

335-225 Eurocard 100 x 160mm 2 Hole 3.28 2.95 2.62



Eurocard 100 x 160mm 3 Hole
Specifications:
Material SRBP
Pitch 0.1"
Holes 1.0mmØ


Dimensions 100 x 160mm
Subject to technical modifications.
Single sided FR-4 SRBP board, punched on a 0.1" pitch. The board is laid out to offer total flexibility for the hard wiring of integrated circuits. Classed as a "Eurocard" the board is compatible with eurodin connectors DIN41617 and DIN41612.
Eurocard 100 x 160mm
Order Code   1 5+ 10+

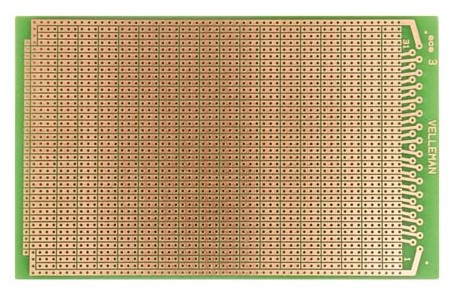

335-230 Eurocard 100 x 160mm 3 Hole 3.28 2.95 2.62

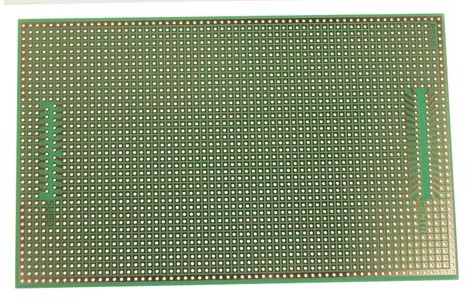

Eurocard 100 x 160mm 1 Hole with 'D' Connector
Specifications:
Material SRBP
Pitch 0.1"
Holes 1.0mmØ


Dimensions 100 x 160mm
Subject to technical modifications.
Single sided FR-4 SRBP board, punched on a 0.1" pitch. The board is laid out with single holes with individual tinned pads for the hard wiring of discrete components. Classed as a "Eurocard" the board is designed to have a 90º 'D' type connector soldered directly on to the board (either end).
Eurocard 100 x 160mm
Order Code   1 5+ 10+
335-240 Eurocard 100 x 160mm 1 Hole with 'D' Connector 3.28 2.95 2.62



Single Sided Terminal Pins
Specifications:
Material Tin Plated


Pin Head 2mmØ
Dimensions 7 x 1mmØ
Subject to technical modifications.
Stripboard Terminal Pins are ideally suited for take off points or used for test clips on PCBs or stripboard. The shoulder of the pin is soldered to the copper track with the pin protruding on the component side. (Supplied 100 per Pack)
Order Code   1 5+ 10+
499-010 Pack of Single Sided Terminal Pins 0.63 0.53 0.42

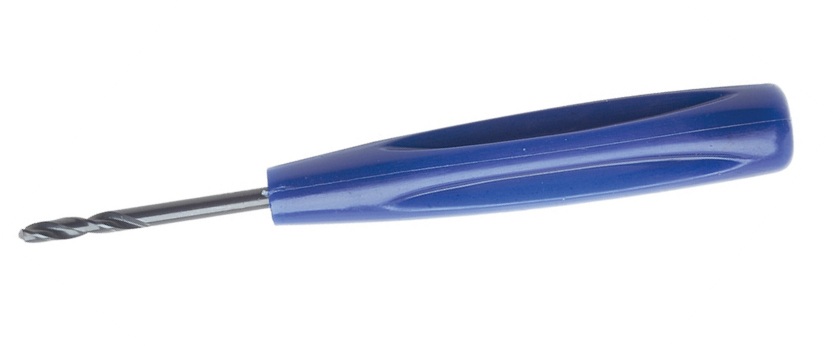

Track cutter
Specifications:




Dimensions mmØ
Subject to technical modifications.
A simple tool used to break copper tracks on our range of stripboard. A single turn will cut the copper track, breaking the electrical path on that track.
Order Code   1 5+ 10+
499-021 Stripboard Track cutter (RoHS Exempt) 1.99 1.66 1.56
